Taper-Lock® Chain Sprocket with Hardened Teeth 06B-1 Simplex (3/8″)

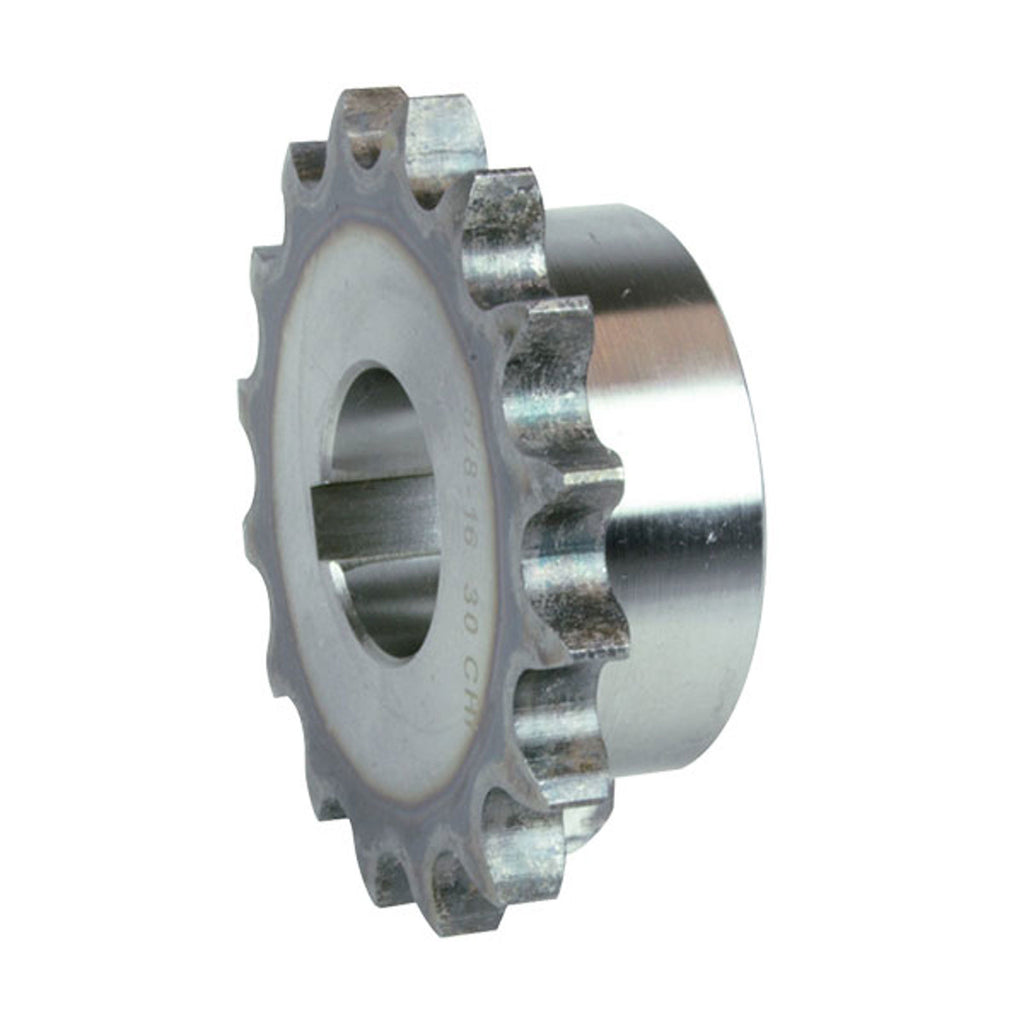

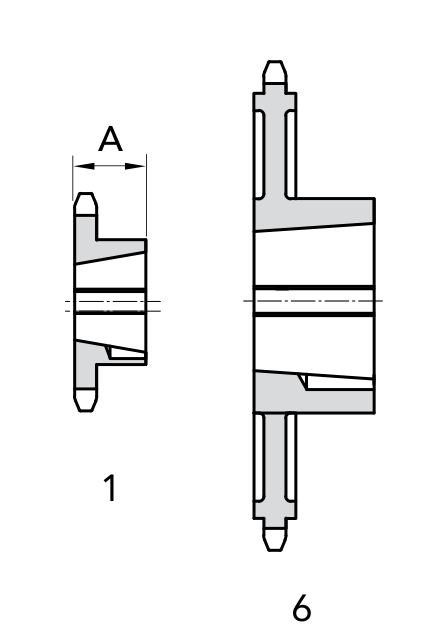

Simplex Taper-Lock® chain sprocket with induction-hardened teeth (HRC 45÷53) for 06B-1 roller chain (3/8″ pitch). Dimensions are shared with the standard steel version; the Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Weight |
|---|---|---|---|---|---|---|---|
18109017 |
17
|
031-17
|
1008
|
1
|
44.5 mm
|
22 mm
|
0.11 kg
|
18109019 |
19
|
031-19
|
1008
|
1
|
46 mm
|
22 mm
|
0.15 kg
|
18109021 |
21
|
031-21
|
1008
|
1
|
46 mm
|
22 mm
|
0.18 kg
|
18109023 |
23
|
031-23
|
1210
|
1
|
62 mm
|
25 mm
|
0.27 kg
|
18109025 |
25
|
031-25
|
1210
|
1
|
63 mm
|
25 mm
|
0.32 kg
|
18109027 |
27
|
031-27
|
1210
|
1
|
60 mm
|
25 mm
|
0.34 kg
|
18109030 |
30
|
031-30
|
1210
|
1
|
63 mm
|
25 mm
|
0.39 kg
|
No products match the selected filters.
Product Information
- Material
- Steel C 45 UNI 5007, teeth induction hardened HRC 45÷53
