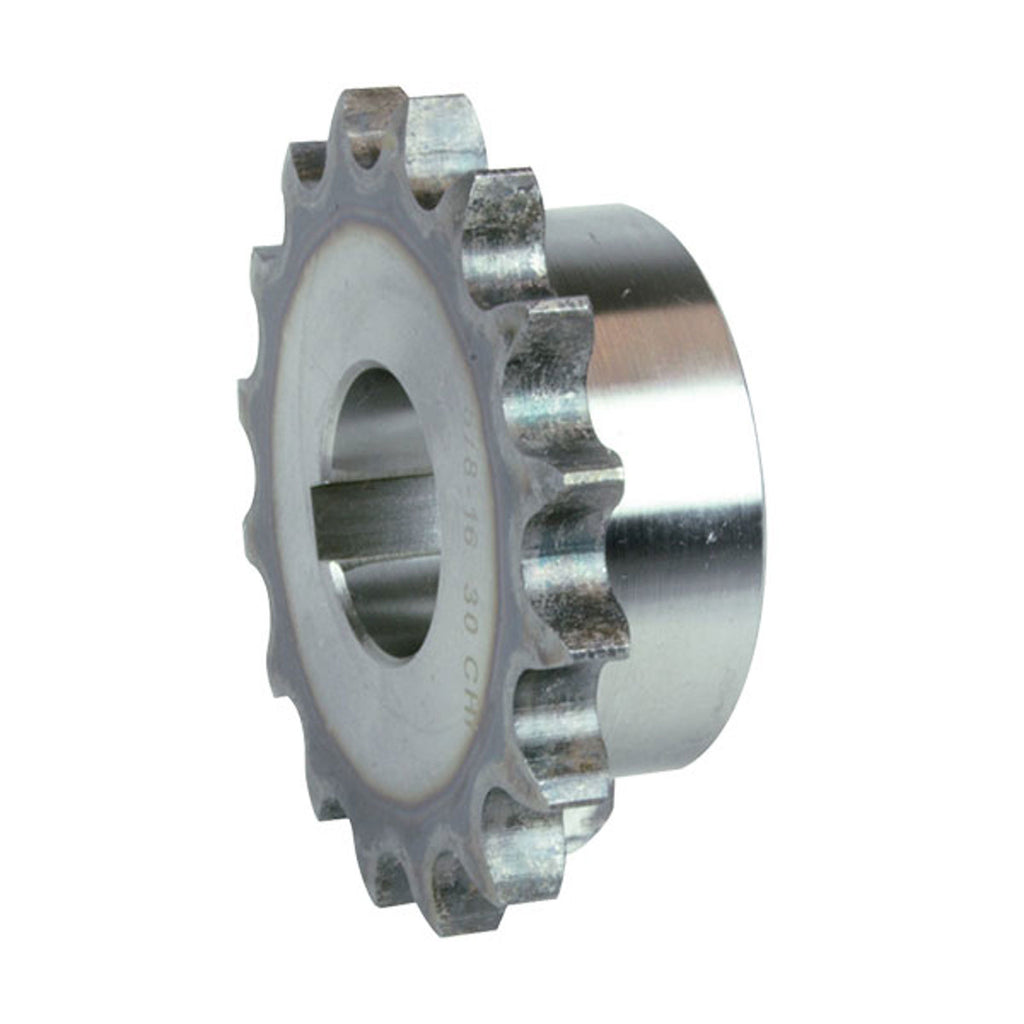

Taper-Lock® Chain Sprocket with Hardened Teeth 08B-1 Simplex (1/2″)

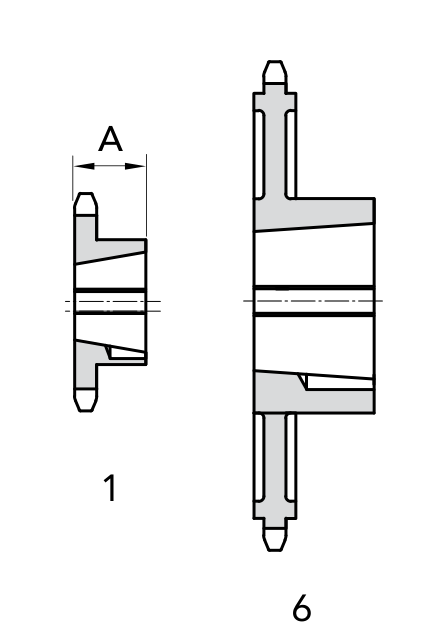

Simplex Taper-Lock® chain sprocket with induction-hardened teeth (HRC 45÷53) for 08B-1 roller chain (1/2″ pitch). Dimensions are shared with the standard steel version; the Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Weight |
|---|---|---|---|---|---|---|---|
18112015 |
15
|
041-15
|
1008
|
1
|
46 mm
|
22 mm
|
0.16 kg
|
18112017 |
17
|
041-17
|
1210
|
1
|
59.5 mm
|
25 mm
|
0.22 kg
|
18112019 |
19
|
041-19
|
1210
|
1
|
63 mm
|
25 mm
|
0.33 kg
|
18112021 |
21
|
041-21
|
1610
|
1
|
71 mm
|
25 mm
|
0.36 kg
|
18112023 |
23
|
041-23
|
1610
|
1
|
76 mm
|
25 mm
|
0.5 kg
|
18112025 |
25
|
041-25
|
1610
|
1
|
76 mm
|
25 mm
|
0.56 kg
|
18112027 |
27
|
041-27
|
1610
|
1
|
76 mm
|
32 mm
|
0.63 kg
|
18112030 |
30
|
041-30
|
2012
|
1
|
90 mm
|
32 mm
|
0.91 kg
|
No products match the selected filters.
Product Information
- Material
- Steel C 45 UNI 5007, teeth induction hardened HRC 45÷53
