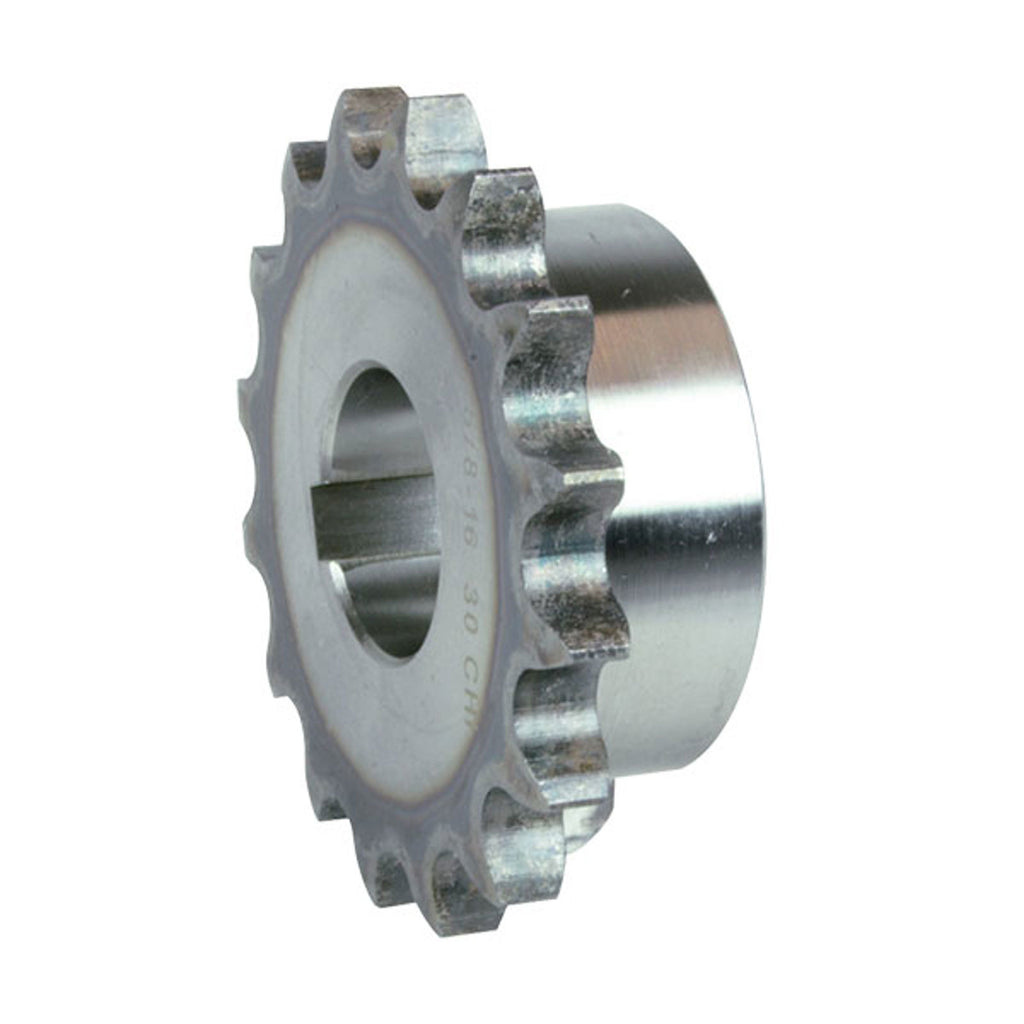

Taper-Lock® Chain Sprocket with Hardened Teeth 10B-1 Simplex (5/8″)

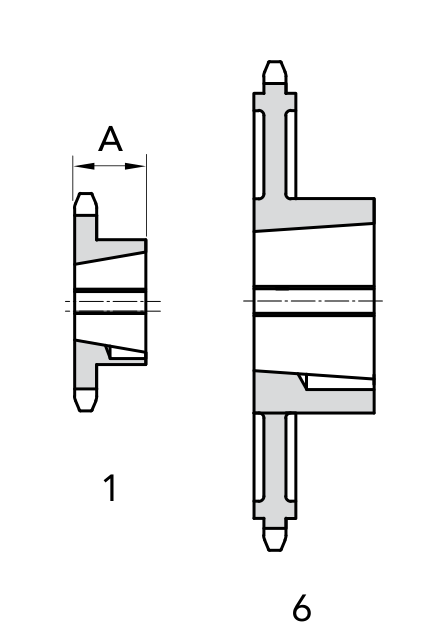

Simplex Taper-Lock® chain sprocket with induction-hardened teeth (HRC 45÷53) for 10B-1 roller chain (5/8″ pitch). Dimensions are shared with the standard steel version; the Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Weight |
|---|---|---|---|---|---|---|---|
18115013 |
13
|
051-13
|
1008
|
1
|
46 mm
|
22 mm
|
0.23 kg
|
18115015 |
15
|
051-15
|
1210
|
1
|
63 mm
|
25 mm
|
0.3 kg
|
18115017 |
17
|
051-17
|
1610
|
1
|
71 mm
|
25 mm
|
0.38 kg
|
18115019 |
19
|
051-19
|
1610
|
1
|
76 mm
|
25 mm
|
0.54 kg
|
18115021 |
21
|
051-21
|
1610
|
1
|
76 mm
|
25 mm
|
0.65 kg
|
18115023 |
23
|
051-23
|
1610
|
1
|
76 mm
|
25 mm
|
0.77 kg
|
18115025 |
25
|
051-25
|
2012
|
1
|
90 mm
|
32 mm
|
1.05 kg
|
18115027 |
27
|
051-27
|
2012
|
1
|
90 mm
|
32 mm
|
1.17 kg
|
18115030 |
30
|
051-30
|
2012
|
1
|
90 mm
|
32 mm
|
1.4 kg
|
No products match the selected filters.
Product Information
- Material
- Steel C 45 UNI 5007, teeth induction hardened HRC 45÷53
