Taper-Lock® Chain Sprocket with Hardened Teeth 12B-1 Simplex (3/4″)

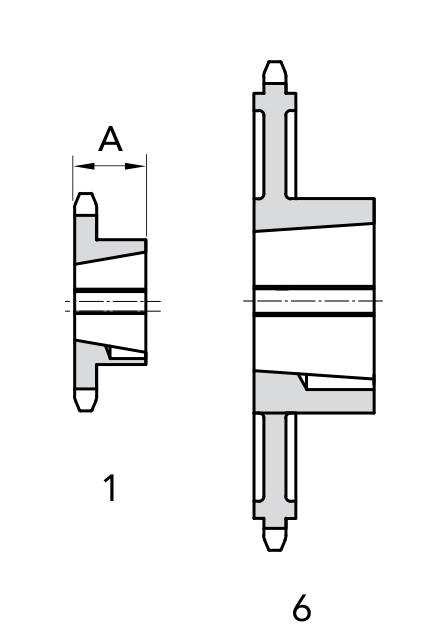

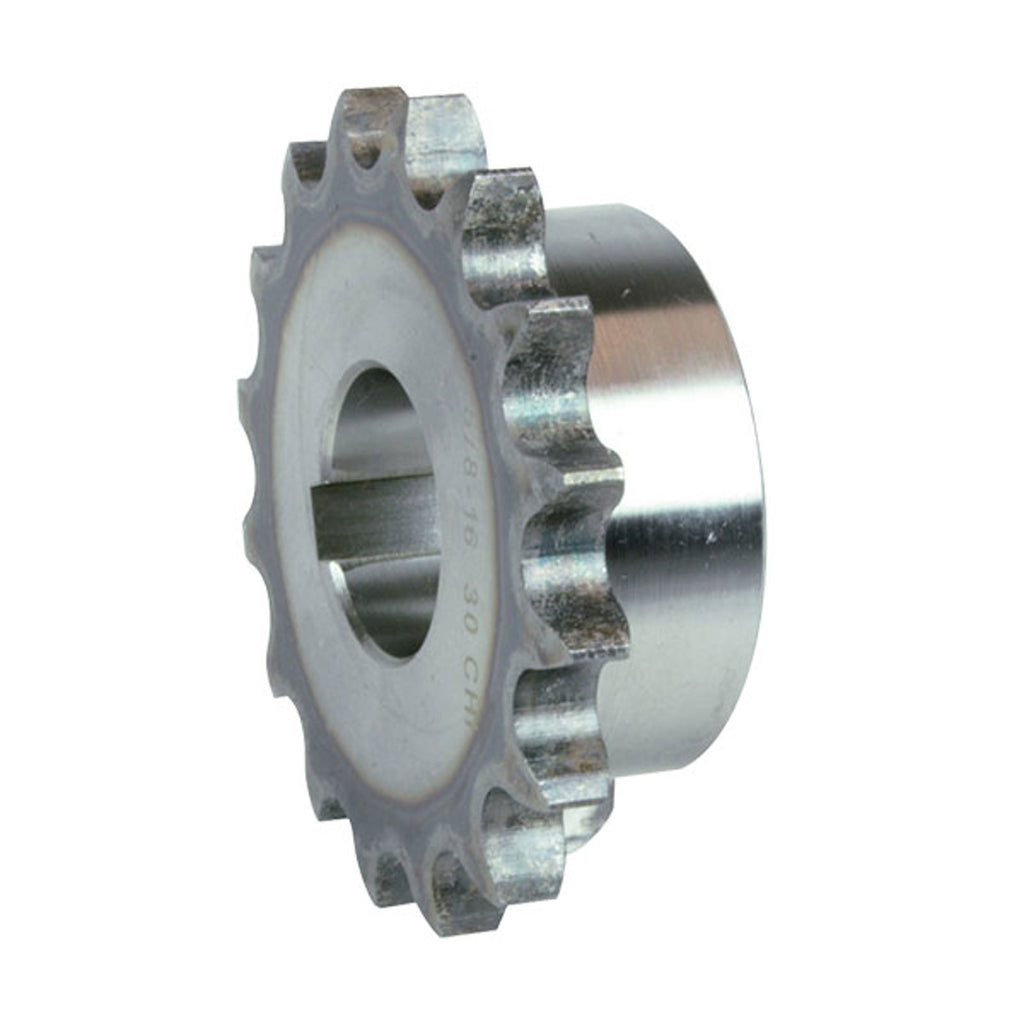

Simplex Taper-Lock® chain sprocket with induction-hardened teeth (HRC 45÷53) for 12B-1 roller chain (3/4″ pitch). Dimensions are shared with the standard steel version; the Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Weight |
|---|---|---|---|---|---|---|---|
18119013 |
13
|
061-13
|
1210
|
1
|
63 mm
|
25 mm
|
0.35 kg
|
18119015 |
15
|
061-15
|
1610
|
1
|
71 mm
|
25 mm
|
0.44 kg
|
18119017 |
17
|
061-17
|
1610
|
1
|
76 mm
|
25 mm
|
0.66 kg
|
18119019 |
19
|
061-19
|
2012
|
1
|
90 mm
|
32 mm
|
0.94 kg
|
18119021 |
21
|
061-21
|
2517
|
1
|
102 mm
|
45 mm
|
1.24 kg
|
18119023 |
23
|
061-23
|
2517
|
1
|
108 mm
|
45 mm
|
1.7 kg
|
18119025 |
25
|
061-25
|
2517
|
1
|
108 mm
|
45 mm
|
1.93 kg
|
18119027 |
27
|
061-27
|
2517
|
1
|
108 mm
|
45 mm
|
2.14 kg
|
18119030 |
30
|
061-30
|
2517
|
1
|
108 mm
|
45 mm
|
2.6 kg
|
No products match the selected filters.
Product Information
- Material
- Steel C 45 UNI 5007, teeth induction hardened HRC 45÷53
