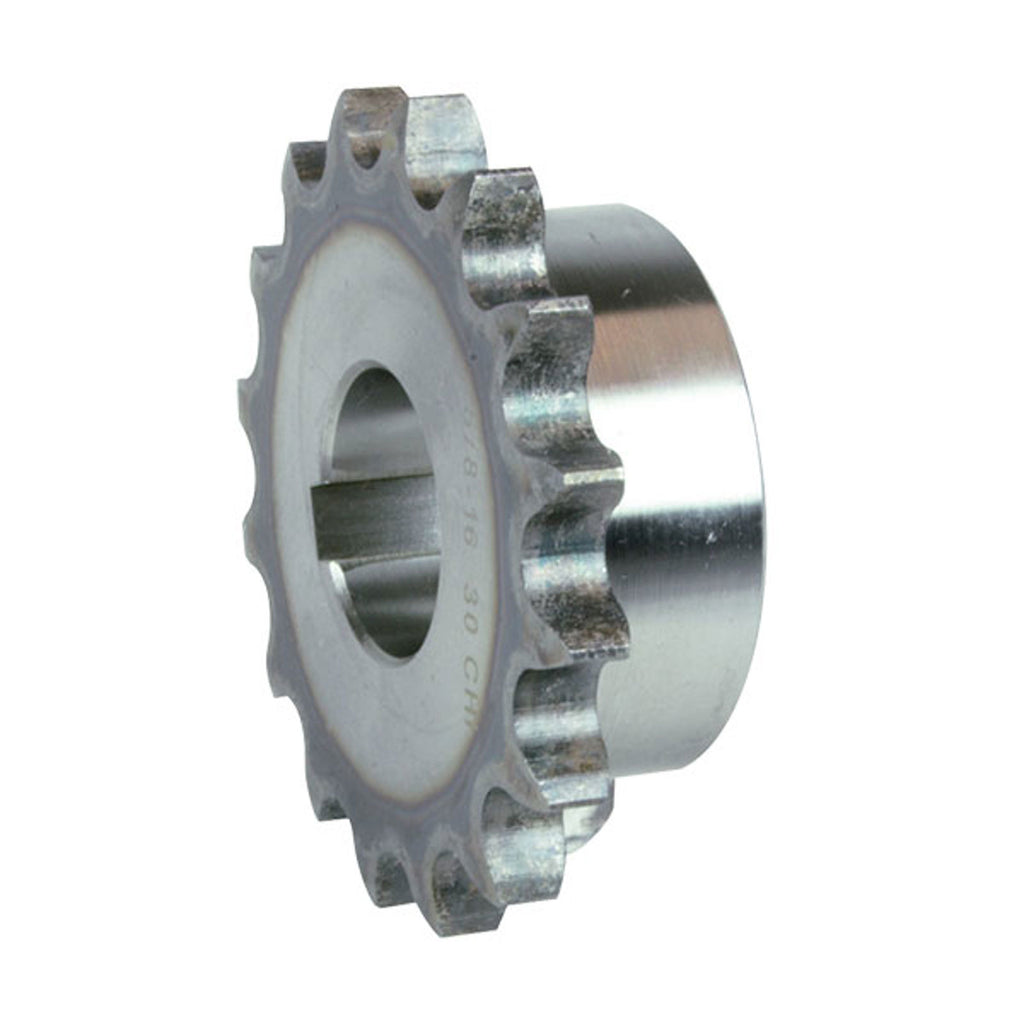

Taper-Lock® Chain Sprocket with Hardened Teeth 16B-1 Simplex (1″)

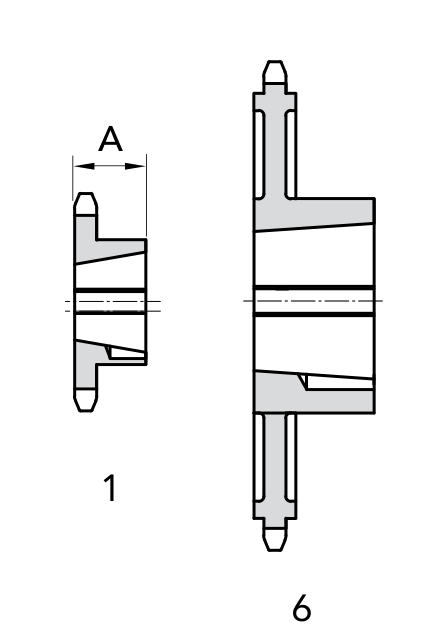

Simplex Taper-Lock® chain sprocket with induction-hardened teeth (HRC 45÷53) for 16B-1 roller chain (1″ pitch). Dimensions are shared with the standard steel version; the Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Weight |
|---|---|---|---|---|---|---|---|
18125015 |
15
|
081-15
|
1610
|
1
|
78 mm
|
25 mm
|
1.3 kg
|
18125017 |
17
|
081-17
|
2012
|
1
|
90 mm
|
32 mm
|
1.59 kg
|
18125019 |
19
|
081-19
|
2517
|
1
|
108 mm
|
45 mm
|
2.29 kg
|
18125021 |
21
|
081-21
|
2517
|
1
|
108 mm
|
45 mm
|
2.81 kg
|
18125023 |
23
|
081-23
|
2517
|
1
|
108 mm
|
45 mm
|
3.38 kg
|
18125025 |
25
|
081-25
|
2517
|
1
|
108 mm
|
45 mm
|
3.97 kg
|
18125027 |
27
|
081-27
|
2517
|
1
|
108 mm
|
45 mm
|
4.55 kg
|
18125030 |
30
|
081-30
|
3020
|
1
|
160 mm
|
51 mm
|
5.97 kg
|
No products match the selected filters.
Product Information
- Material
- Steel C 45 UNI 5007, teeth induction hardened HRC 45÷53
