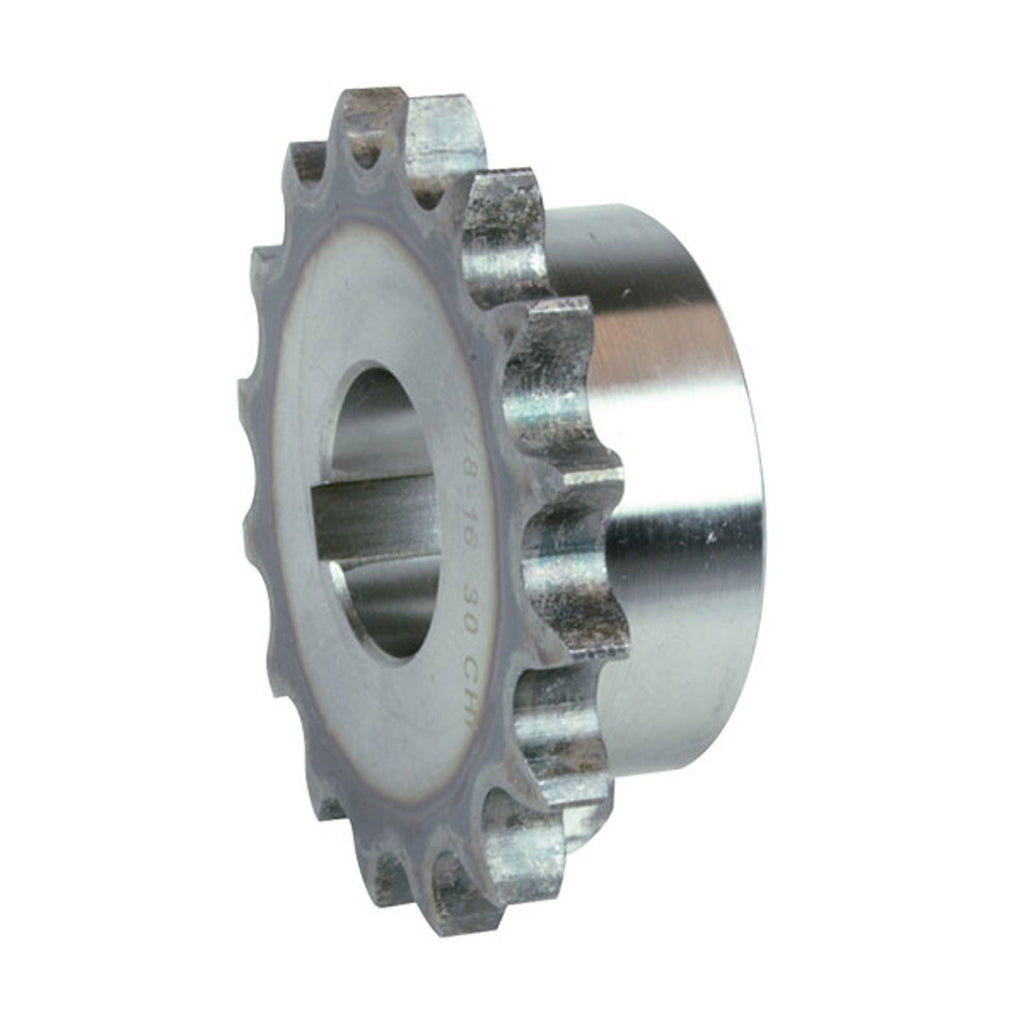

Taper-Lock® Chain Sprocket with Hardened Teeth 20B-1 Simplex (1″1/4)

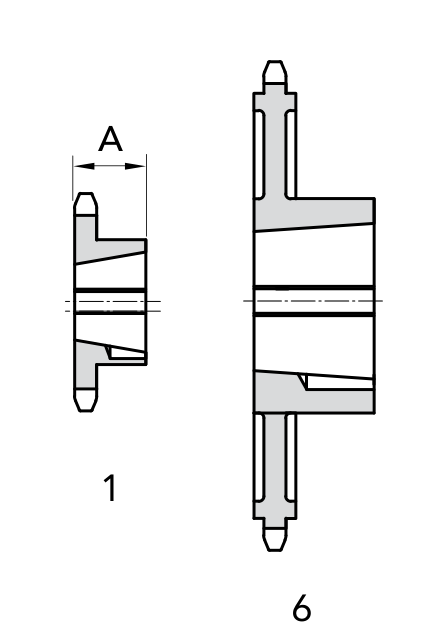

Simplex Taper-Lock® chain sprocket with induction-hardened teeth (HRC 45÷53) for 20B-1 roller chain (1″1/4 pitch). Dimensions are shared with the standard steel version; the Exec. type column refers to the hub execution figures 1 and 6 on the dimension drawing (Dm = Ø hub).
Product Configuration
Select a row to add it to your quote
| Code | Z | Cod. pitch | For taper bush | Exec. type | Dm Ø hub | A | Weight |
|---|---|---|---|---|---|---|---|
18131015 |
15
|
081-15
|
2517
|
1
|
108 mm
|
45 mm
|
3.39 kg
|
18131017 |
17
|
081-17
|
2517
|
1
|
108 mm
|
45 mm
|
5.07 kg
|
18131019 |
19
|
081-19
|
2517
|
1
|
108 mm
|
45 mm
|
6.75 kg
|
18131021 |
21
|
081-21
|
2517
|
1
|
108 mm
|
45 mm
|
7.7 kg
|
18131023 |
23
|
081-23
|
2517
|
1
|
108 mm
|
45 mm
|
8.78 kg
|
18131025 |
25
|
081-25
|
2517
|
1
|
108 mm
|
45 mm
|
9.5 kg
|
18131030 |
30
|
081-30
|
3020
|
1
|
160 mm
|
51 mm
|
15.9 kg
|
No products match the selected filters.
Product Information
- Material
- Steel C 45 UNI 5007, teeth induction hardened HRC 45÷53
