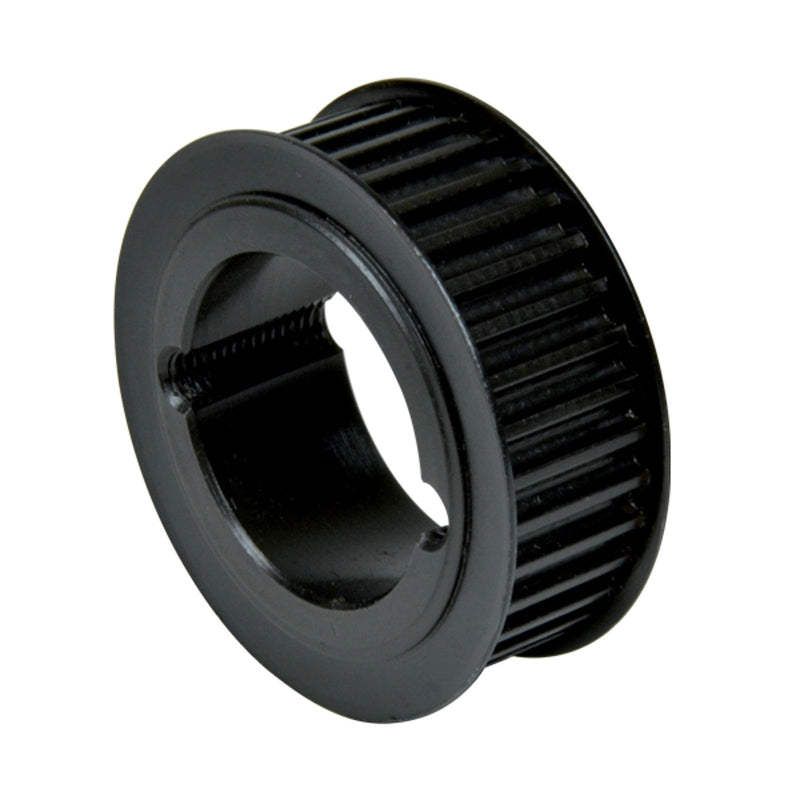

Chiaravalli Taper-Lock® Timing Pulley H 150 (1/2″ pitch) — product photo
Chiaravalli

Taper-Lock® Timing Pulley H 150 (1/2″ pitch)

Timing Pulleys

H 150 timing pulley (1/2″ pitch) for Taper-Lock® bush mounting, teeth Z 18–120. Steel executions are phosphated. Material per size: Steel C 45 UNI 7845 or Cast iron G 20 UNI 5007 — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSRMaterial Weight CAD
43150418 — 9F 1210 32 mm 72.77 mm 71.39 mm 79 mm — 52 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 0.6 kg
43150419 — 9F 1210 32 mm 76.81 mm 75.44 mm 82.5 mm — 56 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 0.72 kg
43150420 — 9F 1210 32 mm 80.85 mm 79.48 mm 87 mm — 60 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 0.83 kg
43150421 — 9F 1210 32 mm 84.89 mm 83.52 mm 91 mm — 64 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.0 kg
43150422 — 9F 1210 32 mm 88.94 mm 87.56 mm 94 mm — 67 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.25 kg
43150423 — 9F 1610 42 mm 92.98 mm 91.61 mm 97 mm — 70 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.05 kg
43150424 — 9F 1610 42 mm 97.02 mm 95.65 mm 102 mm — 73.5 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.1 kg
43150425 — 9F 1610 42 mm 101.06 mm 99.69 mm 106 mm — 77 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.3 kg
43150426 — 9F 1610 42 mm 105.11 mm 103.73 mm 112 mm — 82 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.42 kg
43150427 — 9F 1610 42 mm 109.15 mm 107.78 mm 115 mm — 85 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.65 kg
43150428 — 9F 1610 42 mm 113.19 mm 111.82 mm 120 mm — 90.5 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 1.88 kg
43150430 — 9F 1610 42 mm 121.28 mm 119.9 mm 128 mm — 98 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 2.05 kg
43150432 — 10F 1610 42 mm 129.36 mm 127.99 mm 135 mm 80 mm 106 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 2.35 kg
43150436 — 10F 1610 42 mm 145.53 mm 144.16 mm 150 mm 92 mm 121 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 3.2 kg
43150440 — 10F 1610 42 mm 161.7 mm 160.33 mm 168 mm 92 mm 138 mm 45 mm 25 mm 20 mm Steel C 45 UNI 7845 4.1 kg
43150444 — 10F 2012 50 mm 177.87 mm 176.5 mm 184 mm 106 mm 152 mm 45 mm 32 mm 13 mm Steel C 45 UNI 7845 4.5 kg
43150448 — 10F 2012 50 mm 194.04 mm 192.67 mm 200 mm 106 mm 169 mm 45 mm 32 mm 13 mm Steel C 45 UNI 7845 4.8 kg
43150460 — 12 2012 50 mm 242.55 mm 241.18 mm — 106 mm 223 mm 46 mm 32 mm 7 mm Cast iron G 20 UNI 5007 4.51 kg
43150472 — 12 2012 50 mm 291.06 mm 289.69 mm — 106 mm 270 mm 46 mm 32 mm 7 mm Cast iron G 20 UNI 5007 6.16 kg
43150484 — 12 2012 50 mm 339.57 mm 338.2 mm — 106 mm 318 mm 46 mm 32 mm 7 mm Cast iron G 20 UNI 5007 7.4 kg
43150496 — 12 2517 60 mm 388.08 mm 386.71 mm — 119 mm 366 mm 46 mm 45 mm 0.5 mm Cast iron G 20 UNI 5007 9.87 kg
43150520 — 12 2517 60 mm 485.1 mm 483.73 mm — 119 mm 462 mm 46 mm 45 mm 0.5 mm Cast iron G 20 UNI 5007 13.5 kg

Product Information

Pitch
12.7 mm
