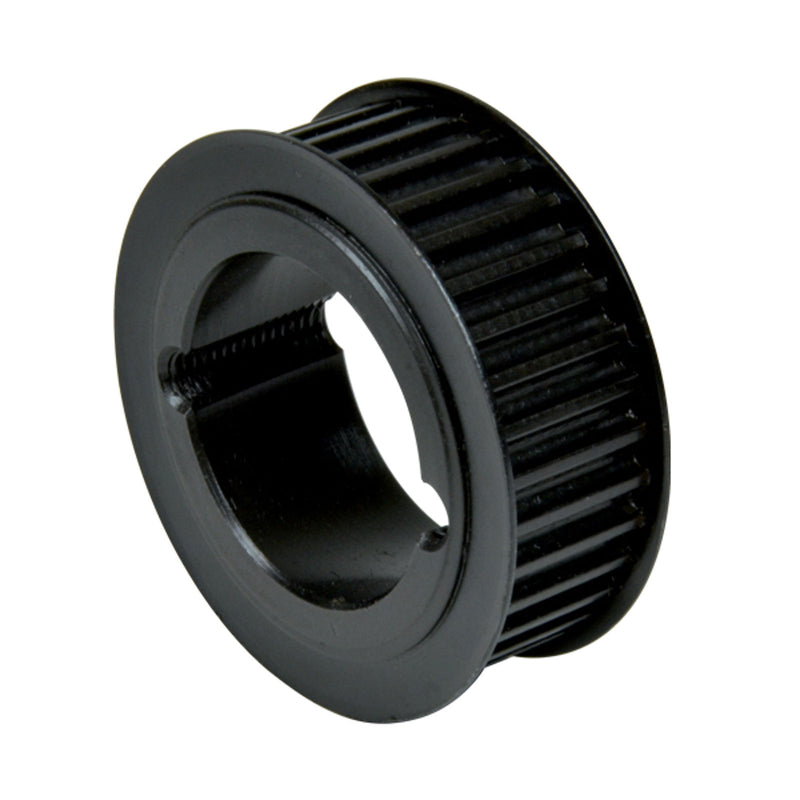

Chiaravalli Taper-Lock® Timing Pulley H 300 (1/2″ pitch) — product photo
Chiaravalli

Taper-Lock® Timing Pulley H 300 (1/2″ pitch)

Timing Pulleys

H 300 timing pulley (1/2″ pitch) for Taper-Lock® bush mounting, teeth Z 20–120. Steel executions are phosphated. Material per size: Steel C 45 UNI 7845 or Cast iron G 20 UNI 5007 — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSRMaterial Weight CAD
43300420 — 13F 1615 42 mm 80.85 mm 79.48 mm 87 mm — 64.5 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 1.22 kg
43300421 — 13F 1615 42 mm 84.89 mm 83.52 mm 91 mm — 65 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 1.52 kg
43300422 — 13F 1615 42 mm 88.94 mm 87.56 mm 94 mm — 67 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 1.8 kg
43300423 — 13F 1615 42 mm 92.98 mm 91.61 mm 97 mm — 70 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 2.04 kg
43300424 — 13F 1615 42 mm 97.02 mm 95.65 mm 102 mm — 73.5 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 2.29 kg
43300425 — 13F 1615 42 mm 101.06 mm 99.69 mm 106 mm — 77 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 2.54 kg
43300426 — 13F 1615 42 mm 105.11 mm 103.73 mm 112 mm — 82 mm 84 mm 38 mm 23 mm Steel C 45 UNI 7845 2.73 kg
43300427 — 13F 2012 50 mm 109.15 mm 107.78 mm 115 mm — 85 mm 84 mm 32 mm 26 mm Steel C 45 UNI 7845 2.54 kg
43300428 — 13F 2012 50 mm 113.19 mm 111.82 mm 120 mm — 90.5 mm 84 mm 32 mm 26 mm Steel C 45 UNI 7845 2.68 kg
43300430 — 13F 2012 60 mm 121.28 mm 119.9 mm 128 mm — 98 mm 84 mm 32 mm 26 mm Steel C 45 UNI 7845 3.21 kg
43300432 — 13F 2517 60 mm 129.36 mm 127.99 mm 135 mm — 106 mm 84 mm 45 mm 19.5 mm Steel C 45 UNI 7845 3.58 kg
43300436 — 13F 2517 60 mm 145.53 mm 144.16 mm 150 mm — 121 mm 84 mm 45 mm 19.5 mm Steel C 45 UNI 7845 4.99 kg
43300440 — 13F 2517 60 mm 161.7 mm 160.33 mm 168 mm — 138 mm 84 mm 45 mm 19.5 mm Steel C 45 UNI 7845 6.5 kg
43300444 — 14F 2517 60 mm 177.87 mm 176.5 mm 184 mm 119 mm 150 mm 86 mm 45 mm 20.5 mm Steel C 45 UNI 7845 7.55 kg
43300448 — 14F 2517 60 mm 194.04 mm 192.67 mm 200 mm 119 mm 165 mm 86 mm 45 mm 20.5 mm Steel C 45 UNI 7845 8.66 kg
43300460 — 12 2517 60 mm 242.55 mm 241.18 mm — 119 mm 223 mm 86 mm 45 mm 20.5 mm Cast iron G 20 UNI 5007 7.42 kg
43300472 — 12 2517 60 mm 291.06 mm 289.69 mm — 119 mm 270 mm 86 mm 45 mm 20.5 mm Cast iron G 20 UNI 5007 9.33 kg
43300484 — 12 2517 60 mm 339.57 mm 338.2 mm — 119 mm 320 mm 86 mm 45 mm 20.5 mm Cast iron G 20 UNI 5007 11.19 kg
43300496 — 12 3030 75 mm 388.08 mm 386.71 mm — 150 mm 362 mm 86 mm 76 mm 5 mm Cast iron G 20 UNI 5007 17.96 kg
43300520 — 12 3030 75 mm 485.1 mm 483.73 mm — 150 mm 460 mm 86 mm 76 mm 5 mm Cast iron G 20 UNI 5007 22.23 kg

Product Information

Pitch
12.7 mm
