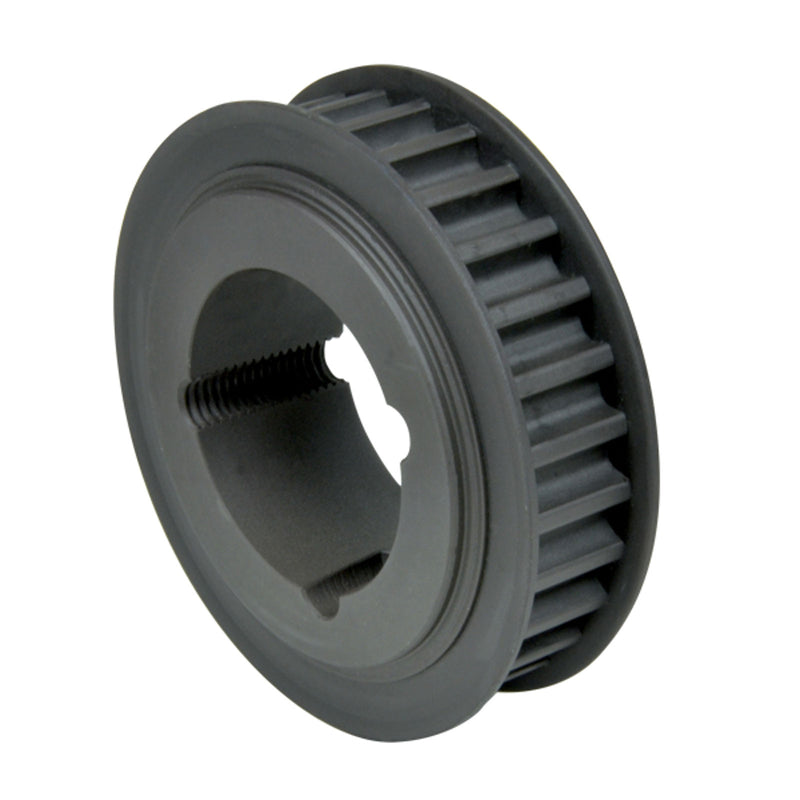

Chiaravalli Taper-Lock® Timing Pulley L 050 (3/8″ pitch) — product photo
Chiaravalli

Taper-Lock® Timing Pulley L 050 (3/8″ pitch)

Timing Pulleys

L 050 timing pulley (3/8″ pitch) for Taper-Lock® bush mounting, teeth Z 18–120. Steel executions are phosphated. Material per size: Steel C 45 UNI 7845 or Cast iron G 20 UNI 5007 — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSRMaterial Weight CAD
42050418 — 1F 1108 28 mm 54.57 mm 53.81 mm 60 mm 45 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.2 kg
42050419 — 1F 1108 28 mm 57.61 mm 56.84 mm 64 mm 45 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.23 kg
42050420 — 1F 1108 28 mm 60.64 mm 59.88 mm 66.5 mm 48 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.27 kg
42050421 — 1F 1108 28 mm 63.67 mm 62.91 mm 70 mm 48 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.3 kg
42050422 — 1F 1108 28 mm 66.7 mm 65.94 mm 75 mm 51 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.34 kg
42050423 — 1F 1108 28 mm 69.73 mm 68.97 mm 79 mm 54 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.4 kg
42050424 — 1F 1108 28 mm 72.77 mm 72 mm 79 mm 54 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.45 kg
42050425 — 1F 1108 28 mm 75.8 mm 75.04 mm 82.5 mm 56 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.5 kg
42050426 — 1F 1108 28 mm 78.83 mm 78.07 mm 86 mm 60 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.55 kg
42050427 — 1F 1108 28 mm 81.86 mm 81.1 mm 86 mm 62 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.6 kg
42050428 — 1F 1108 28 mm 84.89 mm 84.13 mm 91 mm 65 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.65 kg
42050430 — 1F 1108 28 mm 90.96 mm 90.2 mm 97 mm 70 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.8 kg
42050432 — 1F 1108 28 mm 97.02 mm 96.26 mm 102 mm 74 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 0.98 kg
42050436 — 1F 1108 28 mm 109.15 mm 108.39 mm 115 mm 85 mm — 19 mm 22 mm 3 mm Steel C 45 UNI 7845 1.2 kg
42050440 — 1F 1610 42 mm 121.28 mm 120.51 mm 128 mm 97 mm — 19 mm 25 mm 6 mm Steel C 45 UNI 7845 1.4 kg
42050444 — 2F 1610 42 mm 133.4 mm 132.64 mm 142 mm 88 mm 110 mm 19 mm 25 mm 6 mm Steel C 45 UNI 7845 2.1 kg
42050448 — 2F 1610 42 mm 145.53 mm 144.77 mm 150 mm 88 mm 120 mm 19 mm 25 mm 6 mm Steel C 45 UNI 7845 2.3 kg
42050460 — 3 1610 42 mm 181.91 mm 181.15 mm — 92 mm 166 mm 19 mm 25 mm 3 mm Steel C 45 UNI 7845 2.2 kg
42050472 — 4 1610 42 mm 218.3 mm 217.53 mm — 92 mm 202 mm 19 mm 25 mm 3 mm Cast iron G 20 UNI 5007 2.1 kg
42050484 — 4 1610 42 mm 254.68 mm 253.9 mm — 92 mm 236 mm 19 mm 25 mm 3 mm Cast iron G 20 UNI 5007 2.46 kg
42050496 — 4 2012 50 mm 291.06 mm 290.3 mm — 106 mm 270 mm 19 mm 32 mm 6.5 mm Cast iron G 20 UNI 5007 3.36 kg
42050520 — 4 2012 50 mm 363.83 mm 363.07 mm — 106 mm 343 mm 19 mm 32 mm 6.5 mm Cast iron G 20 UNI 5007 4.44 kg

Product Information

Pitch
9.525 mm
