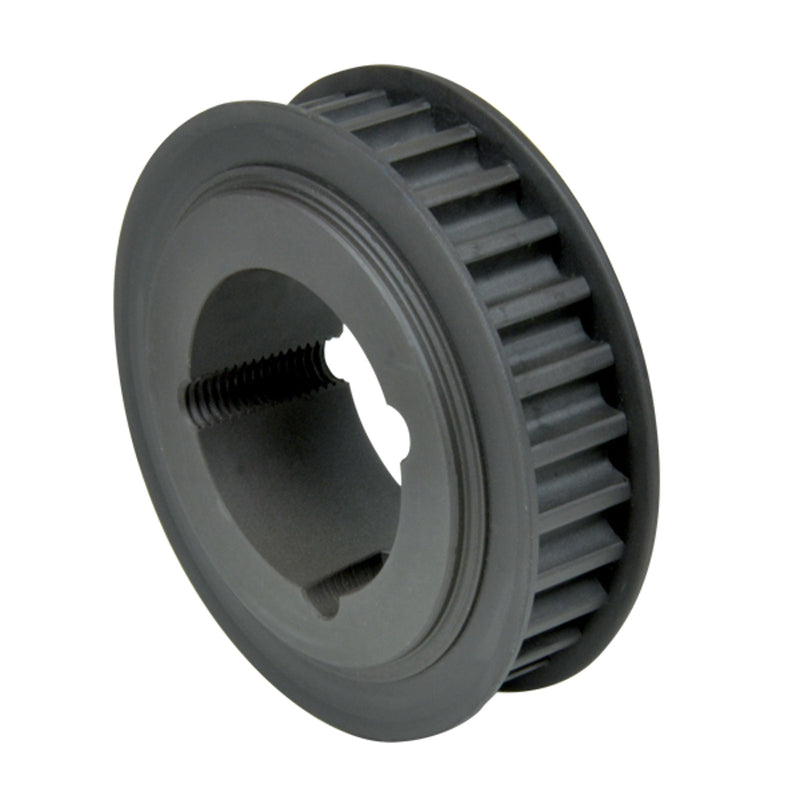

Chiaravalli Taper-Lock® Timing Pulley L 075 (3/8″ pitch) — product photo
Chiaravalli

Taper-Lock® Timing Pulley L 075 (3/8″ pitch)

Timing Pulleys

L 075 timing pulley (3/8″ pitch) for Taper-Lock® bush mounting, teeth Z 18–120. Steel executions are phosphated. Material per size: Steel C 45 UNI 7845 or Cast iron G 20 UNI 5007 — see the Material column.

The Taper bush column gives the bush size; Bore max is the largest bore that bush accepts. The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.Taper bushBore maxDpDeDf flangeDm hubDiFSRMaterial Weight CAD
42075418 — 5F 1108 28 mm 54.57 mm 53.81 mm 60 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.25 kg
42075419 — 5F 1108 28 mm 57.61 mm 56.84 mm 64 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.32 kg
42075420 — 5F 1108 28 mm 60.64 mm 59.88 mm 66.5 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.35 kg
42075421 — 5F 1108 28 mm 63.67 mm 62.91 mm 70 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.4 kg
42075422 — 5F 1108 28 mm 66.7 mm 65.94 mm 75 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.44 kg
42075423 — 5F 1108 28 mm 69.73 mm 68.97 mm 79 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.48 kg
42075424 — 5F 1108 28 mm 72.77 mm 72 mm 79 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.55 kg
42075425 — 5F 1108 28 mm 75.8 mm 75.04 mm 82.5 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.63 kg
42075426 — 5F 1108 28 mm 78.83 mm 78.07 mm 86 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.66 kg
42075427 — 5F 1108 28 mm 81.86 mm 81.1 mm 86 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.7 kg
42075428 — 5F 1108 28 mm 84.89 mm 84.13 mm 91 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.72 kg
42075430 — 5F 1108 28 mm 90.96 mm 90.2 mm 97 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 0.93 kg
42075432 — 5F 1108 28 mm 97.02 mm 96.26 mm 102 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 1.1 kg
42075436 — 5F 1610 42 mm 109.15 mm 108.39 mm 115 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 1.2 kg
42075440 — 5F 1610 42 mm 121.28 mm 120.51 mm 128 mm — — 25 mm 25 mm — Steel C 45 UNI 7845 1.7 kg
42075444 — 6F 1610 42 mm 133.4 mm 132.64 mm 142 mm 90 mm 110 mm 25 mm 25 mm — Steel C 45 UNI 7845 2.5 kg
42075448 — 6F 1610 42 mm 145.53 mm 144.77 mm 150 mm 92 mm 120 mm 25 mm 25 mm — Steel C 45 UNI 7845 2.6 kg
42075460 — 7 1610 42 mm 181.91 mm 181.15 mm — 92 mm 166 mm 25 mm 25 mm — Steel C 45 UNI 7845 3.0 kg
42075472 — 8 1610 42 mm 218.3 mm 217.53 mm — 92 mm 202 mm 25 mm 25 mm — Cast iron G 20 UNI 5007 2.33 kg
42075484 — 4 2012 50 mm 254.68 mm 253.9 mm — 106 mm 236 mm 25 mm 32 mm 3.5 mm Cast iron G 20 UNI 5007 3.55 kg
42075496 — 4 2012 50 mm 291.06 mm 290.3 mm — 106 mm 270 mm 25 mm 32 mm 3.5 mm Cast iron G 20 UNI 5007 3.95 kg
42075520 — 4 2012 50 mm 363.83 mm 363.07 mm — 106 mm 343 mm 25 mm 32 mm 3.5 mm Cast iron G 20 UNI 5007 5.61 kg

Product Information

Pitch
9.525 mm
