Chiaravalli THF Chain Sprocket with Hole + Keyway + Screw Holes 06B-1 (3/8″ × 7/32″ · Z 23–30)
Chiaravalli

THF Chain Sprocket with Hole + Keyway + Screw Holes 06B-1 (3/8″ × 7/32″ · Z 23–30)

Chain Sprockets

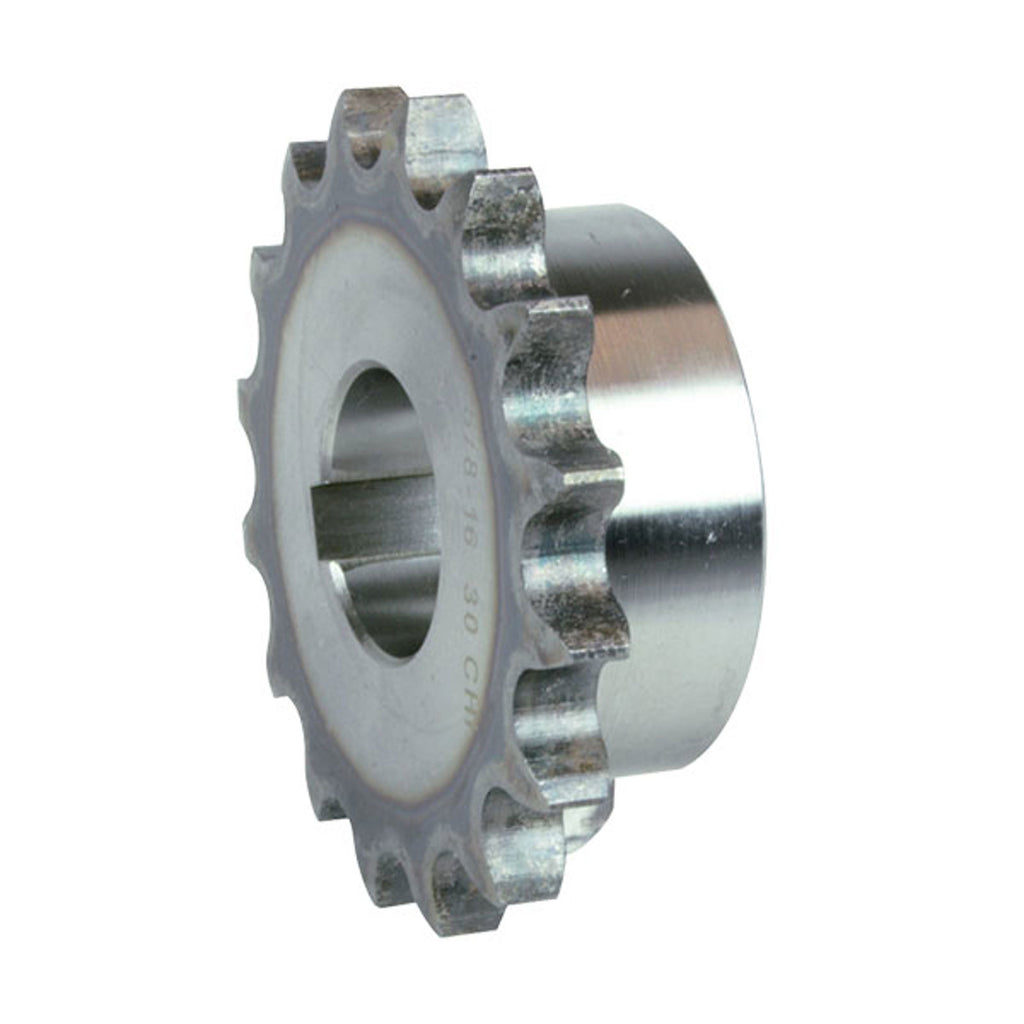

Simplex chain sprocket with hardened teeth (HRC 45÷53), finished bore, keyway and set-screw holes, for 06B-1 roller chain (3/8″ × 7/32″), teeth Z 23–30.

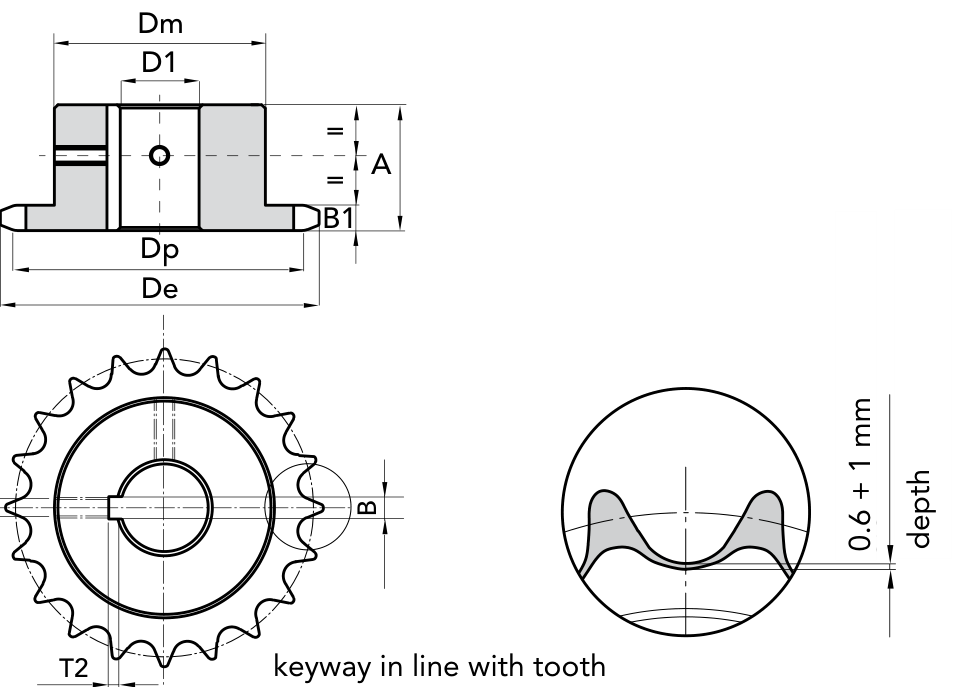

  • Keyway DIN 6885 UNI 6604 — keyway in line with tooth
  • Sprocket tooth width B1: 5.3 mm
  • Chain pitch: 9.525 mm
  • Chain inner width: 5.72 mm
  • Chain roller Ø: 9.35 mm

Product Configuration

Select a row to add it to your quote

Code ZØD1dedpdmABT2 CAD
16092315 23 15 mm 73.7 mm 69.95 mm 52 mm 28 mm 5 mm 2.3 mm
16092316 23 16 mm 73.7 mm 69.95 mm 52 mm 28 mm 5 mm 2.3 mm
16092318 23 18 mm 73.7 mm 69.95 mm 52 mm 28 mm 6 mm 2.8 mm
16092319 23 19 mm 73.7 mm 69.95 mm 52 mm 28 mm 6 mm 2.8 mm
16092320 23 20 mm 73.7 mm 69.95 mm 52 mm 28 mm 6 mm 2.8 mm
16092322 23 22 mm 73.7 mm 69.95 mm 52 mm 28 mm 6 mm 2.8 mm
16092324 23 24 mm 73.7 mm 69.95 mm 52 mm 28 mm 8 mm 3.3 mm
16092325 23 25 mm 73.7 mm 69.95 mm 52 mm 28 mm 8 mm 3.3 mm
16092418 24 18 mm 76.7 mm 72.97 mm 54 mm 28 mm 6 mm 2.8 mm
16092419 24 19 mm 76.7 mm 72.97 mm 54 mm 28 mm 6 mm 2.8 mm
16092420 24 20 mm 76.7 mm 72.97 mm 54 mm 28 mm 6 mm 2.8 mm
16092422 24 22 mm 76.7 mm 72.97 mm 54 mm 28 mm 6 mm 2.8 mm
16092424 24 24 mm 76.7 mm 72.97 mm 54 mm 28 mm 8 mm 3.3 mm
16092425 24 25 mm 76.7 mm 72.97 mm 54 mm 28 mm 8 mm 3.3 mm
16092428 24 28 mm 76.7 mm 72.97 mm 54 mm 28 mm 8 mm 3.3 mm
16092430 24 30 mm 76.7 mm 72.97 mm 54 mm 28 mm 8 mm 3.3 mm
16092518 25 18 mm 79.7 mm 76 mm 57 mm 28 mm 6 mm 2.8 mm
16092519 25 19 mm 79.7 mm 76 mm 57 mm 28 mm 6 mm 2.8 mm —
16092520 25 20 mm 79.7 mm 76 mm 57 mm 28 mm 6 mm 2.8 mm
16092522 25 22 mm 79.7 mm 76 mm 57 mm 28 mm 6 mm 2.8 mm
16092524 25 24 mm 79.7 mm 76 mm 57 mm 28 mm 8 mm 3.3 mm
16092525 25 25 mm 79.7 mm 76 mm 57 mm 28 mm 8 mm 3.3 mm
16092528 25 28 mm 79.7 mm 76 mm 57 mm 28 mm 8 mm 3.3 mm
16092530 25 30 mm 79.7 mm 76 mm 57 mm 28 mm 8 mm 3.3 mm
16092720 27 20 mm 85.7 mm 82.05 mm 60 mm 28 mm 6 mm 2.8 mm
16092722 27 22 mm 85.7 mm 82.05 mm 60 mm 28 mm 6 mm 2.8 mm
16092724 27 24 mm 85.7 mm 82.05 mm 60 mm 28 mm 8 mm 3.3 mm
16092725 27 25 mm 85.7 mm 82.05 mm 60 mm 28 mm 8 mm 3.3 mm
16092728 27 28 mm 85.7 mm 82.05 mm 60 mm 28 mm 8 mm 3.3 mm
16092730 27 30 mm 85.7 mm 82.05 mm 60 mm 28 mm 8 mm 3.3 mm
16093020 30 20 mm 94.8 mm 91.12 mm 60 mm 30 mm 6 mm 2.8 mm
16093022 30 22 mm 94.8 mm 91.12 mm 60 mm 30 mm 6 mm 2.8 mm
16093024 30 24 mm 94.8 mm 91.12 mm 60 mm 30 mm 8 mm 3.3 mm
16093025 30 25 mm 94.8 mm 91.12 mm 60 mm 30 mm 8 mm 3.3 mm
16093028 30 28 mm 94.8 mm 91.12 mm 60 mm 30 mm 8 mm 3.3 mm
16093030 30 30 mm 94.8 mm 91.12 mm 60 mm 30 mm 8 mm 3.3 mm

Product Information

Material
C 45 UNI 7845, teeth induction hardened HRC 45÷53

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
