Chiaravalli THF Chain Sprocket with Hole + Keyway + Screw Holes 08B-1 (1/2″ × 5/16″ · Z 12–18)
Chiaravalli

THF Chain Sprocket with Hole + Keyway + Screw Holes 08B-1 (1/2″ × 5/16″ · Z 12–18)

Chain Sprockets

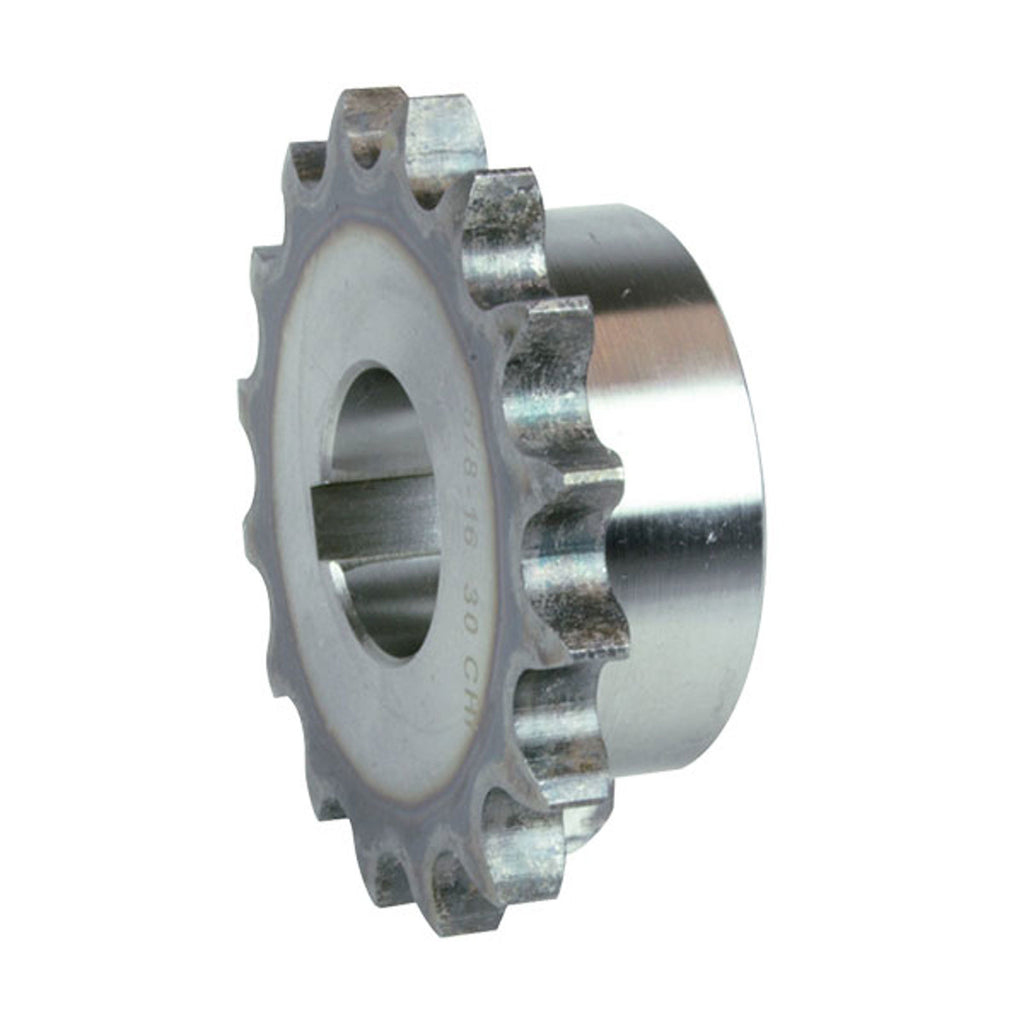

Simplex chain sprocket with hardened teeth (HRC 45÷53), finished bore, keyway and set-screw holes, for 08B-1 roller chain (1/2″ × 5/16″), teeth Z 12–18.

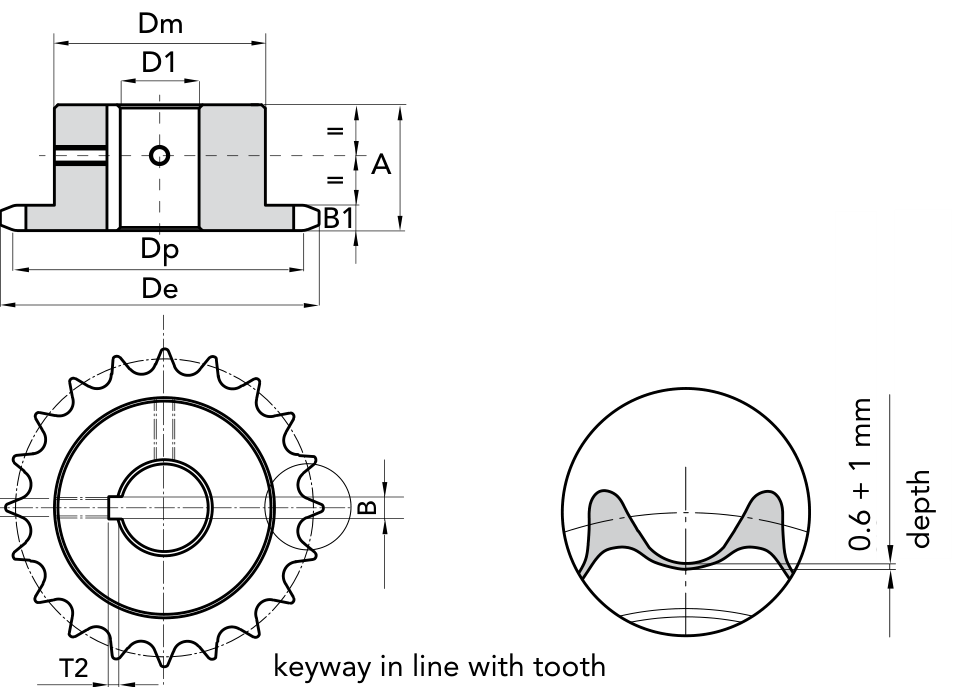

  • Keyway DIN 6885 UNI 6604 — keyway in line with tooth
  • Sprocket tooth width B1: 7.2 mm
  • Chain pitch: 12.7 mm
  • Chain inner width: 7.75 mm
  • Chain roller Ø: 8.51 mm

Product Configuration

Select a row to add it to your quote

Code ZØD1dedpdmABT2 CAD
16121212 12 12 mm 53.9 mm 49.07 mm 33 mm 28 mm 4 mm 1.8 mm
16121214 12 14 mm 53.9 mm 49.07 mm 33 mm 28 mm 5 mm 2.3 mm
16121215 12 15 mm 53.9 mm 49.07 mm 33 mm 28 mm 5 mm 2.3 mm
16121216 12 16 mm 53.9 mm 49.07 mm 33 mm 28 mm 5 mm 2.3 mm
16121218 12 18 mm 53.9 mm 49.07 mm 33 mm 28 mm 6 mm 2.8 mm
16121219 12 19 mm 53.9 mm 49.07 mm 33 mm 28 mm 6 mm 2.8 mm
16121220 12 20 mm 53.9 mm 49.07 mm 33 mm 28 mm 6 mm 2.8 mm
16121312 13 12 mm 57.9 mm 53.06 mm 37 mm 28 mm 4 mm 1.8 mm
16121314 13 14 mm 57.9 mm 53.06 mm 37 mm 28 mm 5 mm 2.3 mm
16121315 13 15 mm 57.9 mm 53.06 mm 37 mm 28 mm 5 mm 2.3 mm
16121316 13 16 mm 57.9 mm 53.06 mm 37 mm 28 mm 5 mm 2.3 mm
16121318 13 18 mm 57.9 mm 53.06 mm 37 mm 28 mm 6 mm 2.8 mm
16121319 13 19 mm 57.9 mm 53.06 mm 37 mm 28 mm 6 mm 2.8 mm
16121320 13 20 mm 57.9 mm 53.06 mm 37 mm 28 mm 6 mm 2.8 mm
16121322 13 22 mm 57.9 mm 53.06 mm 37 mm 28 mm 6 mm 2.8 mm
16121324 13 24 mm 57.9 mm 53.06 mm 37 mm 28 mm 8 mm 3.3 mm
16121414 14 14 mm 61.6 mm 57.07 mm 41 mm 28 mm 5 mm 2.3 mm
16121415 14 15 mm 61.6 mm 57.07 mm 41 mm 28 mm 5 mm 2.3 mm
16121416 14 16 mm 61.6 mm 57.07 mm 41 mm 28 mm 5 mm 2.3 mm
16121418 14 18 mm 61.6 mm 57.07 mm 41 mm 28 mm 6 mm 2.8 mm
16121419 14 19 mm 61.6 mm 57.07 mm 41 mm 28 mm 6 mm 2.8 mm
16121420 14 20 mm 61.6 mm 57.07 mm 41 mm 28 mm 6 mm 2.8 mm
16121422 14 22 mm 61.6 mm 57.07 mm 41 mm 28 mm 6 mm 2.8 mm
16121424 14 24 mm 61.6 mm 57.07 mm 41 mm 28 mm 8 mm 3.3 mm
16121425 14 25 mm 61.6 mm 57.07 mm 41 mm 28 mm 8 mm 3.3 mm
16121514 15 14 mm 65.9 mm 61.09 mm 45 mm 28 mm 5 mm 2.3 mm
16121515 15 15 mm 65.9 mm 61.09 mm 45 mm 28 mm 5 mm 2.3 mm
16121516 15 16 mm 65.9 mm 61.09 mm 45 mm 28 mm 5 mm 2.3 mm
16121518 15 18 mm 65.9 mm 61.09 mm 45 mm 28 mm 6 mm 2.8 mm
16121519 15 19 mm 65.9 mm 61.09 mm 45 mm 28 mm 6 mm 2.8 mm
16121520 15 20 mm 65.9 mm 61.09 mm 45 mm 28 mm 6 mm 2.8 mm
16121522 15 22 mm 65.9 mm 61.09 mm 45 mm 28 mm 6 mm 2.8 mm
16121524 15 24 mm 65.9 mm 61.09 mm 45 mm 28 mm 8 mm 3.3 mm
16121525 15 25 mm 65.9 mm 61.09 mm 45 mm 28 mm 8 mm 3.3 mm
16121528 15 28 mm 65.9 mm 61.09 mm 45 mm 28 mm 8 mm 3.3 mm
16121530 15 30 mm 65.9 mm 61.09 mm 45 mm 28 mm 8 mm 3.3 mm
16121615 16 15 mm 69.5 mm 65.1 mm 50 mm 28 mm 5 mm 2.3 mm
16121616 16 16 mm 69.5 mm 65.1 mm 50 mm 28 mm 5 mm 2.3 mm
16121618 16 18 mm 69.5 mm 65.1 mm 50 mm 28 mm 6 mm 2.8 mm
16121619 16 19 mm 69.5 mm 65.1 mm 50 mm 28 mm 6 mm 2.8 mm
16121620 16 20 mm 69.5 mm 65.1 mm 50 mm 28 mm 6 mm 2.8 mm
16121622 16 22 mm 69.5 mm 65.1 mm 50 mm 28 mm 6 mm 2.8 mm
16121624 16 24 mm 69.5 mm 65.1 mm 50 mm 28 mm 8 mm 3.3 mm
16121625 16 25 mm 69.5 mm 65.1 mm 50 mm 28 mm 8 mm 3.3 mm
16121628 16 28 mm 69.5 mm 65.1 mm 50 mm 28 mm 8 mm 3.3 mm
16121630 16 30 mm 69.5 mm 65.1 mm 50 mm 28 mm 8 mm 3.3 mm
16121715 17 15 mm 74 mm 69.11 mm 52 mm 28 mm 5 mm 2.3 mm
16121716 17 16 mm 74 mm 69.11 mm 52 mm 28 mm 5 mm 2.3 mm
16121718 17 18 mm 74 mm 69.11 mm 52 mm 28 mm 6 mm 2.8 mm
16121719 17 19 mm 74 mm 69.11 mm 52 mm 28 mm 6 mm 2.8 mm
16121720 17 20 mm 74 mm 69.11 mm 52 mm 28 mm 6 mm 2.8 mm
16121722 17 22 mm 74 mm 69.11 mm 52 mm 28 mm 6 mm 2.8 mm
16121724 17 24 mm 74 mm 69.11 mm 52 mm 28 mm 8 mm 3.3 mm
16121725 17 25 mm 74 mm 69.11 mm 52 mm 28 mm 8 mm 3.3 mm
16121728 17 28 mm 74 mm 69.11 mm 52 mm 28 mm 8 mm 3.3 mm
16121730 17 30 mm 74 mm 69.11 mm 52 mm 28 mm 8 mm 3.3 mm
16121816 18 16 mm 77.8 mm 73.14 mm 56 mm 28 mm 5 mm 2.3 mm
16121818 18 18 mm 77.8 mm 73.14 mm 56 mm 28 mm 6 mm 2.8 mm
16121819 18 19 mm 77.8 mm 73.14 mm 56 mm 28 mm 6 mm 2.8 mm
16121820 18 20 mm 77.8 mm 73.14 mm 56 mm 28 mm 6 mm 2.8 mm
16121822 18 22 mm 77.8 mm 73.14 mm 56 mm 28 mm 6 mm 2.8 mm
16121824 18 24 mm 77.8 mm 73.14 mm 56 mm 28 mm 8 mm 3.3 mm
16121825 18 25 mm 77.8 mm 73.14 mm 56 mm 28 mm 8 mm 3.3 mm
16121828 18 28 mm 77.8 mm 73.14 mm 56 mm 28 mm 8 mm 3.3 mm
16121830 18 30 mm 77.8 mm 73.14 mm 56 mm 28 mm 8 mm 3.3 mm
16121832 18 32 mm 77.8 mm 73.14 mm 56 mm 28 mm 10 mm 3.3 mm
16121835 18 35 mm 77.8 mm 73.14 mm 56 mm 28 mm 10 mm 3.3 mm

Product Information

Material
C 45 UNI 7845, teeth induction hardened HRC 45÷53

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
