Chiaravalli THF Chain Sprocket with Hole + Keyway + Screw Holes 10B-1 (5/8″ × 3/8″ · Z 20–25)
Chiaravalli

THF Chain Sprocket with Hole + Keyway + Screw Holes 10B-1 (5/8″ × 3/8″ · Z 20–25)

Chain Sprockets

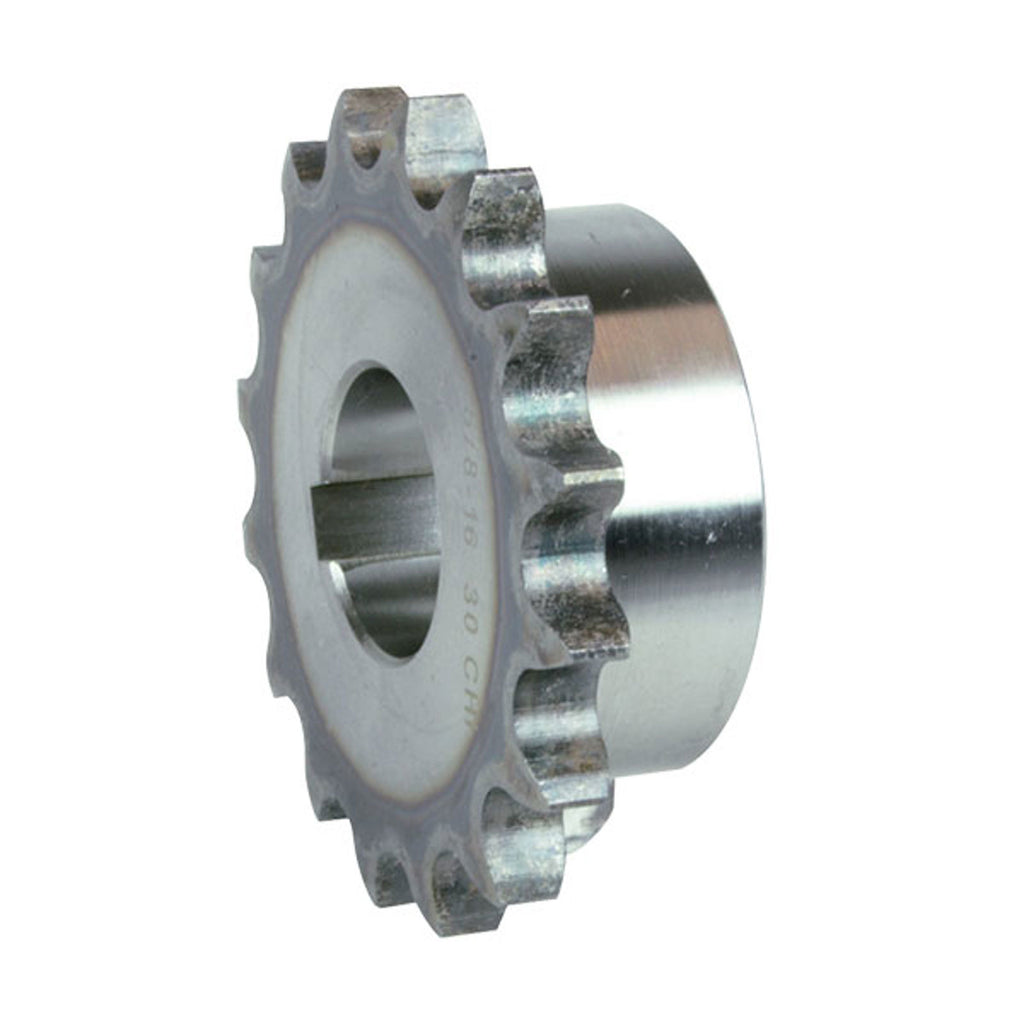

Simplex chain sprocket with hardened teeth (HRC 45÷53), finished bore, keyway and set-screw holes, for 10B-1 roller chain (5/8″ × 3/8″), teeth Z 20–25.

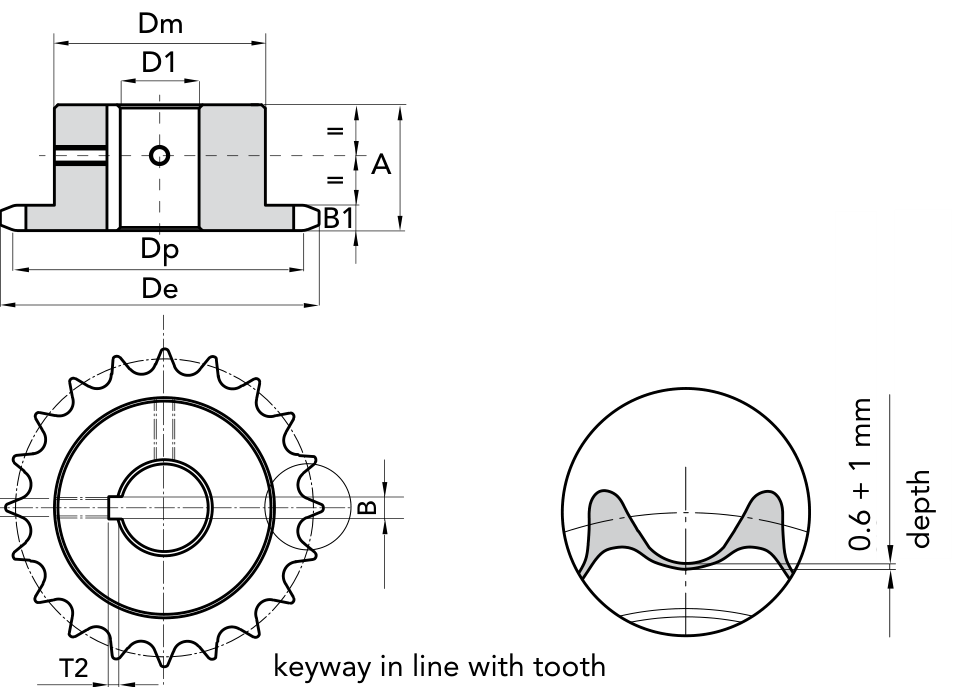

  • Keyway DIN 6885 UNI 6604 — keyway in line with tooth
  • Sprocket tooth width B1: 9.1 mm
  • Chain pitch: 15.875 mm
  • Chain inner width: 9.65 mm
  • Chain roller Ø: 10.16 mm

Product Configuration

Select a row to add it to your quote

Code ZØD1dedpdmABT2 CAD
16152020 20 20 mm 108.4 mm 101.49 mm 75 mm 30 mm 6 mm 2.8 mm
16152022 20 22 mm 108.4 mm 101.49 mm 75 mm 30 mm 6 mm 2.8 mm
16152024 20 24 mm 108.4 mm 101.49 mm 75 mm 30 mm 8 mm 3.3 mm
16152025 20 25 mm 108.4 mm 101.49 mm 75 mm 30 mm 8 mm 3.3 mm
16152028 20 28 mm 108.4 mm 101.49 mm 75 mm 30 mm 8 mm 3.3 mm
16152030 20 30 mm 108.4 mm 101.49 mm 75 mm 30 mm 8 mm 3.3 mm
16152032 20 32 mm 108.4 mm 101.49 mm 75 mm 30 mm 10 mm 3.3 mm
16152035 20 35 mm 108.4 mm 101.49 mm 75 mm 30 mm 10 mm 3.3 mm
16152038 20 38 mm 108.4 mm 101.49 mm 75 mm 30 mm 10 mm 3.3 mm
16152040 20 40 mm 108.4 mm 101.49 mm 75 mm 30 mm 12 mm 3.3 mm
16152120 21 20 mm 113.4 mm 106.52 mm 75 mm 30 mm 6 mm 2.8 mm
16152122 21 22 mm 113.4 mm 106.52 mm 75 mm 30 mm 6 mm 2.8 mm
16152124 21 24 mm 113.4 mm 106.52 mm 75 mm 30 mm 8 mm 3.3 mm
16152125 21 25 mm 113.4 mm 106.52 mm 75 mm 30 mm 8 mm 3.3 mm
16152128 21 28 mm 113.4 mm 106.52 mm 75 mm 30 mm 8 mm 3.3 mm
16152130 21 30 mm 113.4 mm 106.52 mm 75 mm 30 mm 8 mm 3.3 mm
16152132 21 32 mm 113.4 mm 106.52 mm 75 mm 30 mm 10 mm 3.3 mm
16152135 21 35 mm 113.4 mm 106.52 mm 75 mm 30 mm 10 mm 3.3 mm
16152138 21 38 mm 113.4 mm 106.52 mm 75 mm 30 mm 10 mm 3.3 mm
16152140 21 40 mm 113.4 mm 106.52 mm 75 mm 30 mm 12 mm 3.3 mm
16152320 23 20 mm 123.4 mm 116.58 mm 80 mm 30 mm 6 mm 2.8 mm
16152322 23 22 mm 123.4 mm 116.58 mm 80 mm 30 mm 6 mm 2.8 mm
16152324 23 24 mm 123.4 mm 116.58 mm 80 mm 30 mm 8 mm 3.3 mm
16152325 23 25 mm 123.4 mm 116.58 mm 80 mm 30 mm 8 mm 3.3 mm
16152328 23 28 mm 123.4 mm 116.58 mm 80 mm 30 mm 8 mm 3.3 mm
16152330 23 30 mm 123.4 mm 116.58 mm 80 mm 30 mm 8 mm 3.3 mm
16152332 23 32 mm 123.4 mm 116.58 mm 80 mm 30 mm 10 mm 3.3 mm
16152335 23 35 mm 123.4 mm 116.58 mm 80 mm 30 mm 10 mm 3.3 mm
16152338 23 38 mm 123.4 mm 116.58 mm 80 mm 30 mm 10 mm 3.3 mm
16152340 23 40 mm 123.4 mm 116.58 mm 80 mm 30 mm 12 mm 3.3 mm
16152342 23 42 mm 123.4 mm 116.58 mm 80 mm 30 mm 12 mm 3.3 mm
16152420 24 20 mm 128.5 mm 121.62 mm 80 mm 30 mm 6 mm 2.8 mm
16152422 24 22 mm 128.5 mm 121.62 mm 80 mm 30 mm 6 mm 2.8 mm
16152424 24 24 mm 128.5 mm 121.62 mm 80 mm 30 mm 8 mm 3.3 mm
16152425 24 25 mm 128.5 mm 121.62 mm 80 mm 30 mm 8 mm 3.3 mm
16152428 24 28 mm 128.5 mm 121.62 mm 80 mm 30 mm 8 mm 3.3 mm
16152430 24 30 mm 128.5 mm 121.62 mm 80 mm 30 mm 8 mm 3.3 mm
16152432 24 32 mm 128.5 mm 121.62 mm 80 mm 30 mm 10 mm 3.3 mm
16152435 24 35 mm 128.5 mm 121.62 mm 80 mm 30 mm 10 mm 3.3 mm
16152438 24 38 mm 128.5 mm 121.62 mm 80 mm 30 mm 10 mm 3.3 mm
16152440 24 40 mm 128.5 mm 121.62 mm 80 mm 30 mm 12 mm 3.3 mm
16152442 24 42 mm 128.5 mm 121.62 mm 80 mm 30 mm 12 mm 3.3 mm
16152522 25 22 mm 133.5 mm 126.66 mm 80 mm 30 mm 6 mm 2.8 mm
16152524 25 24 mm 133.5 mm 126.66 mm 80 mm 30 mm 8 mm 3.3 mm
16152525 25 25 mm 133.5 mm 126.66 mm 80 mm 30 mm 8 mm 3.3 mm
16152528 25 28 mm 133.5 mm 126.66 mm 80 mm 30 mm 8 mm 3.3 mm
16152530 25 30 mm 133.5 mm 126.66 mm 80 mm 30 mm 8 mm 3.3 mm
16152532 25 32 mm 133.5 mm 126.66 mm 80 mm 30 mm 10 mm 3.3 mm
16152535 25 35 mm 133.5 mm 126.66 mm 80 mm 30 mm 10 mm 3.3 mm
16152538 25 38 mm 133.5 mm 126.66 mm 80 mm 30 mm 10 mm 3.3 mm
16152540 25 40 mm 133.5 mm 126.66 mm 80 mm 30 mm 12 mm 3.3 mm
16152542 25 42 mm 133.5 mm 126.66 mm 80 mm 30 mm 12 mm 3.3 mm

Product Information

Material
C 45 UNI 7845, teeth induction hardened HRC 45÷53
