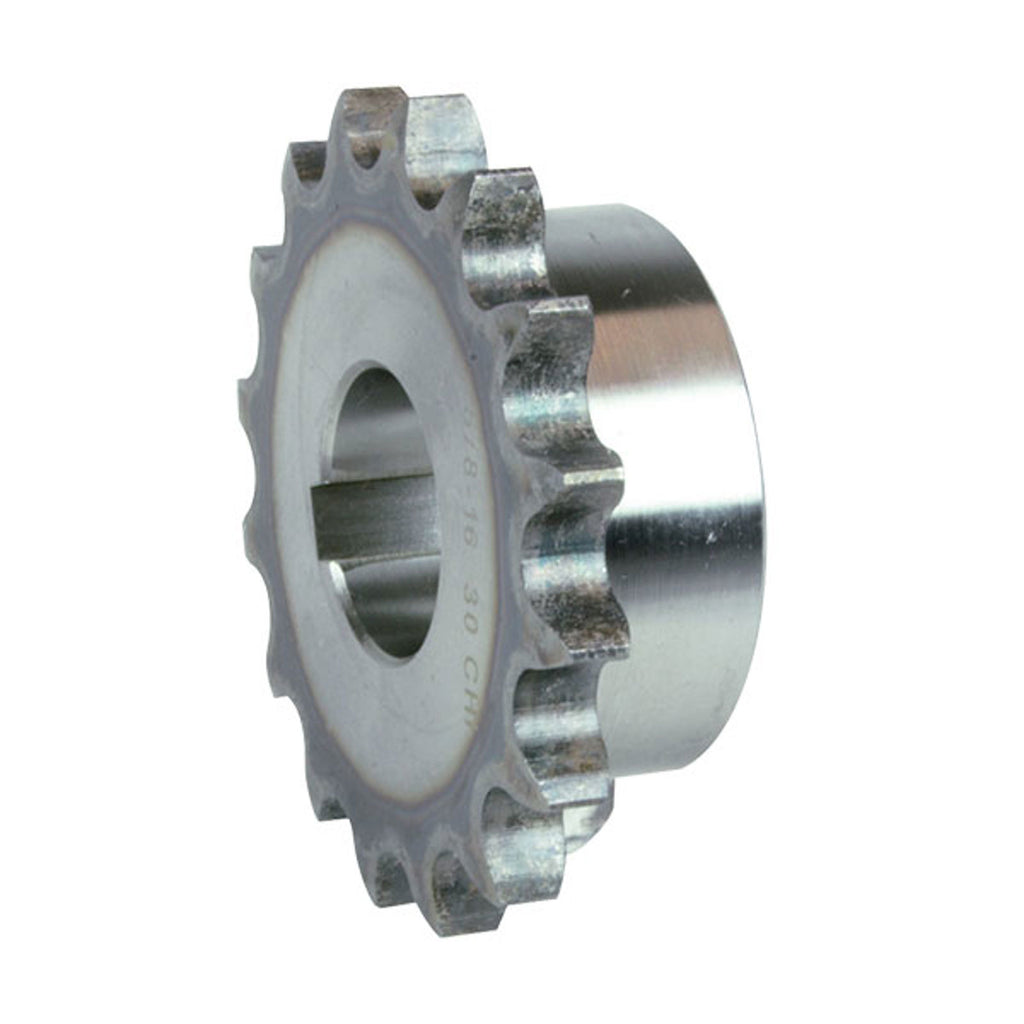

Chiaravalli THF Chain Sprocket with Hole + Keyway + Screw Holes 16B-1 (1″ × 17.02 · Z 20–25)
Chiaravalli

THF Chain Sprocket with Hole + Keyway + Screw Holes 16B-1 (1″ × 17.02 · Z 20–25)

Chain Sprockets

Simplex chain sprocket with hardened teeth (HRC 45÷53), finished bore, keyway and set-screw holes, for 16B-1 roller chain (1″ × 17.02), teeth Z 20–25.

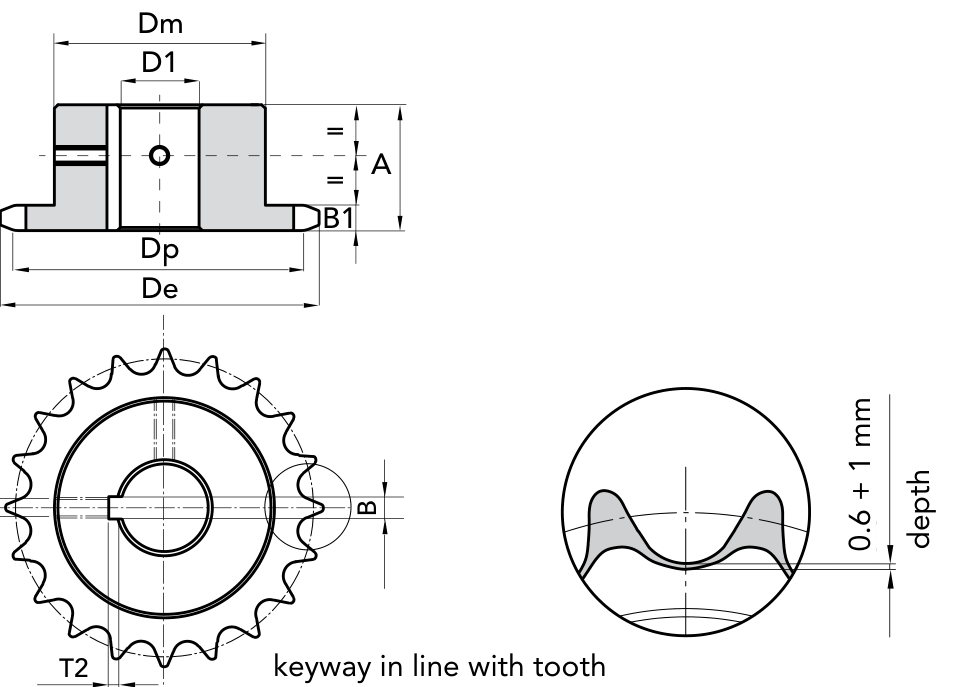

  • Keyway DIN 6885 UNI 6604 — keyway in line with tooth
  • Sprocket tooth width B1: 16.2 mm
  • Chain pitch: 25.4 mm
  • Chain inner width: 17.02 mm
  • Chain roller Ø: 15.88 mm

Product Configuration

Select a row to add it to your quote

Code ZØD1dedpdmABT2 CAD
16252030 20 30 mm 173.2 mm 162.38 mm 100 mm 45 mm 8 mm 3.3 mm
16252032 20 32 mm 173.2 mm 162.38 mm 100 mm 45 mm 10 mm 3.3 mm
16252035 20 35 mm 173.2 mm 162.38 mm 100 mm 45 mm 10 mm 3.3 mm
16252038 20 38 mm 173.2 mm 162.38 mm 100 mm 45 mm 10 mm 3.3 mm
16252040 20 40 mm 173.2 mm 162.38 mm 100 mm 45 mm 12 mm 3.3 mm
16252042 20 42 mm 173.2 mm 162.38 mm 100 mm 45 mm 12 mm 3.3 mm
16252045 20 45 mm 173.2 mm 162.38 mm 100 mm 45 mm 14 mm 3.8 mm
16252048 20 48 mm 173.2 mm 162.38 mm 100 mm 45 mm 14 mm 3.8 mm
16252050 20 50 mm 173.2 mm 162.38 mm 100 mm 45 mm 14 mm 3.8 mm
16252130 21 30 mm 181.6 mm 170.43 mm 110 mm 50 mm 8 mm 3.3 mm
16252132 21 32 mm 181.6 mm 170.43 mm 110 mm 50 mm 10 mm 3.3 mm
16252135 21 35 mm 181.6 mm 170.43 mm 110 mm 50 mm 10 mm 3.3 mm
16252138 21 38 mm 181.6 mm 170.43 mm 110 mm 50 mm 10 mm 3.3 mm
16252140 21 40 mm 181.6 mm 170.43 mm 110 mm 50 mm 12 mm 3.3 mm
16252142 21 42 mm 181.6 mm 170.43 mm 110 mm 50 mm 12 mm 3.3 mm
16252145 21 45 mm 181.6 mm 170.43 mm 110 mm 50 mm 14 mm 3.8 mm
16252148 21 48 mm 181.6 mm 170.43 mm 110 mm 50 mm 14 mm 3.8 mm
16252150 21 50 mm 181.6 mm 170.43 mm 110 mm 50 mm 14 mm 3.8 mm
16252330 23 30 mm 198.1 mm 186.1 mm 110 mm 50 mm 8 mm 3.3 mm
16252332 23 32 mm 198.1 mm 186.1 mm 110 mm 50 mm 10 mm 3.3 mm
16252335 23 35 mm 198.1 mm 186.1 mm 110 mm 50 mm 10 mm 3.3 mm
16252338 23 38 mm 198.1 mm 186.1 mm 110 mm 50 mm 10 mm 3.3 mm
16252340 23 40 mm 198.1 mm 186.1 mm 110 mm 50 mm 12 mm 3.3 mm
16252342 23 42 mm 198.1 mm 186.1 mm 110 mm 50 mm 12 mm 3.3 mm
16252345 23 45 mm 198.1 mm 186.1 mm 110 mm 50 mm 14 mm 3.8 mm
16252348 23 48 mm 198.1 mm 186.1 mm 110 mm 50 mm 14 mm 3.8 mm
16252350 23 50 mm 198.1 mm 186.1 mm 110 mm 50 mm 14 mm 3.8 mm
16252530 25 30 mm 214.2 mm 202.66 mm 110 mm 50 mm 8 mm 3.3 mm
16252532 25 32 mm 214.2 mm 202.66 mm 110 mm 50 mm 10 mm 3.3 mm
16252535 25 35 mm 214.2 mm 202.66 mm 110 mm 50 mm 10 mm 3.3 mm
16252538 25 38 mm 214.2 mm 202.66 mm 110 mm 50 mm 10 mm 3.3 mm
16252540 25 40 mm 214.2 mm 202.66 mm 110 mm 50 mm 12 mm 3.3 mm
16252542 25 42 mm 214.2 mm 202.66 mm 110 mm 50 mm 12 mm 3.3 mm
16252545 25 45 mm 214.2 mm 202.66 mm 110 mm 50 mm 14 mm 3.8 mm
16252548 25 48 mm 214.2 mm 202.66 mm 110 mm 50 mm 14 mm 3.8 mm
16252550 25 50 mm 214.2 mm 202.66 mm 110 mm 50 mm 14 mm 3.8 mm

Product Information

Material
C 45 UNI 7845, teeth induction hardened HRC 45÷53
