THF Hardened Chain Sprocket 06B-1 Simplex (3/8″ × 7/32″)

Name: Chiaravalli THF Hardened Chain Sprocket 06B-1 Simplex (3/8″ × 7/32″)
Brand: Chiaravalli

Chain Sprockets

Simplex chain sprocket with induction-hardened teeth HRC 45÷53 for 06B-1 roller chain (3/8″ × 7/32″), in compliance with DIN 8187 - ISO/R 606.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	dm	D1	A	Weight
`15109013`	`13`	`43` mm	`39.79` mm	`28` mm	`10` mm	`25` mm	`0.13` kg
`15109014`	`14`	`46.5` mm	`42.8` mm	`31` mm	`10` mm	`25` mm	`0.16` kg
`15109015`	`15`	`49.3` mm	`45.81` mm	`34` mm	`10` mm	`25` mm	`0.18` kg
`15109016`	`16`	`52.3` mm	`48.82` mm	`37` mm	`10` mm	`28` mm	`0.24` kg
`15109017`	`17`	`55.3` mm	`51.83` mm	`40` mm	`10` mm	`28` mm	`0.28` kg
`15109018`	`18`	`59.3` mm	`54.85` mm	`43` mm	`10` mm	`28` mm	`0.33` kg
`15109019`	`19`	`61.3` mm	`57.87` mm	`45` mm	`10` mm	`28` mm	`0.36` kg
`15109020`	`20`	`64.3` mm	`60.89` mm	`46` mm	`10` mm	`28` mm	`0.39` kg
`15109021`	`21`	`68` mm	`63.91` mm	`48` mm	`12` mm	`28` mm	`0.42` kg
`15109023`	`23`	`73.5` mm	`69.95` mm	`52` mm	`12` mm	`28` mm	`0.5` kg
`15109025`	`25`	`80` mm	`76` mm	`57` mm	`12` mm	`28` mm	`0.6` kg
`15109027`	`27`	`86` mm	`82.05` mm	`60` mm	`12` mm	`28` mm	`0.65` kg
`15109030`	`30`	`94.7` mm	`91.12` mm	`60` mm	`12` mm	`30` mm	`0.72` kg

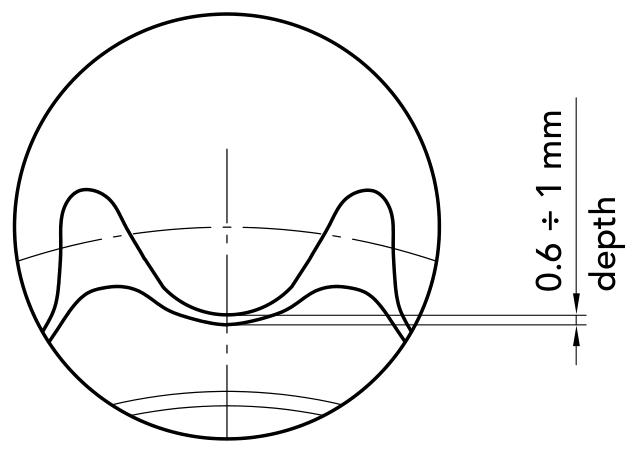

Material: C 45 UNI 7845, teeth induction hardened HRC 45÷53 (0.6÷1 mm depth)
