Chiaravalli

THF Hardened Chain Sprocket 08B-1 Simplex (1/2″ × 5/16″)

Name: Chiaravalli THF Hardened Chain Sprocket 08B-1 Simplex (1/2″ × 5/16″)
Brand: Chiaravalli

Chain Sprockets

Simplex chain sprocket with induction-hardened teeth HRC 45÷53 for 08B-1 roller chain (1/2″ × 5/16″), in compliance with DIN 8187 - ISO/R 606.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	dm	D1	A	Weight
`15112013`	`13`	`57.4` mm	`53.6` mm	`37` mm	`10` mm	`28` mm	`0.26` kg
`15112014`	`14`	`61.8` mm	`57.07` mm	`41` mm	`10` mm	`28` mm	`0.32` kg
`15112015`	`15`	`65.9` mm	`61.09` mm	`45` mm	`10` mm	`28` mm	`0.38` kg
`15112016`	`16`	`69.9` mm	`65.1` mm	`50` mm	`12` mm	`28` mm	`0.46` kg
`15112017`	`17`	`74` mm	`69.11` mm	`52` mm	`12` mm	`28` mm	`0.51` kg
`15112018`	`18`	`78` mm	`73.14` mm	`56` mm	`12` mm	`28` mm	`0.59` kg
`15112019`	`19`	`82` mm	`77.16` mm	`60` mm	`12` mm	`28` mm	`0.67` kg
`15112020`	`20`	`86` mm	`81.19` mm	`64` mm	`12` mm	`28` mm	`0.76` kg
`15112021`	`21`	`90.1` mm	`85.22` mm	`68` mm	`14` mm	`28` mm	`0.85` kg
`15112023`	`23`	`98.1` mm	`93.27` mm	`70` mm	`14` mm	`28` mm	`0.91` kg
`15112025`	`25`	`106.2` mm	`101.33` mm	`70` mm	`14` mm	`28` mm	`1.01` kg
`15112027`	`27`	`114` mm	`109.4` mm	`70` mm	`16` mm	`30` mm	`1.26` kg
`15112030`	`30`	`126.3` mm	`121.5` mm	`80` mm	`16` mm	`30` mm	`1.46` kg

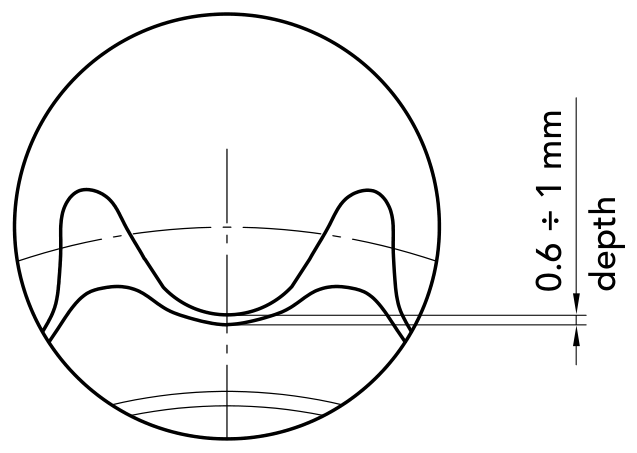

Material: C 45 UNI 7845, teeth induction hardened HRC 45÷53 (0.6÷1 mm depth)
