THF Hardened Chain Sprocket 10B-1 Simplex (5/8″ × 3/8″)

Name: Chiaravalli THF Hardened Chain Sprocket 10B-1 Simplex (5/8″ × 3/8″)
Brand: Chiaravalli

Chain Sprockets

Simplex chain sprocket with induction-hardened teeth HRC 45÷53 for 10B-1 roller chain (5/8″ × 3/8″), in compliance with DIN 8187 - ISO/R 606.

Select a row to add it to your quote

Teeth

Code	Z	de	dp	dm	D1	A	Weight
`15115013`	`13`	`73` mm	`66.32` mm	`47` mm	`12` mm	`30` mm	`0.46` kg
`15115014`	`14`	`78.2` mm	`71.34` mm	`52` mm	`12` mm	`30` mm	`0.56` kg
`15115015`	`15`	`83` mm	`76.36` mm	`57` mm	`12` mm	`30` mm	`0.67` kg
`15115016`	`16`	`88` mm	`81.37` mm	`60` mm	`12` mm	`30` mm	`0.76` kg
`15115017`	`17`	`93` mm	`86.39` mm	`60` mm	`12` mm	`30` mm	`0.88` kg
`15115018`	`18`	`98.3` mm	`91.42` mm	`70` mm	`12` mm	`30` mm	`1.01` kg
`15115019`	`19`	`103.3` mm	`96.45` mm	`70` mm	`14` mm	`30` mm	`1.15` kg
`15115020`	`20`	`108.4` mm	`101.49` mm	`75` mm	`14` mm	`30` mm	`1.21` kg
`15115021`	`21`	`113.4` mm	`106.52` mm	`80` mm	`16` mm	`30` mm	`1.35` kg
`15115023`	`23`	`123.4` mm	`116.58` mm	`80` mm	`16` mm	`30` mm	`1.47` kg
`15115025`	`25`	`134` mm	`126.66` mm	`80` mm	`16` mm	`30` mm	`1.6` kg
`15115027`	`27`	`143.5` mm	`136.74` mm	`80` mm	`16` mm	`30` mm	`2.0` kg
`15115030`	`30`	`158.7` mm	`151.87` mm	`90` mm	`20` mm	`35` mm	`2.41` kg

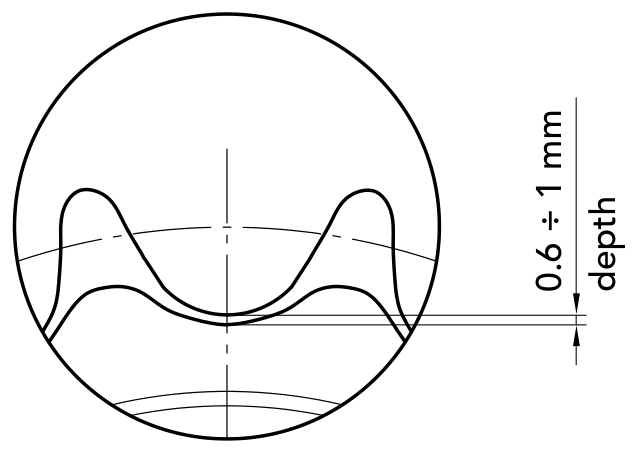

Material: C 45 UNI 7845, teeth induction hardened HRC 45÷53 (0.6÷1 mm depth)
