Chiaravalli THF Hardened Chain Sprocket 16B-1 Simplex (1″ × 17.02)
Chiaravalli

THF Hardened Chain Sprocket 16B-1 Simplex (1″ × 17.02)

Chain Sprockets

Simplex chain sprocket with induction-hardened teeth HRC 45÷53 for 16B-1 roller chain (1″ × 17.02), in compliance with DIN 8187 - ISO/R 606.

Product Configuration

Select a row to add it to your quote

Code ZdedpdmD1A Weight CAD
15125013 13 117 mm 106.12 mm 78 mm 16 mm 40 mm 1.77 kg
15125014 14 125.7 mm 114.15 mm 84 mm 16 mm 40 mm 2.08 kg
15125015 15 133 mm 122.17 mm 92 mm 16 mm 40 mm 2.46 kg
15125016 16 141 mm 130.2 mm 100 mm 19 mm 45 mm 3.14 kg
15125017 17 149 mm 138.22 mm 100 mm 20 mm 45 mm 3.34 kg
15125018 18 157 mm 146.28 mm 100 mm 20 mm 45 mm 3.56 kg
15125019 19 165.2 mm 154.33 mm 100 mm 20 mm 45 mm 3.78 kg
15125020 20 173 mm 162.38 mm 100 mm 20 mm 45 mm 4.03 kg
15125021 21 181.2 mm 170.43 mm 110 mm 20 mm 50 mm 5.14 kg
15125023 23 197.6 mm 186.54 mm 110 mm 20 mm 50 mm 5.56 kg
15125025 25 213.7 mm 202.66 mm 110 mm 20 mm 50 mm 6.16 kg
15125027 27 229.6 mm 218.79 mm 110 mm 20 mm 50 mm 7.0 kg
15125030 30 254.6 mm 243 mm 120 mm 20 mm 50 mm 8.38 kg

Product Information

Material

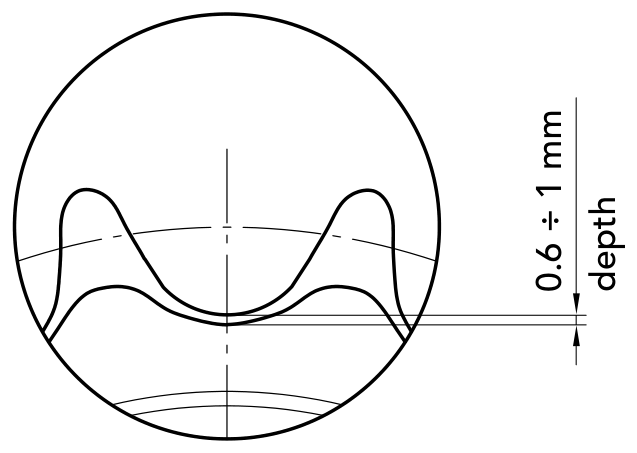

C 45 UNI 7845, teeth induction hardened HRC 45÷53 (0.6÷1 mm depth)

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
