Chiaravalli Clamping Plate for Timing Belt Metric Pitch AT — product photo
Chiaravalli

Clamping Plate for Timing Belt Metric Pitch AT

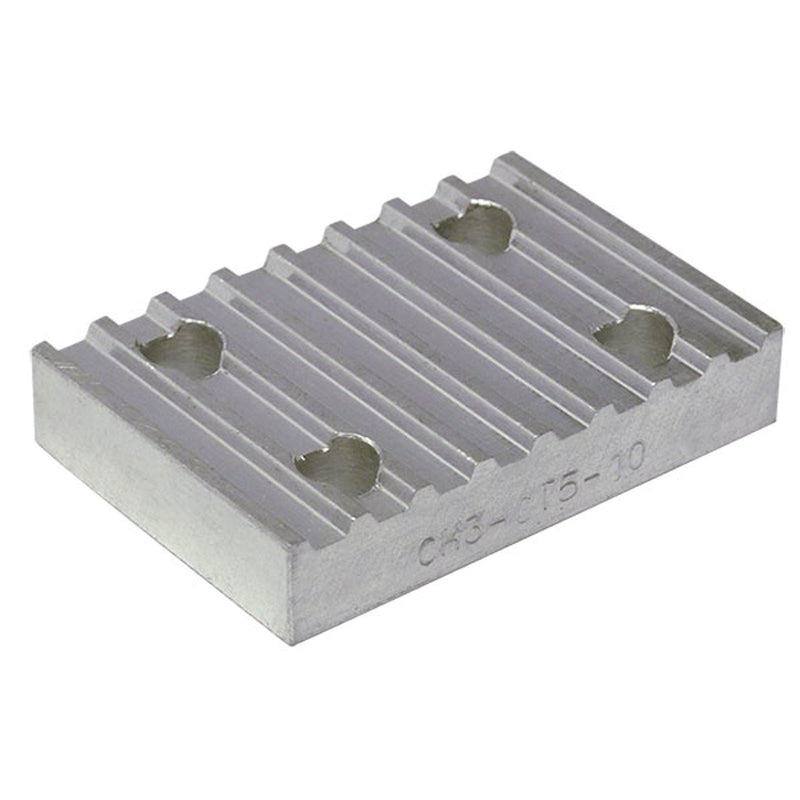

Aluminium clamping plate for Metric Pitch AT timing belts: the toothed plate clamps the belt end against a flat counter-plate (dimensions as drawn: P pitch, L belt width, A × C plate, S thickness, F / d / B fixing).

Product Configuration

Select a row to add it to your quote

Code TypePLFdBASC Weight CAD
49346510 CT5 10 5 mm 10 mm 6 mm 5.5 mm 3.2 mm 41.8 mm 8 mm 29 mm 0.02 kg
49346516 CT5 16 5 mm 16 mm 6 mm 5.5 mm 3.2 mm 41.8 mm 8 mm 35 mm 0.03 kg
49346525 CT5 25 5 mm 25 mm 6 mm 5.5 mm 3.2 mm 41.8 mm 8 mm 44 mm 0.04 kg
49347016 CT10 16 10 mm 16 mm 8 mm 9 mm 5 mm 80 mm 15 mm 41 mm 0.11 kg
49347025 CT10 25 10 mm 25 mm 8 mm 9 mm 5 mm 80 mm 15 mm 50 mm 0.14 kg
49347032 CT10 32 10 mm 32 mm 8 mm 9 mm 5 mm 80 mm 15 mm 57 mm 0.16 kg
49347050 CT10 50 10 mm 50 mm 8 mm 9 mm 5 mm 80 mm 15 mm 75 mm 0.22 kg

Product Information

Material
Aluminium

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
