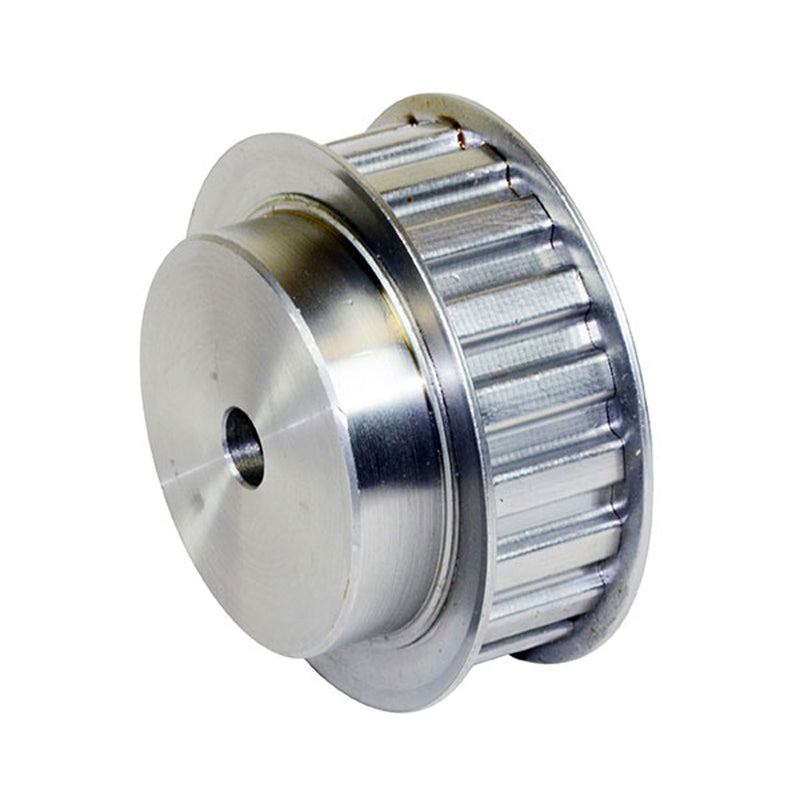

Chiaravalli Timing Pulley H 075 — Pilot Bore (1/2″ pitch) — product photo
Chiaravalli

Timing Pulley H 075 — Pilot Bore (1/2″ pitch)

Timing Pulleys

H 075 timing pulley (1/2″ pitch) with pilot bore, teeth Z 14–50. Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
43075014 14 1F 56.59 mm 55.22 mm 64 mm 40 mm 26.4 mm 40 mm — Steel C 45 0.58 kg
43075015 15 1F 60.64 mm 59.27 mm 66.5 mm 45 mm 26.4 mm 40 mm — Steel C 45 0.69 kg
43075016 16 1F 64.67 mm 63.31 mm 70 mm 45 mm 26.4 mm 40 mm — Steel C 45 0.77 kg
43075017 17 1F 68.72 mm 67.35 mm 75 mm 45 mm 26.4 mm 40 mm — Steel C 45 0.84 kg
43075018 18 1F 72.77 mm 71.39 mm 79 mm 55 mm 26.4 mm 40 mm — Steel C 45 1.01 kg
43075019 19 1F 76.81 mm 75.44 mm 82.5 mm 60 mm 26.4 mm 40 mm 11 mm Steel C 45 1.15 kg
43075020 20 1F 80.85 mm 79.48 mm 87 mm 62 mm 26.4 mm 40 mm 11 mm Steel C 45 1.27 kg
43075021 21 1F 84.89 mm 83.52 mm 91 mm 65 mm 26.4 mm 40 mm 11 mm Steel C 45 1.41 kg
43075022 22 1F 88.93 mm 87.56 mm 94 mm 68 mm 26.4 mm 40 mm 11 mm Steel C 45 1.55 kg
43075023 23 1F 92.98 mm 91.61 mm 97 mm 72 mm 26.4 mm 40 mm 11 mm Steel C 45 1.71 kg
43075024 24 1F 97.03 mm 95.65 mm 102 mm 72 mm 26.4 mm 40 mm 11 mm Steel C 45 1.83 kg
43075025 25 1F 101.06 mm 99.69 mm 106 mm 72 mm 26.4 mm 40 mm 11 mm Steel C 45 1.96 kg
43075026 26 1F 105.11 mm 103.73 mm 112 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 2.19 kg
43075027 27 1F 109.15 mm 107.78 mm 115 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 2.32 kg
43075028 28 1F 113.18 mm 111.82 mm 120 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 2.47 kg
43075030 30 1F 121.29 mm 119.9 mm 128 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 2.76 kg
43075032 32 1F 129.3 mm 127.99 mm 135 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 3.08 kg
43075033 33 1F 133.4 mm 132.03 mm 142 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 3.25 kg
43075034 34 1F 137.45 mm 136.07 mm 142 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 3.42 kg
43075035 35 1F 141.49 mm 140.12 mm 150 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 3.61 kg
43075036 36 1F 145.54 mm 144.16 mm 150 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 3.79 kg
43075038 38 1F 153.62 mm 152.24 mm 158 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 4.16 kg
43075040 40 1F 161.7 mm 160.33 mm 168 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 4.58 kg
43075042 42 1F 169.79 mm 168.41 mm 184 mm 80 mm 26.4 mm 40 mm 11 mm Steel C 45 5.05 kg
43075044 44 5F 177.8 mm 176.5 mm 184 mm 80 mm 26.4 mm 40 mm 14 mm Cast iron 2.57 kg
43075048 48 5F 194.03 mm 192.67 mm 200 mm 90 mm 26.4 mm 45 mm 14 mm Cast iron 3.56 kg
43075050 50 4 202.13 mm 200.75 mm — 90 mm 26.4 mm 45 mm 14 mm Cast iron 3.74 kg

Product Information

Pitch
12.7 mm
