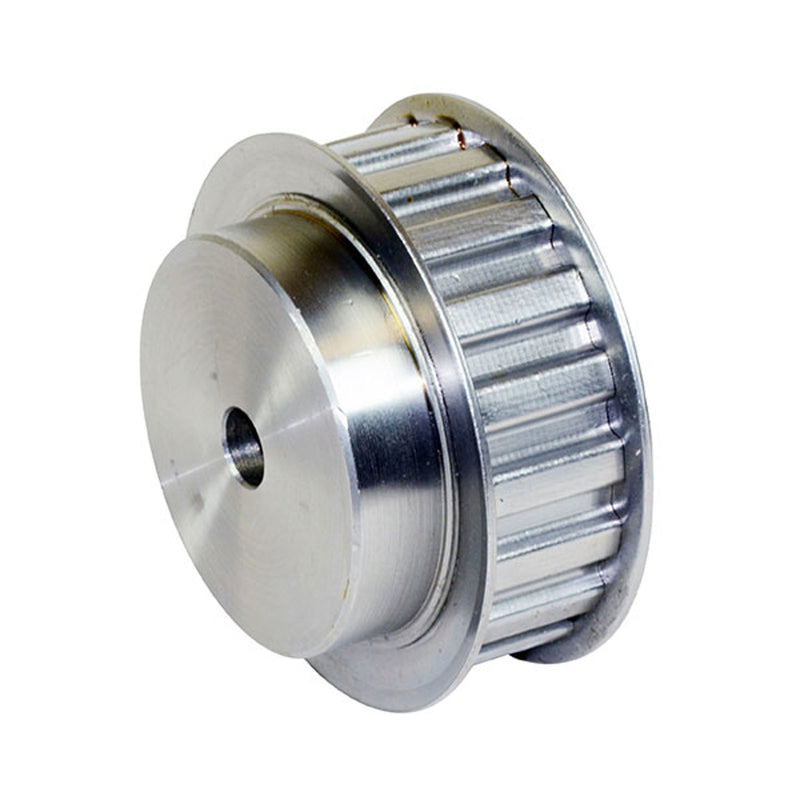

Timing Pulley H 100 — Pilot Bore (1/2″ pitch)

Timing Pulleys

H 100 timing pulley (1/2″ pitch) with pilot bore, teeth Z 14–120. Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
43100014 14 1F 56.59 mm 55.22 mm 64 mm 40 mm 31.8 mm 45 mm — Steel C 45 0.65 kg
43100015 15 1F 60.64 mm 59.27 mm 66.5 mm 45 mm 31.8 mm 45 mm — Steel C 45 0.77 kg
43100016 16 1F 64.67 mm 63.31 mm 70 mm 45 mm 31.8 mm 45 mm — Steel C 45 0.87 kg
43100017 17 1F 68.72 mm 67.35 mm 75 mm 45 mm 31.8 mm 45 mm — Steel C 45 0.97 kg
43100018 18 1F 72.77 mm 71.39 mm 79 mm 55 mm 31.8 mm 45 mm — Steel C 45 1.16 kg
43100019 19 1F 76.81 mm 75.44 mm 82.5 mm 60 mm 31.8 mm 45 mm 14 mm Steel C 45 1.3 kg
43100020 20 1F 80.85 mm 79.48 mm 87 mm 62 mm 31.8 mm 45 mm 14 mm Steel C 45 1.44 kg
43100021 21 1F 84.89 mm 83.52 mm 91 mm 65 mm 31.8 mm 45 mm 14 mm Steel C 45 1.6 kg
43100022 22 1F 88.93 mm 87.56 mm 94 mm 68 mm 31.8 mm 45 mm 14 mm Steel C 45 1.76 kg
43100023 23 1F 92.98 mm 91.61 mm 97 mm 72 mm 31.8 mm 45 mm 14 mm Steel C 45 1.94 kg
43100024 24 1F 97.03 mm 95.65 mm 102 mm 72 mm 31.8 mm 45 mm 14 mm Steel C 45 2.09 kg
43100025 25 1F 101.06 mm 99.69 mm 106 mm 72 mm 31.8 mm 45 mm 14 mm Steel C 45 2.24 kg
43100026 26 1F 105.11 mm 103.73 mm 112 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 2.49 kg
43100027 27 1F 109.15 mm 107.78 mm 115 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 2.66 kg
43100028 28 1F 113.18 mm 111.82 mm 120 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 2.83 kg
43100029 29 1F 117.23 mm 115.86 mm 120 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 3.01 kg
43100030 30 1F 121.29 mm 119.9 mm 128 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 3.19 kg
43100032 32 1F 129.3 mm 127.99 mm 135 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 3.57 kg
43100033 33 1F 133.4 mm 132.03 mm 142 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 3.79 kg
43100034 34 1F 137.45 mm 136.07 mm 142 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 3.99 kg
43100035 35 1F 141.49 mm 140.12 mm 150 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 4.2 kg
43100036 36 1F 145.54 mm 144.16 mm 150 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 4.44 kg
43100038 38 1F 153.62 mm 152.24 mm 158 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 4.9 kg
43100040 40 1F 161.7 mm 160.33 mm 168 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 5.39 kg
43100042 42 1F 169.79 mm 168.41 mm 180 mm 80 mm 31.8 mm 45 mm 14 mm Steel C 45 5.89 kg
43100044 44 5F 177.88 mm 176.5 mm 184 mm 80 mm 31.8 mm 50 mm 14 mm Cast iron 3.37 kg
43100045 45 5F 181.91 mm 180.54 mm 192 mm 80 mm 31.8 mm 50 mm 14 mm Cast iron 3.57 kg
43100048 48 5F 194.03 mm 192.67 mm 200 mm 90 mm 31.8 mm 50 mm 14 mm Cast iron 4.1 kg
43100050 50 4 202.13 mm 200.75 mm — 90 mm 31.8 mm 50 mm 19 mm Cast iron 4.24 kg
43100052 52 4 210.21 mm 208.84 mm — 90 mm 31.8 mm 50 mm 19 mm Cast iron 4.32 kg
43100058 58 4 234.47 mm 233.09 mm — 90 mm 31.8 mm 50 mm 19 mm Cast iron 4.61 kg
43100060 60 4 242.55 mm 241.18 mm — 120 mm 31.8 mm 50 mm 19 mm Cast iron 5.3 kg
43100070 70 4 282.98 mm 281.61 mm — 120 mm 31.8 mm 55 mm 19 mm Cast iron 6.13 kg
43100072 72 4 291.06 mm 289.69 mm — 120 mm 31.8 mm 55 mm 19 mm Cast iron 7.47 kg
43100084 84 4 339.57 mm 338.2 mm — 120 mm 31.8 mm 55 mm 19 mm Cast iron 8.52 kg
43100096 96 4 388.09 mm 386.71 mm — 120 mm 31.8 mm 60 mm 19 mm Cast iron 10.25 kg
43100120 120 4 485.12 mm 483.73 mm — 120 mm 31.8 mm 60 mm 19 mm Cast iron 13.09 kg

Product Information

Pitch
12.7 mm
