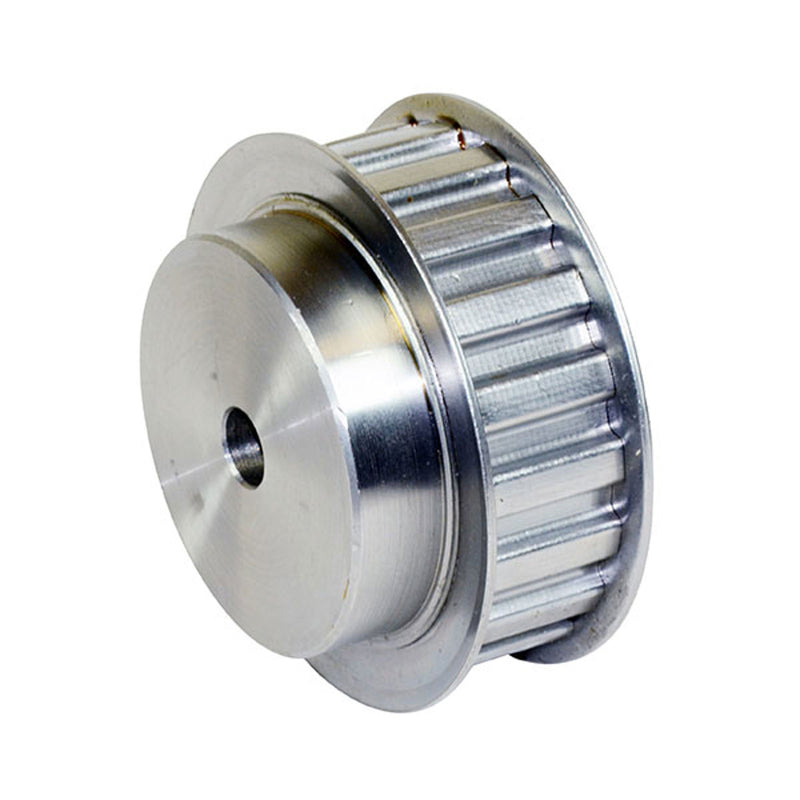

Chiaravalli Timing Pulley H 300 — Pilot Bore (1/2″ pitch) — product photo
Chiaravalli

Timing Pulley H 300 — Pilot Bore (1/2″ pitch)

Timing Pulleys

H 300 timing pulley (1/2″ pitch) with pilot bore, teeth Z 14–120. Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
43300014 14 1F 56.59 mm 55.22 mm 64 mm 42 mm 85.7 mm 100 mm — Steel C 45 1.64 kg
43300015 15 1F 60.64 mm 59.27 mm 66.5 mm 45 mm 85.7 mm 100 mm — Steel C 45 1.91 kg
43300016 16 1F 64.67 mm 63.31 mm 70 mm 45 mm 85.7 mm 100 mm — Steel C 45 2.16 kg
43300017 17 1F 68.72 mm 67.35 mm 75 mm 45 mm 85.7 mm 100 mm — Steel C 45 2.43 kg
43300018 18 1F 72.77 mm 71.39 mm 79 mm 55 mm 85.7 mm 100 mm — Steel C 45 2.8 kg
43300019 19 1F 76.81 mm 75.44 mm 82.5 mm 60 mm 85.7 mm 100 mm — Steel C 45 3.16 kg
43300020 20 1F 80.85 mm 79.48 mm 87 mm 62 mm 85.7 mm 100 mm — Steel C 45 3.5 kg
43300021 21 1F 84.89 mm 83.52 mm 91 mm 65 mm 85.7 mm 100 mm — Steel C 45 3.87 kg
43300022 22 1F 88.93 mm 87.56 mm 94 mm 68 mm 85.7 mm 100 mm — Steel C 45 4.26 kg
43300023 23 1F 92.98 mm 91.61 mm 97 mm 72 mm 85.7 mm 100 mm — Steel C 45 4.68 kg
43300024 24 1F 97.03 mm 95.65 mm 102 mm 72 mm 85.7 mm 100 mm — Steel C 45 5.08 kg
43300025 25 1F 101.06 mm 99.69 mm 106 mm 72 mm 85.7 mm 100 mm — Steel C 45 5.45 kg
43300026 26 1F 105.11 mm 103.73 mm 112 mm 80 mm 85.7 mm 100 mm — Steel C 45 6.01 kg
43300027 27 1F 109.15 mm 107.78 mm 115 mm 80 mm 85.7 mm 100 mm — Steel C 45 6.45 kg
43300028 28 1F 113.18 mm 111.82 mm 120 mm 80 mm 85.7 mm 100 mm — Steel C 45 6.91 kg
43300030 30 1F 121.29 mm 119.9 mm 128 mm 80 mm 85.7 mm 100 mm — Steel C 45 7.9 kg
43300032 32 1F 129.3 mm 127.99 mm 135 mm 80 mm 85.7 mm 100 mm — Steel C 45 8.92 kg
43300033 33 1F 133.4 mm 132.03 mm 142 mm 80 mm 85.7 mm 100 mm — Steel C 45 9.46 kg
43300034 34 1F 137.45 mm 136.07 mm 142 mm 80 mm 85.7 mm 100 mm — Steel C 45 10.04 kg
43300035 35 1F 141.49 mm 140.12 mm 150 mm 80 mm 85.7 mm 100 mm — Steel C 45 10.62 kg
43300036 36 1F 145.54 mm 144.16 mm 150 mm 80 mm 85.7 mm 100 mm — Steel C 45 11.24 kg
43300038 38 1F 153.62 mm 152.24 mm 158 mm 80 mm 85.7 mm 100 mm — Steel C 45 12.44 kg
43300040 40 1F 161.7 mm 160.33 mm 168 mm 80 mm 85.7 mm 100 mm — Steel C 45 13.8 kg
43300042 42 1F 169.79 mm 168.41 mm 180 mm 80 mm 85.7 mm 100 mm — Steel C 45 15.27 kg
43300044 44 4 177.88 mm 176.5 mm — 80 mm 85.7 mm 100 mm 24 mm Cast iron 7.22 kg
43300048 48 4 194.03 mm 192.67 mm — 90 mm 85.7 mm 100 mm 24 mm Cast iron 8.6 kg
43300050 50 4 202.13 mm 200.75 mm — 90 mm 85.7 mm 100 mm 24 mm Cast iron 8.99 kg
43300058 58 4 234.47 mm 233.09 mm — 90 mm 85.7 mm 100 mm 24 mm Cast iron 10.04 kg
43300060 70 4 242.55 mm 241.18 mm — 120 mm 85.7 mm 100 mm 24 mm Cast iron 11.18 kg
43300072 72 4 291.06 mm 289.69 mm — 120 mm 85.7 mm 100 mm 28 mm Cast iron 15.07 kg
43300084 84 4 339.57 mm 338.2 mm — 120 mm 85.7 mm 100 mm 28 mm Cast iron 16.97 kg
43300096 96 4 388.09 mm 386.71 mm — 120 mm 85.7 mm 100 mm 28 mm Cast iron 19.86 kg
43300120 120 4 485.12 mm 483.73 mm — 120 mm 85.7 mm 100 mm 28 mm Cast iron 25.91 kg

Product Information

Pitch
12.7 mm
