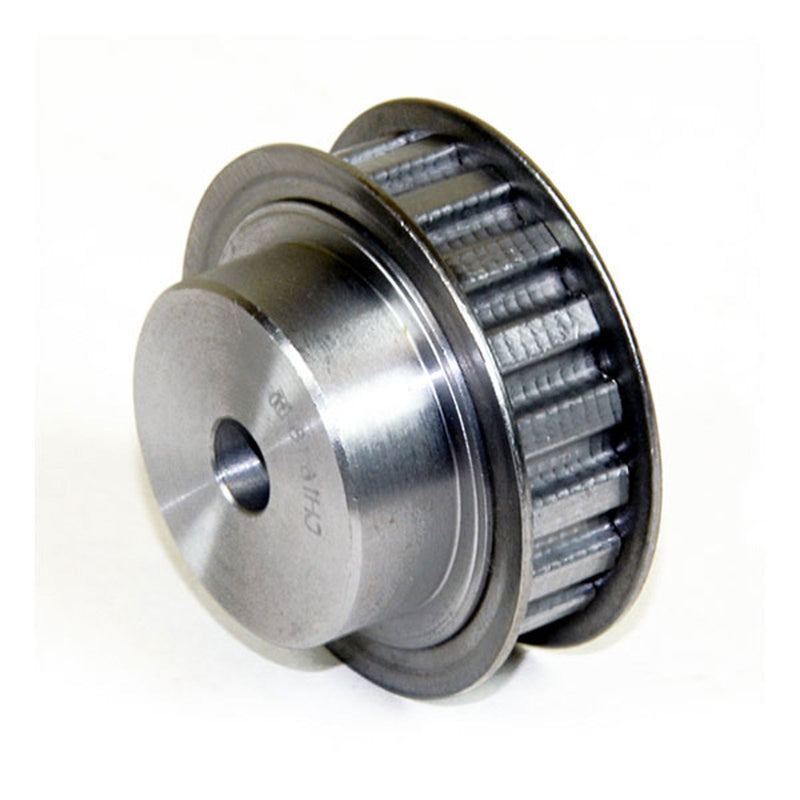

Chiaravalli Timing Pulley L 075 — Pilot Bore (3/8″ pitch) — product photo
Chiaravalli

Timing Pulley L 075 — Pilot Bore (3/8″ pitch)

Timing Pulleys

L 075 timing pulley (3/8″ pitch) with pilot bore, teeth Z 10–96. Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore dMaterial Weight CAD
42075010 10 1F 30.33 mm 29.56 mm 37 mm 20 mm 25.4 mm 38 mm 8 mm Steel C 45 0.14 kg
42075011 11 1F 33.35 mm 32.59 mm 37 mm 22 mm 25.4 mm 38 mm 8 mm Steel C 45 0.18 kg
42075012 12 1F 36.37 mm 35.62 mm 43 mm 24 mm 25.4 mm 38 mm 8 mm Steel C 45 0.22 kg
42075013 13 1F 39.41 mm 38.65 mm 44 mm 28 mm 25.4 mm 38 mm 8 mm Steel C 45 0.26 kg
42075014 14 1F 42.44 mm 41.68 mm 48 mm 28 mm 25.4 mm 38 mm 11 mm Steel C 45 0.3 kg
42075015 15 1F 45.48 mm 44.72 mm 51 mm 34 mm 25.4 mm 38 mm 11 mm Steel C 45 0.37 kg
42075016 16 1F 48.51 mm 47.75 mm 54 mm 36 mm 25.4 mm 38 mm 11 mm Steel C 45 0.43 kg
42075017 17 1F 51.54 mm 50.78 mm 57 mm 36 mm 25.4 mm 38 mm 11 mm Steel C 45 0.46 kg
42075018 18 1F 54.59 mm 53.81 mm 60 mm 40 mm 25.4 mm 38 mm 11 mm Steel C 45 0.54 kg
42075019 19 1F 57.61 mm 56.84 mm 64 mm 40 mm 25.4 mm 38 mm 11 mm Steel C 45 0.58 kg —
42075020 20 1F 60.63 mm 59.88 mm 66.5 mm 40 mm 25.4 mm 38 mm 11 mm Steel C 45 0.64 kg
42075021 21 1F 63.68 mm 62.91 mm 70 mm 45 mm 25.4 mm 38 mm 11 mm Steel C 45 0.71 kg
42075022 22 1F 66.7 mm 65.94 mm 75 mm 45 mm 25.4 mm 38 mm 11 mm Steel C 45 0.79 kg
42075023 23 1F 69.73 mm 68.97 mm 79 mm 55 mm 25.4 mm 38 mm 11 mm Steel C 45 0.94 kg
42075024 24 1F 72.77 mm 72 mm 79 mm 55 mm 25.4 mm 38 mm 11 mm Steel C 45 1.0 kg
42075025 25 1F 75.8 mm 75.04 mm 82.5 mm 58 mm 25.4 mm 38 mm 11 mm Steel C 45 1.1 kg
42075026 26 1F 78.84 mm 78.07 mm 86 mm 58 mm 25.4 mm 38 mm 11 mm Steel C 45 1.16 kg
42075027 27 1F 81.86 mm 81.1 mm 86 mm 58 mm 25.4 mm 38 mm 11 mm Steel C 45 1.22 kg
42075028 28 1F 84.89 mm 84.13 mm 91 mm 58 mm 25.4 mm 38 mm 11 mm Steel C 45 1.3 kg
42075030 30 1F 90.96 mm 90.2 mm 97 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 1.47 kg
42075032 32 1F 97.03 mm 96.26 mm 102 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 1.75 kg
42075033 33 1F 100.05 mm 99.29 mm 106 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 1.85 kg
42075034 34 1F 103.08 mm 102.32 mm 112 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 1.93 kg
42075035 35 1F 106.12 mm 105.35 mm 112 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 2.03 kg
42075036 36 1F 109.14 mm 108.39 mm 115 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 2.14 kg
42075040 40 1F 121.29 mm 120.51 mm 128 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 2.56 kg
42075042 42 1F 127.34 mm 126.57 mm 135 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 2.81 kg
42075044 44 1F 133.4 mm 132.64 mm 142 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 3.02 kg
42075045 45 1F 136.44 mm 135.67 mm 142 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 3.16 kg
42075048 48 1F 145.54 mm 144.77 mm 150 mm 70 mm 25.4 mm 38 mm 11 mm Steel C 45 3.57 kg
42075050 50 4 151.6 mm 150.83 mm — 70 mm 25.4 mm 38 mm 14 mm Cast iron 2.1 kg
42075052 52 4 157.66 mm 156.9 mm — 70 mm 25.4 mm 38 mm 14 mm Cast iron 2.13 kg
42075056 56 4 169.79 mm 169.02 mm — 70 mm 25.4 mm 38 mm 14 mm Cast iron 2.27 kg
42075057 57 4 172.82 mm 172.06 mm — 70 mm 25.4 mm 38 mm 14 mm Cast iron 2.28 kg
42075060 60 4 181.92 mm 181.15 mm — 75 mm 25.4 mm 45 mm 14 mm Cast iron 2.7 kg
42075072 72 4 218.29 mm 217.53 mm — 75 mm 25.4 mm 45 mm 14 mm Cast iron 3.19 kg
42075084 84 4 254.69 mm 253.92 mm — 75 mm 25.4 mm 45 mm 14 mm Cast iron 3.64 kg
42075096 96 4 291.06 mm 290.3 mm — 75 mm 25.4 mm 45 mm 14 mm Cast iron 4.04 kg

Product Information

Pitch
9.525 mm
