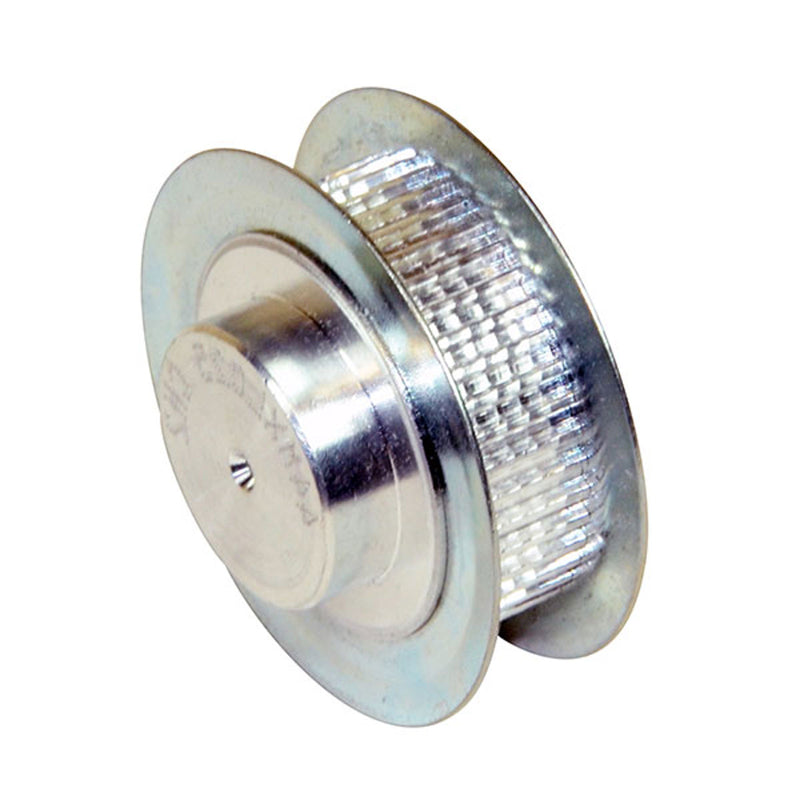

Timing Pulley MXL 025 — Pilot Bore (0.080″ pitch)

Name: Chiaravalli Timing Pulley MXL 025 — Pilot Bore (0.080″ pitch)
Brand: Chiaravalli

Timing Pulleys

MXL 025 timing pulley (0.080″ pitch) with pilot bore, teeth Z 16–72. Material: Aluminium.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Select a row to add it to your quote

Teeth

Code	Z	Exec.	Dp	De	Df flange	Dm hub	F	L	Ø bore d	Weight
`42025116`	`16`	`0F`	`10.35` mm	`9.84` mm	`15` mm	`15` mm	`8.5` mm	`16` mm	—	`0.01` kg
`42025118`	`18`	`0F`	`11.64` mm	`11.12` mm	`16` mm	`16` mm	`8.5` mm	`16` mm	—	`0.01` kg
`42025120`	`20`	`0F`	`12.94` mm	`12.43` mm	`16` mm	`16` mm	`8.5` mm	`16` mm	—	`0.01` kg
`42025122`	`22`	`1F`	`14.23` mm	`13.72` mm	`17` mm	`10` mm	`11` mm	`16` mm	`3` mm	`0.01` kg
`42025124`	`24`	`1F`	`15.52` mm	`15.01` mm	`20` mm	`10` mm	`11` mm	`16` mm	`3` mm	`0.01` kg
`42025128`	`28`	`1F`	`18.11` mm	`17.6` mm	`25` mm	`11` mm	`11` mm	`16` mm	`3` mm	`0.01` kg
`42025130`	`30`	`1F`	`19.4` mm	`18.9` mm	`25` mm	`12` mm	`11` mm	`16` mm	`4` mm	`0.02` kg
`42025132`	`32`	`1F`	`20.7` mm	`20.19` mm	`26` mm	`14` mm	`11` mm	`16` mm	`4` mm	`0.02` kg
`42025136`	`36`	`1F`	`23.29` mm	`22.78` mm	`28` mm	`16` mm	`11` mm	`16` mm	`4` mm	`0.02` kg
`42025140`	`40`	`1F`	`25.87` mm	`25.37` mm	`32` mm	`18` mm	`11` mm	`16` mm	`4` mm	`0.03` kg
`42025142`	`42`	`1F`	`27.17` mm	`26.67` mm	`32` mm	`18` mm	`11` mm	`16` mm	`5` mm	`0.03` kg
`42025144`	`44`	`1F`	`28.46` mm	`27.95` mm	`36` mm	`18` mm	`11` mm	`16` mm	`5` mm	`0.03` kg
`42025148`	`48`	`2`	`31.05` mm	`30.54` mm	—	`20` mm	`11` mm	`16` mm	`5` mm	`0.03` kg
`42025160`	`60`	`2`	`38.81` mm	`38.3` mm	—	`24` mm	`11` mm	`16` mm	`5` mm	`0.04` kg
`42025172`	`72`	`2`	`46.57` mm	`46.06` mm	—	`25` mm	`11` mm	`16` mm	`6` mm	`0.05` kg
