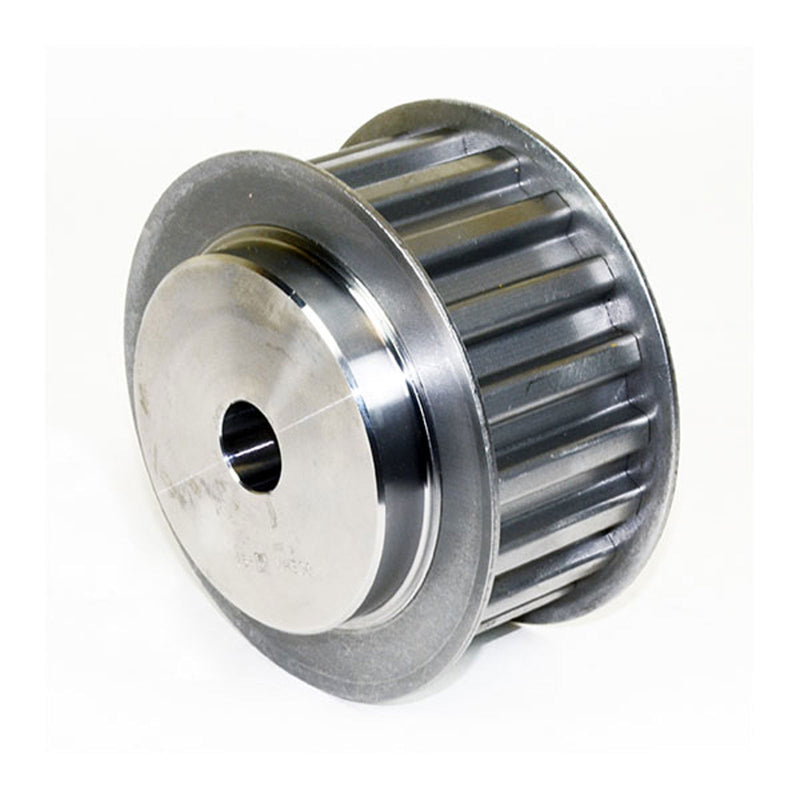

Timing Pulley XH 300 — Pilot Bore (7/8″ pitch)

Name: Chiaravalli Timing Pulley XH 300 — Pilot Bore (7/8″ pitch)
Brand: Chiaravalli

Timing Pulleys

XH 300 timing pulley (7/8″ pitch) with pilot bore, teeth Z 18–34. Material: Steel c 45.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Select a row to add it to your quote

Teeth

Code	Z	Exec.	Dp	De	Df flange	Dm hub	F	L	Ø bore d	Weight
`44300018`	`18`	`1F`	`127.34` mm	`124.55` mm	`140` mm	`100` mm	`90.5` mm	`110` mm	`28` mm	`8.9` kg
`44300019`	`19`	`1F`	`134.41` mm	`131.62` mm	`146` mm	`100` mm	`90.5` mm	`110` mm	`28` mm	`9.2` kg
`44300020`	`20`	`1F`	`141.49` mm	`138.69` mm	`155` mm	`100` mm	`90.5` mm	`110` mm	`28` mm	`10.61` kg
`44300021`	`21`	`1F`	`148.56` mm	`145.77` mm	`160` mm	`110` mm	`90.5` mm	`110` mm	`28` mm	`11.87` kg
`44300022`	`22`	`1F`	`155.64` mm	`152.84` mm	`170` mm	`110` mm	`90.5` mm	`110` mm	`28` mm	`13.08` kg
`44300024`	`24`	`1F`	`169.79` mm	`166.99` mm	`184` mm	`120` mm	`90.5` mm	`110` mm	`28` mm	`15.77` kg
`44300025`	`25`	`1F`	`176.86` mm	`174.07` mm	`188` mm	`120` mm	`90.5` mm	`110` mm	`28` mm	`17.13` kg
`44300026`	`26`	`1F`	`183.93` mm	`181.14` mm	`198` mm	`120` mm	`90.5` mm	`110` mm	`28` mm	`18.55` kg
`44300027`	`27`	`1F`	`191.01` mm	`188.22` mm	`205` mm	`120` mm	`90.5` mm	`110` mm	`28` mm	`19.9` kg
`44300028`	`28`	`1F`	`198.09` mm	`195.29` mm	`212` mm	`150` mm	`90.5` mm	`110` mm	`28` mm	`22.27` kg
`44300030`	`30`	`1F`	`212.23` mm	`209.44` mm	`227` mm	`150` mm	`90.5` mm	`110` mm	`28` mm	`25.39` kg
`44300032`	`32`	`1F`	`226.38` mm	`223.59` mm	`240` mm	`150` mm	`90.5` mm	`110` mm	`28` mm	`28.73` kg
`44300034`	`34`	`1F`	`240.53` mm	`237.74` mm	`256` mm	`150` mm	`90.5` mm	`110` mm	`28` mm	`34.2` kg
