Timing Pulley XL 037 — Pilot Bore, Steel (1/5″ pitch)

Timing Pulleys

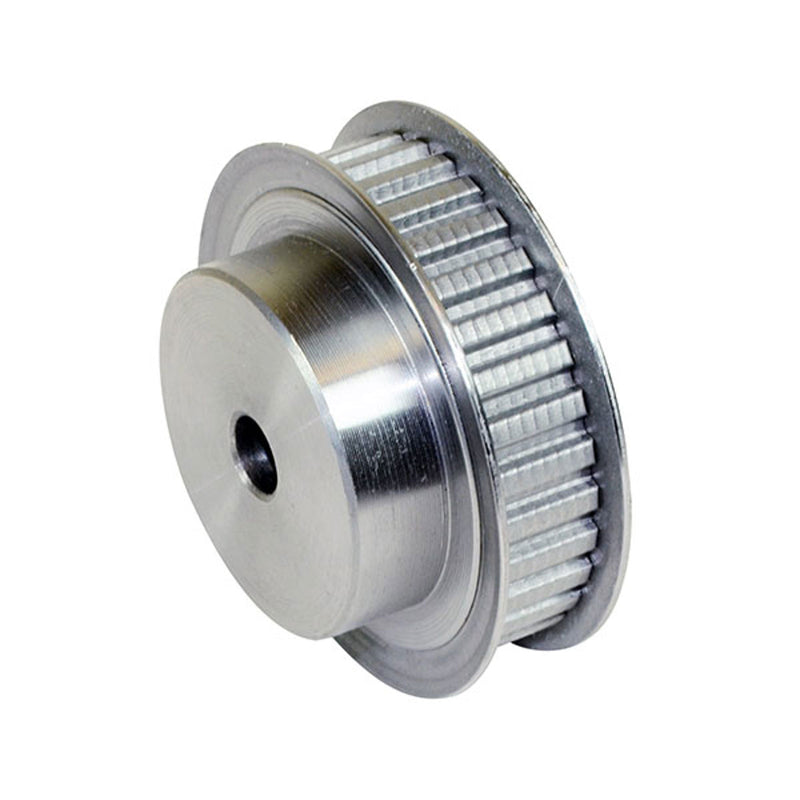

XL 037 timing pulley (1/5″ pitch) with pilot bore in steel, teeth Z 10–35. The catalogue lists this type in both aluminium and steel — this is the steel execution.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code ZExec.DpDeDf flangeDm hubFLØ bore d Weight CAD
42037010 10 1F 16.17 mm 15.66 mm 23 mm 9.5 mm 14.3 mm 20 mm — 0.028 kg
42037011 11 1F 17.79 mm 17.28 mm 23 mm 9.5 mm 14.3 mm 20 mm — 0.028 kg
42037012 12 1F 19.4 mm 18.9 mm 25 mm 10 mm 14.3 mm 20 mm — 0.028 kg
42037013 13 1F 21.02 mm 20.51 mm 25 mm 10 mm 14.3 mm 20 mm — 0.028 kg
42037014 14 1F 22.64 mm 22.13 mm 28 mm 15 mm 14.3 mm 20 mm — 0.056 kg
42037015 15 1F 24.26 mm 23.75 mm 28 mm 15 mm 14.3 mm 20 mm — 0.056 kg
42037016 16 1F 25.87 mm 25.36 mm 32 mm 16 mm 14.3 mm 20 mm — 0.08 kg
42037017 17 1F 27.49 mm 26.98 mm 32 mm 20 mm 14.3 mm 20 mm — 0.08 kg
42037018 18 1F 29.11 mm 28.6 mm 35 mm 20 mm 14.3 mm 20 mm — 0.1 kg
42037019 19 1F 30.72 mm 30.22 mm 35 mm 20 mm 14.3 mm 22 mm — 0.1 kg
42037020 20 1F 32.34 mm 31.83 mm 38 mm 23.5 mm 14.3 mm 22 mm — 0.14 kg
42037021 21 1F 33.96 mm 33.45 mm 38 mm 23.5 mm 14.3 mm 22 mm — 0.14 kg
42037022 22 1F 35.57 mm 35.07 mm 41 mm 25 mm 14.3 mm 22 mm 6 mm 0.16 kg
42037024 24 1F 38.81 mm 38.3 mm 44 mm 30 mm 14.3 mm 22 mm 6 mm 0.16 kg
42037026 26 1F 42.04 mm 41.53 mm 48 mm 30 mm 14.3 mm 22 mm 8 mm 0.25 kg
42037027 27 1F 43.66 mm 43.15 mm 48 mm 30 mm 14.3 mm 22 mm 8 mm 0.25 kg
42037028 28 1F 45.28 mm 44.77 mm 51 mm 34 mm 14.3 mm 22 mm 8 mm 0.28 kg
42037030 30 1F 48.51 mm 48 mm 54 mm 38 mm 14.3 mm 22 mm 8 mm 0.3 kg
42037032 32 1F 51.74 mm 51.24 mm 57 mm 38 mm 14.3 mm 22 mm 8 mm 0.3 kg
42037034 34 1F 54.98 mm 54.47 mm 61 mm 38 mm 14.3 mm 25 mm 8 mm 0.3 kg
42037035 35 1F 56.6 mm 56.09 mm 61 mm 38 mm 14.3 mm 25 mm 8 mm 0.4 kg

Product Information

Material
Steel C 45
Pitch
5.08 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
