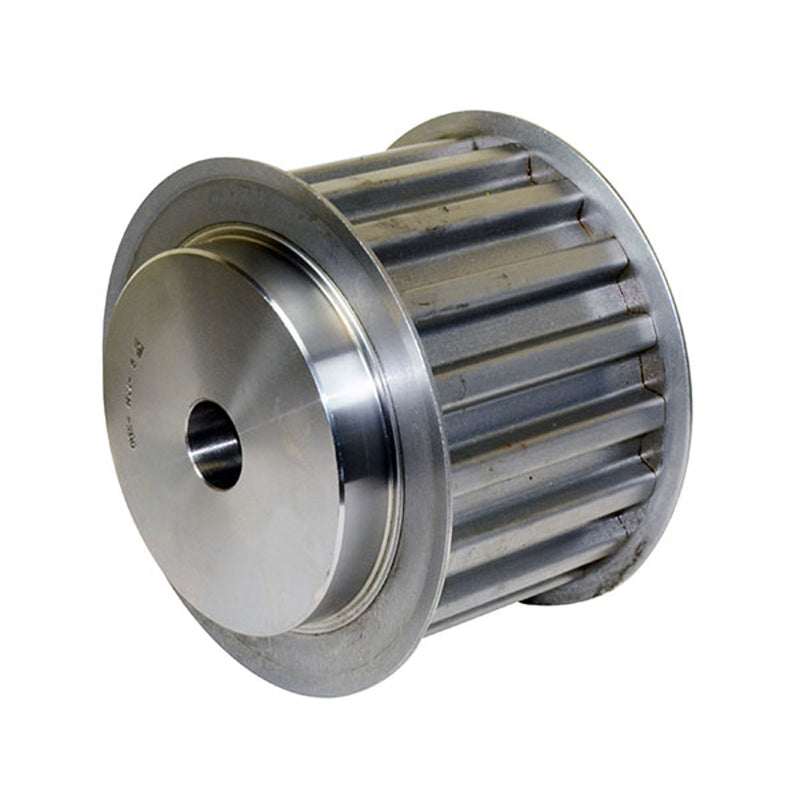

Timing Pulley XXH 400 — Pilot Bore (1¼″ pitch)

Name: Chiaravalli Timing Pulley XXH 400 — Pilot Bore (1¼″ pitch)
Brand: Chiaravalli

Timing Pulleys

XXH 400 timing pulley (1¼″ pitch) with pilot bore, teeth Z 18–26. Material: Steel c 45.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Select a row to add it to your quote

Teeth

Code	Z	Exec.	Dp	De	Df flange	Dm hub	F	L	Ø bore d	Weight
`44800018`	`18`	`1F`	`181.91` mm	`178.87` mm	`198` mm	`140` mm	`118.2` mm	`140` mm	`32` mm	`31.83` kg
`44800020`	`20`	`1F`	`202.13` mm	`199.08` mm	`212` mm	`150` mm	`118.2` mm	`140` mm	`32` mm	`38.88` kg
`44800022`	`22`	`1F`	`222.34` mm	`219.29` mm	`240` mm	`150` mm	`118.2` mm	`140` mm	`32` mm	`46.6` kg
`44800024`	`24`	`1F`	`242.55` mm	`239.5` mm	`267` mm	`150` mm	`118.2` mm	`140` mm	`32` mm	`55.1` kg
`44800026`	`26`	`1F`	`262.76` mm	`259.79` mm	`290` mm	`150` mm	`118.2` mm	`140` mm	`32` mm	`64.25` kg
