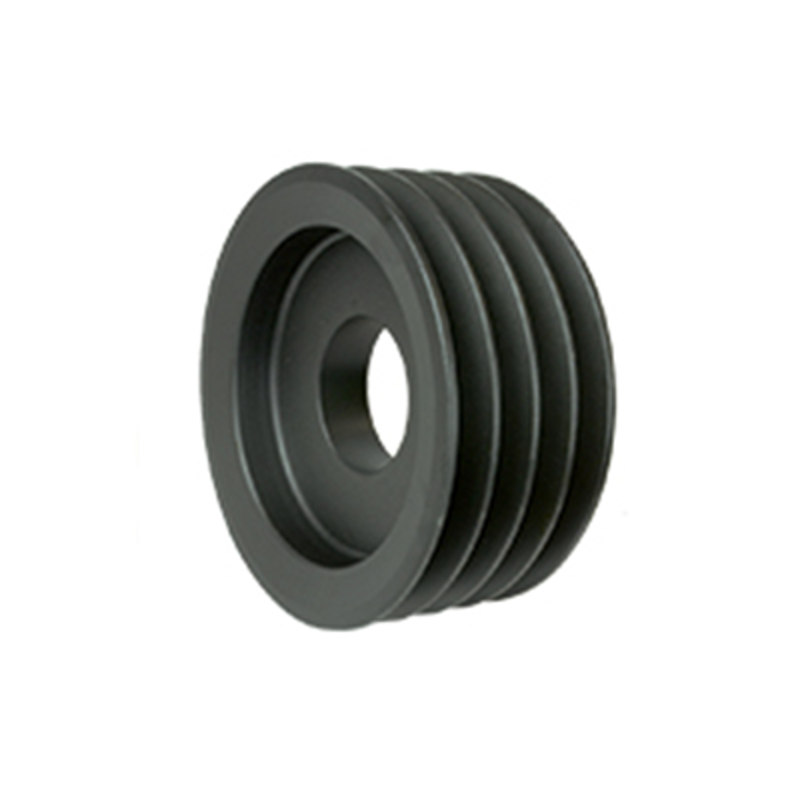

Chiaravalli V-Belt Pulley for Locking Devices SPA 4 Grooves — product photo
Chiaravalli

V-Belt Pulley for Locking Devices SPA 4 Grooves

Cast-iron SPA V-belt pulley with 4 grooves, bored Ø55, Ø65 or Ø80 H8 to take a shaft locking element. Execution D = disc, R = spokes, P = solid (P/1 solid with the hub on one side), as drawn.

Product Configuration

Select a row to add it to your quote

Code DpBore ØExec.FLØ MRØ DiS Weight CAD
91261254 125 mm 65 H8 mm P/1 65 mm 27 mm — 38 mm 92 mm — 2.4 kg
91261403 140 mm 65 H8 mm P/1 65 mm 27 mm — 38 mm 107 mm — 1.5 kg
91261504 150 mm 65 H8 mm P/1 65 mm 27 mm — 38 mm 117 mm — 2.15 kg
91262004 200 mm 65 H8 mm D 65 mm 27 mm 120 mm 19 mm 167 mm 14 mm 3.3 kg
91262504 250 mm 65 H8 mm R 65 mm 27 mm 130 mm 19 mm 217 mm 14 mm 4.2 kg
91283004 300 mm 80 H8 mm R 65 mm 27 mm 130 mm 19 mm 267 mm 14 mm 3.4 kg

Product Information

Material
Cast iron
