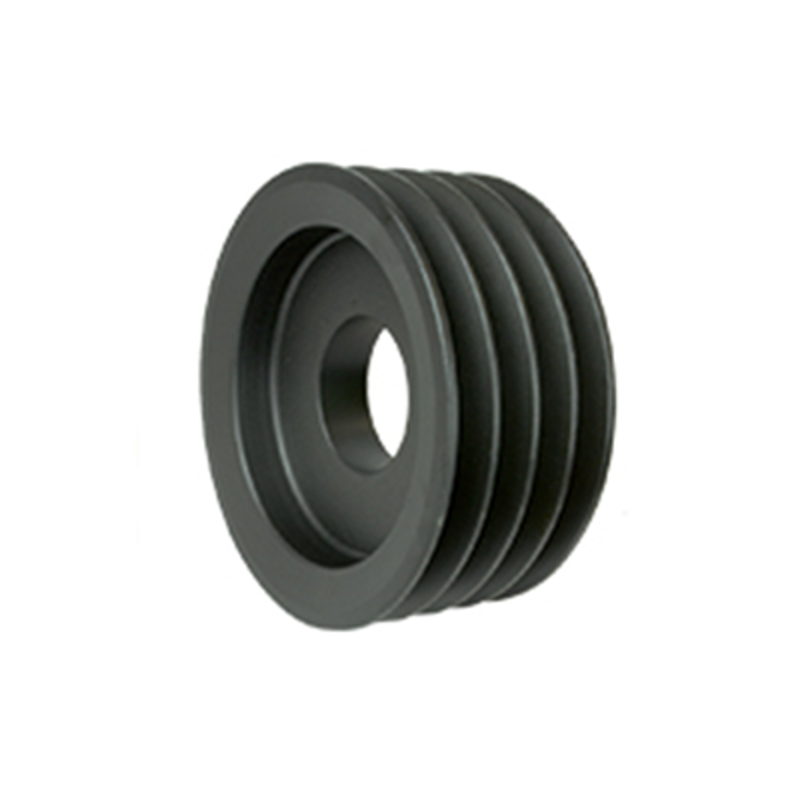

Chiaravalli V-Belt Pulley for Locking Devices SPB 4 Grooves — product photo
Chiaravalli

V-Belt Pulley for Locking Devices SPB 4 Grooves

Cast-iron SPB V-belt pulley with 4 grooves, bored Ø55, Ø65 or Ø80 H8 to take a shaft locking element. Execution D = disc, R = spokes, P = solid (P/1 solid with the hub on one side), as drawn.

Product Configuration

Select a row to add it to your quote

Code DpBore ØExec.FLØ MRØ DiS Weight CAD
91361204 120 mm 65 H8 mm P/1 82 mm 27 mm — 55 mm 78 mm — 4.2 kg
91361304 130 mm 65 H8 mm P/1 82 mm 27 mm — 55 mm 90 mm — 5.0 kg
91381304 130 mm 80 H8 mm P/1 82 mm 27 mm — 55 mm 90 mm — 5.0 kg
91361404 140 mm 65 H8 mm P/1 82 mm 27 mm — 55 mm 98 mm — 5.3 kg
91381404 140 mm 80 H8 mm P/1 82 mm 27 mm — 55 mm 98 mm — 5.3 kg
91361504 150 mm 65 H8 mm P/1 82 mm 27 mm — 55 mm 108 mm — 5.5 kg
91381504 150 mm 80 H8 mm P/1 82 mm 27 mm — 55 mm 108 mm — 5.5 kg
91381604 160 mm 80 H8 mm P/1 82 mm 27 mm — 55 mm 118 mm — 5.7 kg
91381704 170 mm 80 H8 mm D 82 mm 27 mm — 27.5 mm 128 mm 27 mm 5.9 kg
91361804 180 mm 65 H8 mm D 82 mm 27 mm — 27.5 mm 138 mm 27 mm 6.2 kg
91381804 180 mm 80 H8 mm D 82 mm 27 mm — 27.5 mm 138 mm 27 mm 6.2 kg
91381904 190 mm 80 H8 mm D 82 mm 27 mm — 27.5 mm 148 mm 27 mm 8.0 kg
91362004 200 mm 65 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 158 mm 15 mm 9.0 kg
91382004 200 mm 80 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 158 mm 15 mm 9.0 kg
91362124 212 mm 65 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 170 mm 15 mm 10.0 kg
91382124 212 mm 80 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 170 mm 15 mm 10.0 kg
91362254 225 mm 65 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 183 mm 15 mm 10.5 kg
91382254 225 mm 80 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 183 mm 15 mm 10.5 kg
91362504 250 mm 65 H8 mm D 82 mm 27 mm 130 mm 27.5 mm 208 mm 16 mm 12.0 kg
91382504 250 mm 80 H8 mm D 82 mm 27 mm 130 mm 27.5 mm 208 mm 16 mm 12.0 kg
91382804 280 mm 80 H8 mm D 82 mm 27 mm 120 mm 27.5 mm 238 mm 16 mm 14.0 kg
91383004 300 mm 80 H8 mm R 82 mm 27 mm 130 mm 27.5 mm 258 mm 20 mm 16.0 kg
91383154 315 mm 80 H8 mm R 82 mm 27 mm 130 mm 27.5 mm 273 mm 20 mm 20.0 kg

Product Information

Material
Cast iron
