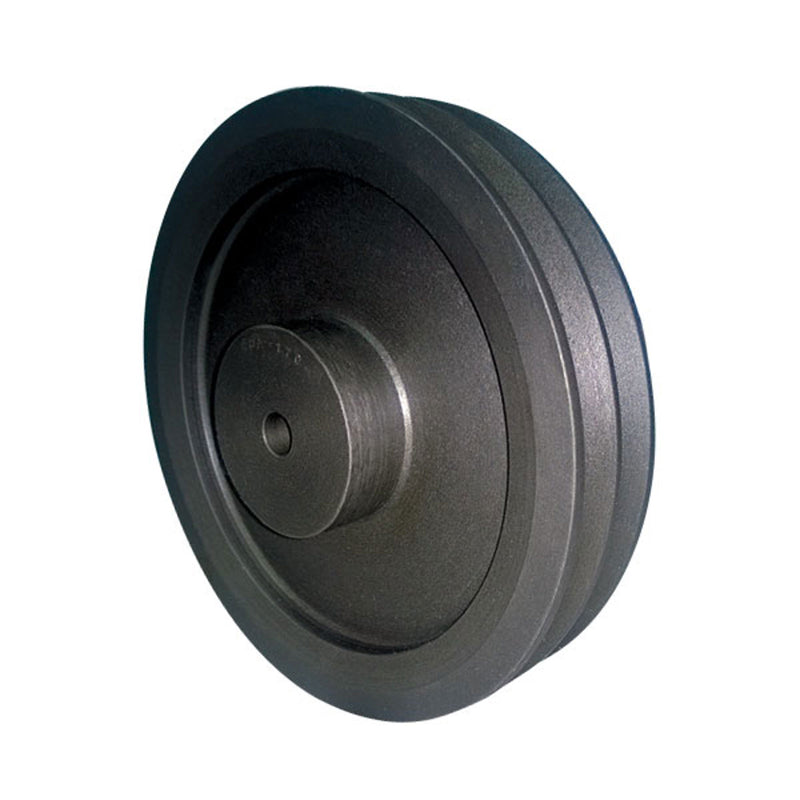

Chiaravalli V-Belt Pulley Pilot Bore SPC 2 Grooves — product photo
Chiaravalli

V-Belt Pulley Pilot Bore SPC 2 Grooves

Cast-iron solid-hub SPC V-belt pulley with 2 grooves, supplied with a pilot bore (d H9) for machining to size. Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPONLDSBTyped H9 Weight CAD
91421202 SPC120-2 120 mm 129.6 mm — — — — 59.5 mm 7 15 mm 3.9 kg
91421402 SPC140-2 140 mm 149.6 mm — — — — 59.5 mm 7 20 mm 5.3 kg
91421502 SPC150-2 150 mm 159.6 mm — — — — 59.5 mm 7 20 mm 6.16 kg
91421602 SPC160-2 160 mm 169.6 mm — — — — 59.5 mm 7 20 mm 7.13 kg
91421802 SPC180-2 180 mm 189.6 mm 80 mm — 123 mm 30 mm 59.5 mm 8 20 mm 7.82 kg
91422002 SPC200-2 200 mm 209.6 mm 80 mm 60 mm 143 mm 20 mm 59.5 mm 3 20 mm 9.71 kg
91422252 SPC225-2 225 mm 234.6 mm 88 mm 60 mm 169 mm 18 mm 59.5 mm 3 20 mm 10.13 kg
91422502 SPC250-2 250 mm 259.6 mm 92 mm 60 mm 193 mm 18 mm 59.5 mm 3 20 mm 11.93 kg
91422802 SPC280-2 280 mm 289.6 mm 92 mm 60 mm 223 mm 18 mm 59.5 mm 3 20 mm 14.18 kg
91423002 SPC300-2 300 mm 309.6 mm 92 mm 60 mm 243 mm 18 mm 59.5 mm 3 20 mm 15.8 kg

Product Information

Material
Cast iron
