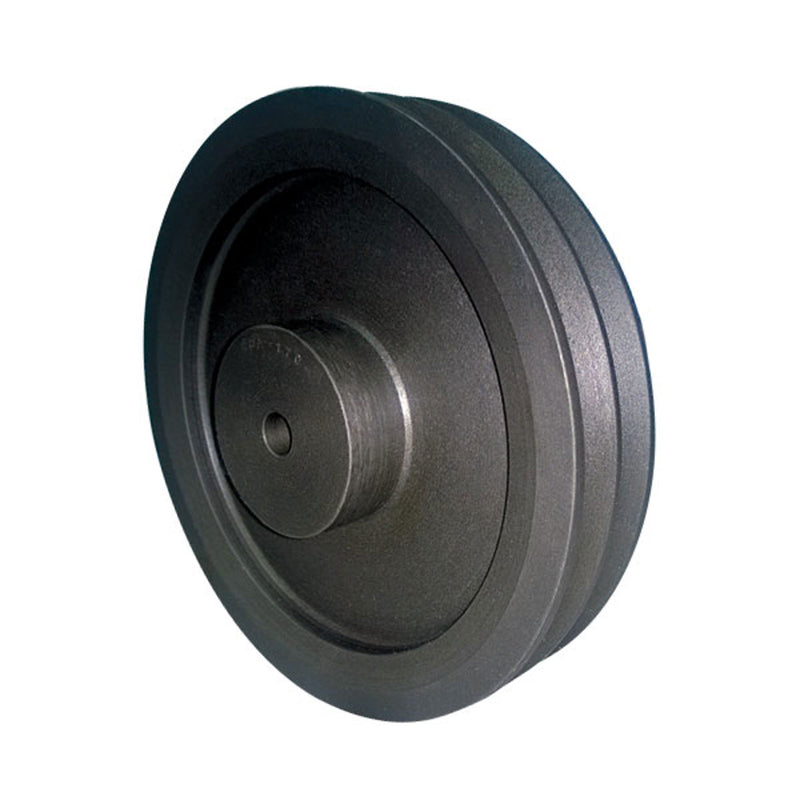

Chiaravalli V-Belt Pulley Pilot Bore SPC 5 Grooves — product photo
Chiaravalli

V-Belt Pulley Pilot Bore SPC 5 Grooves

Cast-iron solid-hub SPC V-belt pulley with 5 grooves, supplied with a pilot bore (d H9) for machining to size. Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPONLDSBTyped H9 Weight CAD
91421505 SPC150-5 150 mm 159.6 mm — 96 mm 93 mm — 136 mm 2 20 mm 12.5 kg
91421605 SPC160-5 160 mm 169.6 mm — 96 mm 103 mm — 136 mm 2 20 mm 14.5 kg
91421805 SPC180-5 180 mm 189.6 mm 82 mm 96 mm 123 mm 75 mm 136 mm 4 20 mm 16.2 kg
91422005 SPC200-5 200 mm 209.6 mm 90 mm 100 mm 143 mm 80 mm 136 mm 4 25 mm 20.23 kg
91422255 SPC225-5 225 mm 234.6 mm 90 mm 100 mm 169 mm 60 mm 136 mm 4 25 mm 22.86 kg
91422505 SPC250-5 250 mm 259.6 mm 102 mm 100 mm 193 mm 50 mm 136 mm 4 25 mm 26.7 kg
91422805 SPC280-5 280 mm 289.6 mm 102 mm 100 mm 223 mm 40 mm 136 mm 4 25 mm 29.93 kg
91423005 SPC300-5 300 mm 309.6 mm 104 mm 100 mm 243 mm 25 mm 136 mm 4 25 mm 28.4 kg

Product Information

Material
Cast iron
