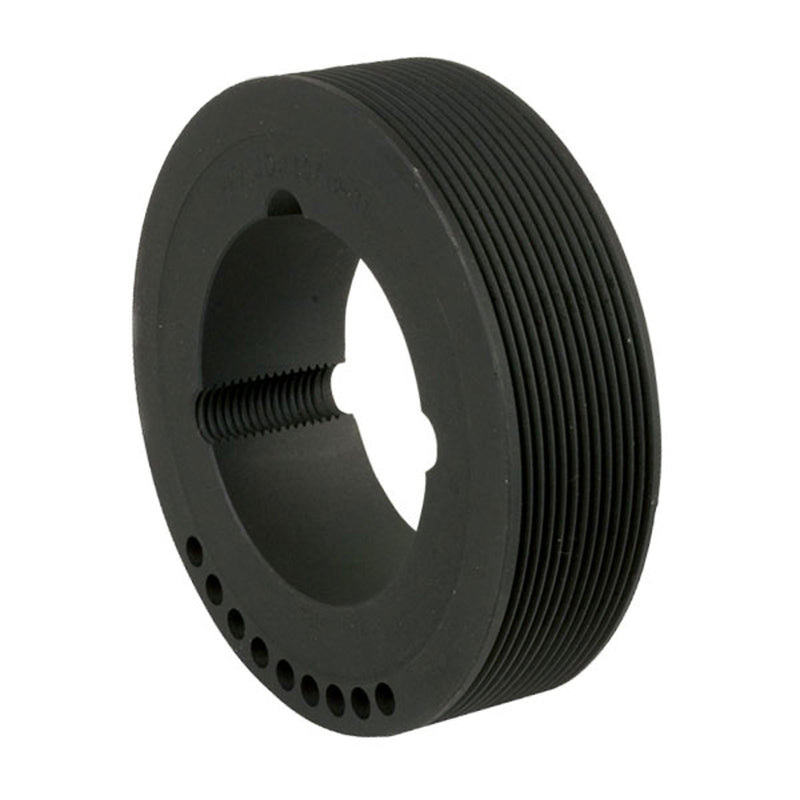

Chiaravalli V-Belt Pulley PPV-J Micro-V 12 Grooves — product photo
Chiaravalli

V-Belt Pulley PPV-J Micro-V 12 Grooves

PPV-J Micro-V pulley with 12 grooves, pitch 2.34 ± 0.025 mm, F 32.5 ± 0.1 mm, P 3.38 mm. Executions 1–5 as drawn; small diameters are solid with a pilot bore d, larger ones take a taper bush.

Product Configuration

Select a row to add it to your quote

Code DeExec.BushSZDmUd Weight CAD
48112040 40 mm 1 — 41.5 mm — — — 12 mm 0.31 kg
48112045 45 mm 1 — 41.5 mm — — — 12 mm 0.41 kg
48112050 50 mm 1 — 41.5 mm — — — 12 mm 0.52 kg
48112056 56 mm 3 1108 23 mm 9.5 mm — 40 mm — 0.65 kg
48112063 63 mm 3 1108 23 mm 9.5 mm — 46 mm — 0.39 kg
48112071 71 mm 3 1108 23 mm 9.5 mm — 46 mm — 0.57 kg
48112075 75 mm 3 1610 26 mm 6.5 mm — 60 mm — 0.38 kg
48112080 80 mm 3 1610 26 mm 6.5 mm — 60 mm — 0.52 kg
48112085 85 mm 3 1610 26 mm 6.5 mm — 60 mm — 0.66 kg
48112090 90 mm 3 1610 26 mm 6.5 mm — 74 mm — 0.76 kg
48112095 95 mm 3 1610 26 mm 6.5 mm — 74 mm — 0.93 kg
48112100 100 mm 3 1610 26 mm 6.5 mm — 74 mm — 1.1 kg
48112106 106 mm 3 1610 26 mm 6.5 mm — 88 mm — 1.24 kg
48112112 112 mm 3 1610 26 mm 6.5 mm — 88 mm — 1.47 kg
48112118 118 mm 3 2012 32 mm 0.5 mm — 98 mm — 1.55 kg
48112125 125 mm 3 2012 32 mm 0.5 mm — 98 mm — 1.9 kg
48112132 132 mm 3 2012 32 mm 0.5 mm — 98 mm — 2.21 kg
48112140 140 mm 4 2517 45 mm 12.5 mm 120 mm — — 7.1 kg
48112160 160 mm 4 2517 45 mm 12.5 mm 120 mm — — 3.8 kg
48112180 180 mm 5 2517 45 mm 6.25 mm 120 mm — — 5.03 kg
48112200 200 mm 5 2517 45 mm 6.25 mm 120 mm — — 6.4 kg
48112224 224 mm 5 2517 45 mm 6.25 mm 120 mm — — 8.29 kg
48112250 250 mm 5 2517 45 mm 6.25 mm 120 mm — — 7.95 kg

Product Information

Pitch
2.34 mm
