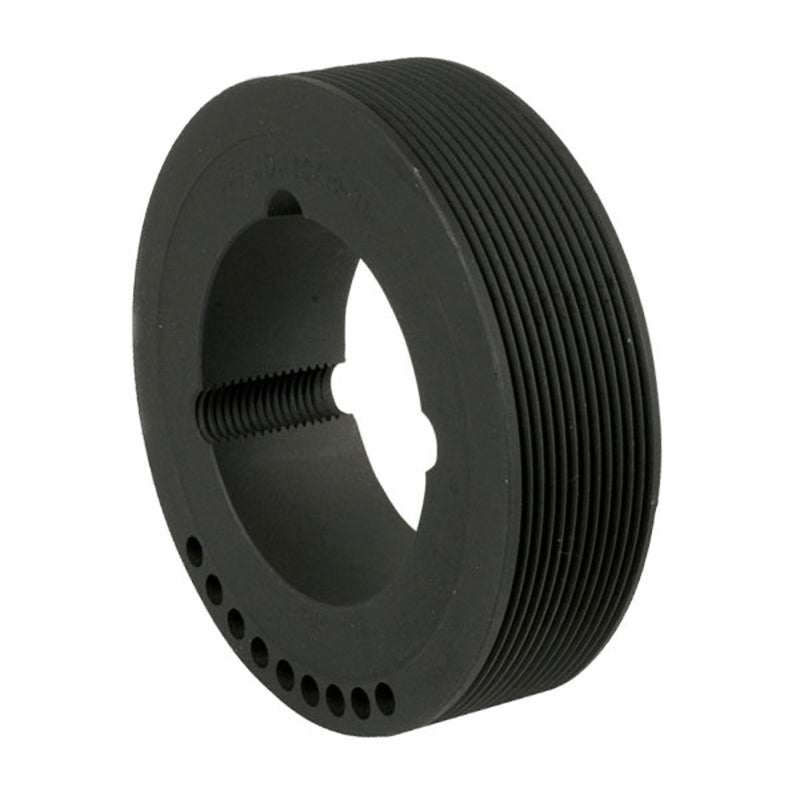

Chiaravalli V-Belt Pulley PPV-J Micro-V 16 Grooves — product photo
Chiaravalli

V-Belt Pulley PPV-J Micro-V 16 Grooves

PPV-J Micro-V pulley with 16 grooves, pitch 2.34 ± 0.025 mm, F 42 ± 0.1 mm, P 3.45 mm. Executions 1–5 as drawn; small diameters are solid with a pilot bore d, larger ones take a taper bush.

Product Configuration

Select a row to add it to your quote

Code DeExec.BushSZDmUd Weight CAD
48116040 40 mm 1 — 51 mm — — — 12 mm 0.38 kg
48116045 45 mm 1 — 51 mm — — — 12 mm 0.5 kg
48116050 50 mm 1 — 51 mm — — — 12 mm 0.63 kg
48116056 56 mm 1 — 51 mm — — — 12 mm 0.81 kg
48116063 63 mm 1 — 51 mm — — — 12 mm 1.05 kg
48116071 71 mm 2 1215 42 mm — — 55 mm — 0.63 kg
48116075 75 mm 3 1610 26 mm 16 mm — 60 mm — 0.46 kg
48116080 80 mm 3 1610 26 mm 16 mm — 60 mm — 0.64 kg
48116085 85 mm 3 1610 26 mm 16 mm — 60 mm — 0.84 kg
48116090 90 mm 3 1610 26 mm 16 mm — 74 mm — 0.87 kg
48116095 95 mm 3 1610 26 mm 16 mm — 74 mm — 1.08 kg
48116100 100 mm 3 1610 26 mm 16 mm — 74 mm — 1.32 kg
48116106 106 mm 3 1610 26 mm 16 mm — 88 mm — 1.4 kg
48116112 112 mm 3 1610 26 mm 16 mm — 88 mm — 1.7 kg
48116118 118 mm 3 2012 32 mm 10 mm — 98 mm — 1.79 kg
48116125 125 mm 3 2012 32 mm 10 mm — 98 mm — 2.18 kg
48116132 132 mm 3 2012 32 mm 10 mm — 98 mm — 2.6 kg
48116140 140 mm 4 2517 45 mm 3 mm 120 mm — — 9.6 kg
48116160 160 mm 4 2517 45 mm 3 mm 120 mm — — 4.37 kg
48116180 180 mm 5 2517 45 mm 1.5 mm 120 mm — — 5.97 kg
48116200 200 mm 5 2517 45 mm 1.5 mm 120 mm — — 7.75 kg
48116224 224 mm 5 2517 45 mm 1.5 mm 120 mm — — 10.1 kg
48116250 250 mm 5 2517 45 mm 1.5 mm 120 mm — — 8.2 kg

Product Information

Pitch
2.34 mm
