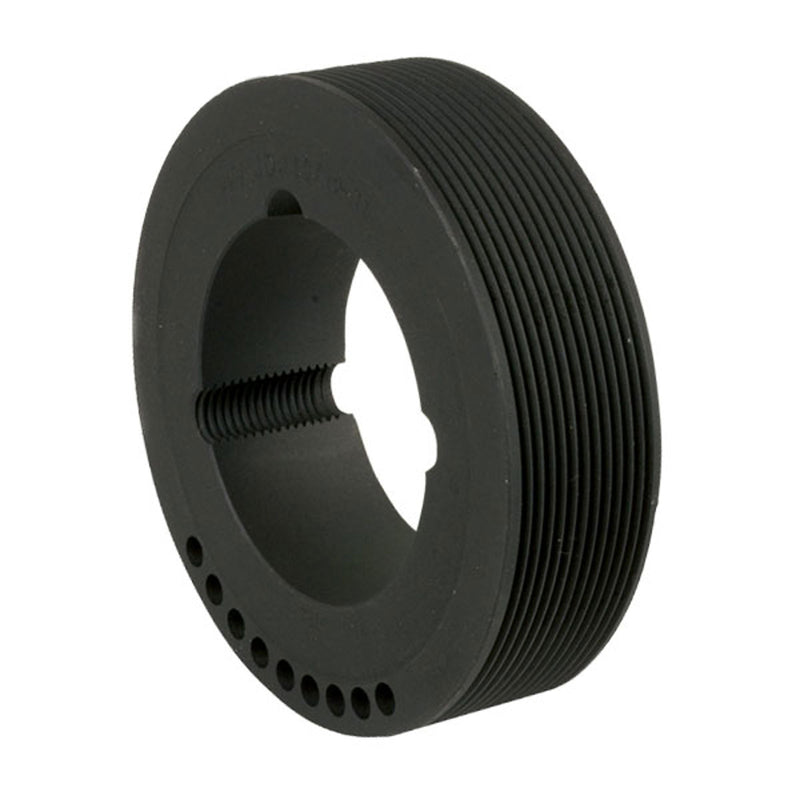

Chiaravalli V-Belt Pulley PPV-J Micro-V 8 Grooves — product photo
Chiaravalli

V-Belt Pulley PPV-J Micro-V 8 Grooves

PPV-J Micro-V pulley with 8 grooves, pitch 2.34 ± 0.025 mm, F 23 ± 0.1 mm, P 3.31 mm. Executions 1–5 as drawn; small diameters are solid with a pilot bore d, larger ones take a taper bush.

Product Configuration

Select a row to add it to your quote

Code DeExec.BushSZDmUd Weight CAD
48108040 40 mm 1 — 32 mm — — — 12 mm 0.24 kg
48108045 45 mm 1 — 32 mm — — — 12 mm 0.32 kg
48108050 50 mm 1 — 32 mm — — — 12 mm 0.4 kg
48108056 56 mm 2 1108 23 mm — — — — 0.39 kg
48108063 63 mm 2 1108 23 mm — — — — 0.5 kg
48108071 71 mm 2 1108 23 mm — — — — 0.64 kg
48108075 75 mm 2 1108 23 mm — — — — 0.72 kg
48108080 80 mm 4 1610 26 mm 3 mm 70 mm — — 0.41 kg
48108085 85 mm 4 1610 26 mm 3 mm 70 mm — — 0.51 kg
48108090 90 mm 4 1610 26 mm 3 mm 70 mm — — 0.62 kg
48108095 95 mm 4 1610 26 mm 3 mm 82 mm — — 0.78 kg
48108100 100 mm 4 1610 26 mm 3 mm 82 mm — — 0.9 kg
48108106 106 mm 4 1610 26 mm 3 mm 82 mm — — 1.05 kg
48108112 112 mm 4 1610 26 mm 3 mm 90 mm — — 1.25 kg
48108118 118 mm 4 1610 26 mm 3 mm 90 mm — — 1.43 kg
48108125 125 mm 4 1610 26 mm 3 mm 90 mm — — 1.64 kg
48108132 132 mm 4 1610 26 mm 3 mm 90 mm — — 1.88 kg
48108140 140 mm 4 1610 26 mm 3 mm 90 mm — — 1.6 kg
48108160 160 mm 5 2012 32 mm 4.5 mm 110 mm — — 3.01 kg
48108180 180 mm 5 2012 32 mm 4.5 mm 110 mm — — 3.92 kg
48108200 200 mm 5 2012 32 mm 4.5 mm 110 mm — — 4.88 kg
48108224 224 mm 5 2012 32 mm 4.5 mm 110 mm — — 6.17 kg
48108250 250 mm 5 2012 32 mm 4.5 mm 110 mm — — 7.73 kg

Product Information

Pitch
2.34 mm
