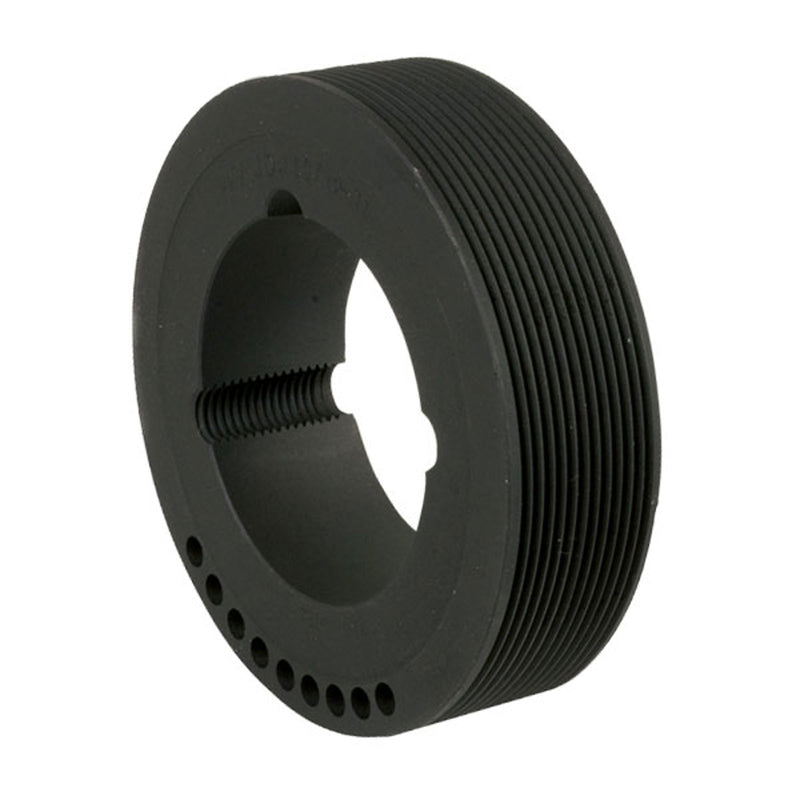

Chiaravalli V-Belt Pulley PPV-L Micro-V 12 Grooves — product photo
Chiaravalli

V-Belt Pulley PPV-L Micro-V 12 Grooves

PPV-L Micro-V pulley with 12 grooves, pitch 4.7 ± 0.05 mm, F 67 ± 0.1 mm, P 7.65 mm. Executions 1–8 as drawn; small diameters are solid with a pilot bore, larger ones take a taper bush.

Product Configuration

Select a row to add it to your quote

Code DeExec.BushSZDmU Weight CAD
48212075 75 mm 3 1215 42 mm 25 mm — 56 mm 0.97 kg
48212080 80 mm 3 1215 42 mm 25 mm — 56 mm 1.25 kg
48212085 85 mm 3 1215 42 mm 25 mm — 61 mm 1.47 kg
48212090 90 mm 3 1615 42 mm 25 mm — 66 mm 1.45 kg
48212095 95 mm 3 1615 42 mm 25 mm — 71 mm 1.71 kg
48212100 100 mm 3 2012 32 mm 35 mm — 79 mm 1.39 kg
48212106 106 mm 3 2012 32 mm 35 mm — 82 mm 1.76 kg
48212112 112 mm 3 2012 32 mm 35 mm — 88 mm 2.02 kg
48212118 118 mm 6 2517 45 mm 11 mm — 97 mm 1.96 kg
48212125 125 mm 6 2517 45 mm 11 mm — 101 mm 2.46 kg
48212132 132 mm 6 2517 45 mm 11 mm — 108 mm 2.97 kg
48212140 140 mm 6 2517 45 mm 11 mm — 116 mm 3.55 kg
48212150 150 mm 6 2517 45 mm 11 mm — 126 mm 4.3 kg
48212160 160 mm 6 2517 45 mm 11 mm — 136 mm 5.12 kg
48212170 170 mm 6 2517 45 mm 11 mm — 146 mm 6.03 kg
48212180 180 mm 7 2517 45 mm 11 mm 120 mm 156 mm 5.34 kg
48212200 200 mm 7 3020 52 mm 7.5 mm 146 mm 176 mm 6.99 kg
48212224 224 mm 7 3020 52 mm 7.5 mm 146 mm 202 mm 11.0 kg
48212250 250 mm 7 3020 52 mm 7.5 mm 146 mm 228 mm 15.6 kg
48212280 280 mm 7 3020 52 mm 7.5 mm 146 mm 256 mm 21.75 kg
48212315 315 mm 8 3535 89 mm 11 mm 178 mm 285 mm 42.64 kg

Product Information

Pitch
4.7 mm
