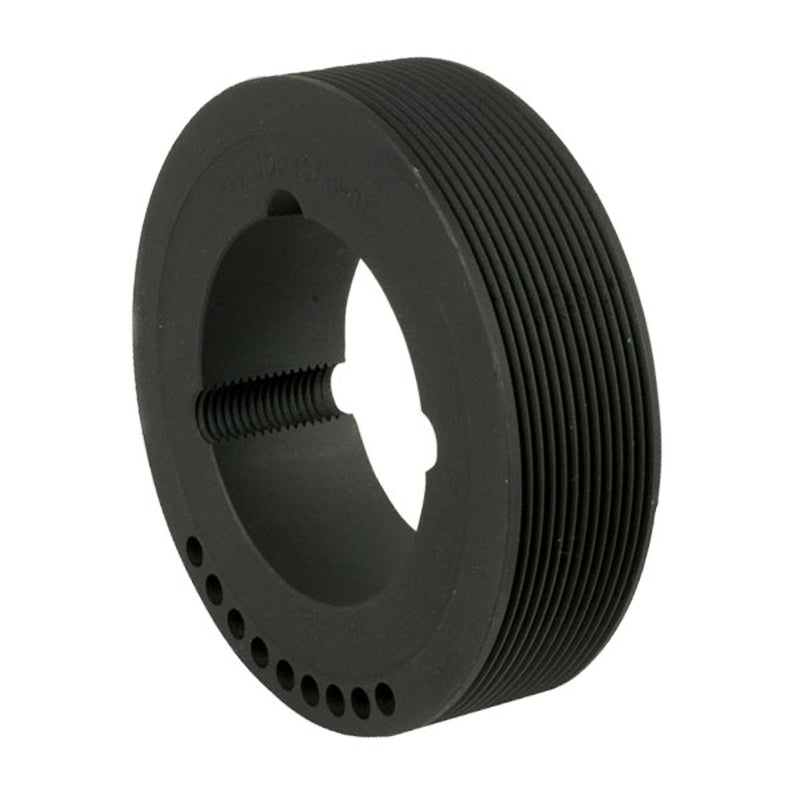

Chiaravalli V-Belt Pulley PPV-L Micro-V 16 Grooves — product photo
Chiaravalli

V-Belt Pulley PPV-L Micro-V 16 Grooves

PPV-L Micro-V pulley with 16 grooves, pitch 4.7 ± 0.05 mm, F 86 ± 0.1 mm, P 7.75 mm. Executions 1–8 as drawn; small diameters are solid with a pilot bore, larger ones take a taper bush.

Product Configuration

Select a row to add it to your quote

Code DeExec.BushSZDmU Weight CAD
48216085 85 mm 6 1215 42 mm 22 mm — 61 mm 1.76 kg
48216090 90 mm 6 1615 42 mm 22 mm — 66 mm 1.78 kg
48216095 95 mm 6 1615 42 mm 22 mm — 71 mm 2.02 kg
48216100 100 mm 6 2012 32 mm 27 mm — 79 mm 1.69 kg
48216106 106 mm 6 2012 32 mm 27 mm — 82 mm 2.12 kg
48216112 112 mm 6 2012 32 mm 27 mm — 88 mm 2.42 kg
48216118 118 mm 6 2517 45 mm 20.5 mm — 97 mm 2.31 kg
48216125 125 mm 6 2517 45 mm 20.5 mm — 101 mm 2.92 kg
48216132 132 mm 6 2517 45 mm 20.5 mm — 108 mm 3.44 kg
48216140 140 mm 6 2517 45 mm 20.5 mm — 116 mm 4.05 kg
48216150 150 mm 6 2517 45 mm 20.5 mm — 126 mm 4.85 kg
48216160 160 mm 6 3020 52 mm 17 mm — 136 mm 4.88 kg
48216170 170 mm 6 3020 52 mm 17 mm — 146 mm 5.96 kg
48216180 180 mm 6 3020 52 mm 17 mm — 156 mm 7.09 kg
48216200 200 mm 7 3020 52 mm 17 mm 146 mm 176 mm 7.92 kg
48216224 224 mm 7 3020 52 mm 17 mm 146 mm 202 mm 14.12 kg
48216250 250 mm 8 3535 89 mm 1.5 mm 178 mm 228 mm 16.13 kg
48216280 280 mm 8 3535 89 mm 1.5 mm 178 mm 256 mm 24.45 kg
48216315 315 mm 8 3535 89 mm 1.5 mm 178 mm 285 mm 35.34 kg

Product Information

Pitch
4.7 mm
