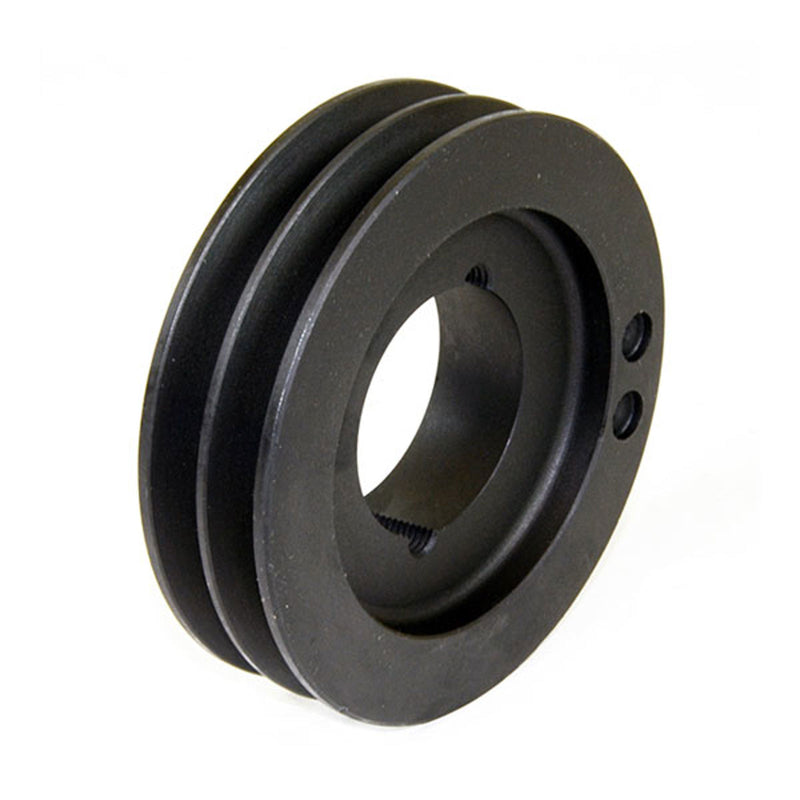

Chiaravalli V-Belt Pulley for Taper Bushes SPA 1 Groove — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPA 1 Groove

Cast-iron SPA V-belt pulley with 1 groove, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91200631 SPA63-01 63 mm 68.5 mm 1 1008 25 mm — 20 mm — — 22 mm 2 mm 56 mm 0.26 kg
91200711 SPA71-01 71 mm 76.5 mm 1 1108 28 mm — 20 mm — — 22 mm 2 mm 60 mm 0.35 kg
91200751 SPA75-01 75 mm 80.5 mm 1 1108 28 mm — 20 mm — — 22 mm 2 mm 60 mm 0.4 kg
91200801 SPA80-01 80 mm 85.5 mm 1 1210 32 mm — 20 mm — — 25 mm 5 mm 75 mm 0.46 kg
91200851 SPA85-01 85 mm 90.5 mm 1 1210 32 mm — 20 mm — — 25 mm 5 mm 80 mm 0.55 kg
91200901 SPA90-01 90 mm 95.5 mm 1 1210 42 mm — 20 mm — — 25 mm 5 mm 80 mm 0.65 kg
91200951 SPA95-01 95 mm 100.5 mm 1 1210 32 mm — 20 mm — — 25 mm 5 mm 85 mm 0.79 kg
91201001 SPA100-01 100 mm 105.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 85 mm 0.75 kg
91201061 SPA106-01 106 mm 111.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 0.92 kg
91201121 SPA112-01 112 mm 117.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 1.06 kg
91201181 SPA118-01 118 mm 123.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 1.2 kg
91201251 SPA125-01 125 mm 130.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 1.41 kg
91201321 SPA132-01 132 mm 137.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 1.6 kg
91201401 SPA140-01 140 mm 145.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 1.85 kg
91201501 SPA150-01 150 mm 155.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 2.15 kg
91201601 SPA160-01 160 mm 165.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 2.5 kg
91201701 SPA170-01 170 mm 175.5 mm 1 1610 42 mm — 20 mm — — 25 mm 5 mm 92 mm 2.85 kg
91201801 SPA180-01 180 mm 185.5 mm 4 1610 42 mm — 20 mm 145 mm — 25 mm 5 mm 92 mm 2.21 kg
91201901 SPA190-01 190 mm 195.5 mm 4 1610 42 mm — 20 mm 156 mm — 25 mm 5 mm 92 mm 2.31 kg
91202001 SPA200-01 200 mm 205.5 mm 4 2012 50 mm — 20 mm 165 mm — 32 mm 12 mm 108 mm 3.0 kg
91202121 SPA212-01 212 mm 217.5 mm 4 2012 50 mm — 20 mm 177 mm — 32 mm 12 mm 110 mm 3.1 kg
91202241 SPA224-01 224 mm 229.5 mm 4 2012 50 mm — 20 mm 189 mm — 32 mm 12 mm 112 mm 3.33 kg
91202361 SPA236-01 236 mm 241.5 mm 4 2012 50 mm — 20 mm 202 mm — 32 mm 12 mm 112 mm 3.62 kg
91202501 SPA250-01 250 mm 255.5 mm 4 2012 50 mm — 20 mm 215 mm 6 mm 32 mm 6 mm 112 mm 3.73 kg
91202801 SPA280-01 280 mm 285.5 mm 4 2012 50 mm — 20 mm 245 mm — 32 mm 12 mm 112 mm 4.08 kg
91203001 SPA300-01 300 mm 305.5 mm 4 2012 50 mm — 20 mm 265 mm — 32 mm 12 mm 112 mm 4.62 kg
91203151 SPA315-01 315 mm 320.5 mm 4 2012 50 mm — 20 mm 280 mm — 32 mm 12 mm 112 mm 4.75 kg
91203551 SPA355-01 355 mm 360.5 mm 4 2012 50 mm — 20 mm 320 mm — 32 mm 12 mm 112 mm 5.57 kg
91204001 SPA400-01 400 mm 405.5 mm 4 2012 50 mm — 20 mm 365 mm — 32 mm 12 mm 112 mm 6.4 kg
91204501 SPA450-01 450 mm 455.5 mm 4 2012 50 mm — 20 mm 415 mm — 32 mm 12 mm 112 mm 7.45 kg
91205001 SPA500-01 500 mm 505.5 mm 4 2517 60 mm — 20 mm 465 mm — 45 mm 25 mm 124 mm 9.3 kg

Product Information

Material
Cast iron
