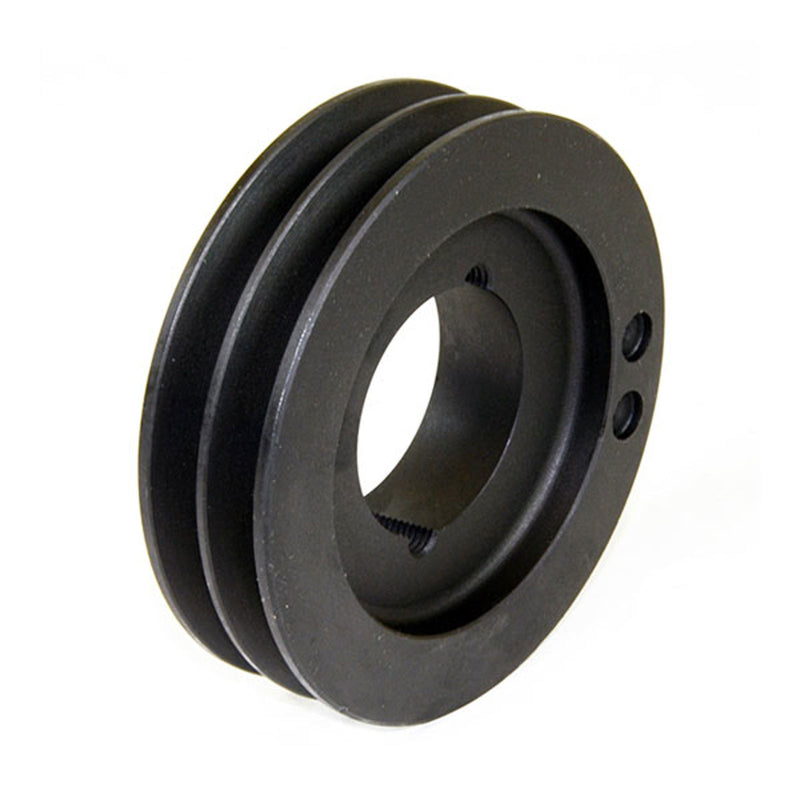

Chiaravalli V-Belt Pulley for Taper Bushes SPA 2 Grooves — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPA 2 Grooves

Cast-iron SPA V-belt pulley with 2 grooves, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91200712 SPA71-02 71 mm 76.5 mm 8 1108 28 mm — 35 mm 40 mm 13 mm 22 mm — — 0.51 kg
91200752 SPA75-02 75 mm 80.5 mm 8 1108 28 mm — 35 mm 44 mm 13 mm 22 mm — — 0.59 kg
91200802 SPA80-02 80 mm 85.5 mm 8 1210 32 mm — 35 mm 50 mm 10 mm 25 mm — — 0.55 kg
91200852 SPA85-02 85 mm 90.5 mm 8 1210 32 mm — 35 mm 55 mm 10 mm 25 mm — — 0.7 kg
91200902 SPA90-02 90 mm 95.5 mm 8 1610 42 mm — 35 mm 59 mm 10 mm 25 mm — — 0.7 kg
91200952 SPA95-02 95 mm 100.5 mm 8 1610 42 mm — 35 mm 63 mm 10 mm 25 mm — — 0.83 kg
91201002 SPA100-02 100 mm 105.5 mm 8 1610 42 mm — 35 mm 66 mm 10 mm 25 mm — — 1.0 kg
91201062 SPA106-02 106 mm 111.5 mm 8 1610 42 mm — 35 mm 72 mm 10 mm 25 mm — — 1.15 kg
91201122 SPA112-02 112 mm 117.5 mm 8 1610 42 mm — 35 mm 78 mm 10 mm 25 mm — — 1.39 kg
91201182 SPA118-02 118 mm 123.5 mm 8 1610 42 mm — 35 mm 84 mm 10 mm 25 mm — — 1.57 kg
91201252 SPA125-02 125 mm 130.5 mm 8 1610 42 mm — 35 mm 91 mm 10 mm 25 mm — — 1.85 kg
91201322 SPA132-02 132 mm 137.5 mm 8 2012 50 mm — 35 mm 98 mm 3 mm 32 mm — — 2.1 kg
91201402 SPA140-02 140 mm 145.5 mm 8 2012 50 mm — 35 mm 106 mm 3 mm 32 mm — — 2.25 kg
91201502 SPA150-02 150 mm 155.5 mm 8 2012 50 mm — 35 mm 116 mm 3 mm 32 mm — — 3.0 kg
91201602 SPA160-02 160 mm 165.5 mm 8 2012 50 mm — 35 mm 125 mm 3 mm 32 mm — — 3.5 kg
91201702 SPA170-02 170 mm 175.5 mm 8 2012 50 mm — 35 mm 135 mm 3 mm 32 mm — — 4.1 kg
91201802 SPA180-02 180 mm 185.5 mm 6 2012 50 mm 10 mm 35 mm 146 mm 1.5 mm 32 mm 1.5 mm 108 mm 3.54 kg
91201902 SPA190-02 190 mm 195.5 mm 6 2012 50 mm 10 mm 35 mm 156 mm 1.5 mm 32 mm 1.5 mm 108 mm 3.84 kg
91202002 SPA200-02 200 mm 205.5 mm 7 2517 60 mm 10 mm 35 mm 165 mm 5 mm 45 mm 5 mm 123 mm 4.7 kg
91202122 SPA212-02 212 mm 217.5 mm 4 2517 60 mm — 35 mm 177 mm 5 mm 45 mm 5 mm 123 mm 4.93 kg
91202242 SPA224-02 224 mm 229.5 mm 4 2517 60 mm — 35 mm 189 mm — 45 mm 10 mm 124 mm 5.17 kg
91202362 SPA236-02 236 mm 241.5 mm 4 2517 60 mm — 35 mm 202 mm — 45 mm 10 mm 124 mm 5.2 kg
91202502 SPA250-02 250 mm 255.5 mm 4 2517 60 mm — 35 mm 215 mm 5 mm 45 mm 5 mm 124 mm 5.82 kg
91202802 SPA280-02 280 mm 285.5 mm 4 2517 60 mm — 35 mm 245 mm — 45 mm 10 mm 124 mm 6.45 kg
91203002 SPA300-02 300 mm 305.5 mm 4 2517 60 mm — 35 mm 265 mm — 45 mm 10 mm 124 mm 6.95 kg
91203152 SPA315-02 315 mm 320.5 mm 4 2517 60 mm — 35 mm 280 mm — 45 mm 10 mm 124 mm 7.34 kg
91203552 SPA355-02 355 mm 360.5 mm 4 2517 60 mm — 35 mm 320 mm — 45 mm 10 mm 124 mm 9.36 kg
91204002 SPA400-02 400 mm 405.5 mm 4 2517 60 mm — 35 mm 365 mm — 45 mm 10 mm 124 mm 10.2 kg
91204502 SPA450-02 450 mm 455.5 mm 4 2517 60 mm — 35 mm 415 mm — 45 mm 10 mm 124 mm 11.64 kg
91205002 SPA500-02 500 mm 505.5 mm 4 2517 60 mm — 35 mm 465 mm — 45 mm 10 mm 125 mm 13.25 kg
91206302 SPA630-02 630 mm 635.5 mm 4 3020 75 mm — 35 mm 595 mm 8 mm 51 mm 8 mm 159 mm 19.1 kg

Product Information

Material
Cast iron
