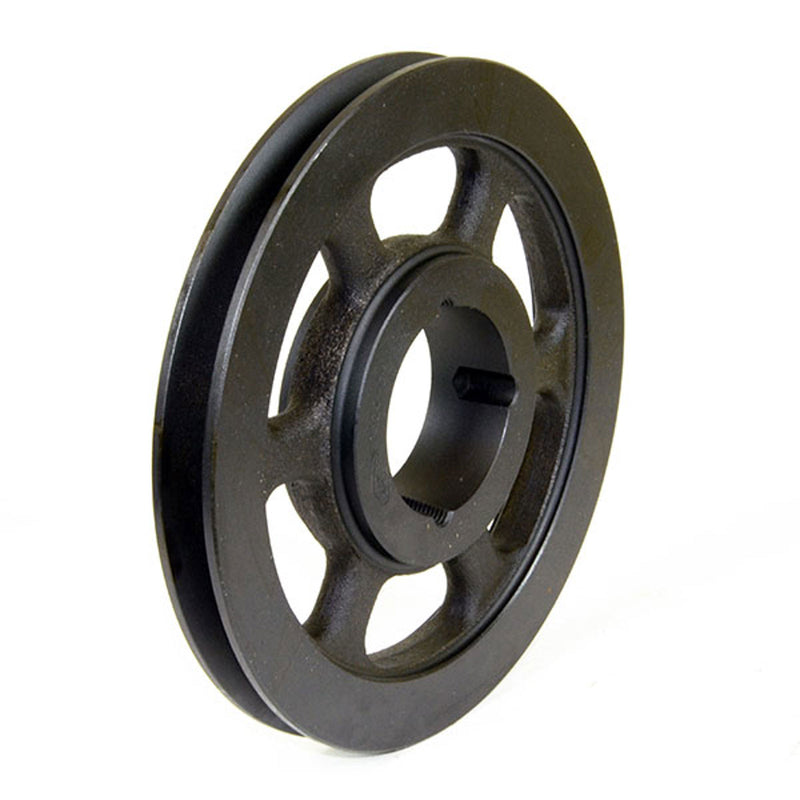

Chiaravalli V-Belt Pulley for Taper Bushes SPB 1 Groove — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPB 1 Groove

Cast-iron SPB V-belt pulley with 1 groove, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91301001 SPB100-01 100 mm 107 mm 1 1610 42 mm — 25 mm — — 25 mm — — 0.76 kg
91301061 SPB106-01 106 mm 113 mm 1 1610 42 mm — 25 mm — — 25 mm — — 0.9 kg
91301121 SPB112-01 112 mm 119 mm 1 1610 42 mm — 25 mm — — 25 mm — — 1.1 kg
91301181 SPB118-01 118 mm 125 mm 1 1610 42 mm — 25 mm — — 25 mm — — 1.25 kg
91301251 SPB125-01 125 mm 132 mm 1 1610 42 mm — 25 mm — — 25 mm — — 1.5 kg
91301321 SPB132-01 132 mm 139 mm 1 1610 42 mm — 25 mm — — 25 mm — — 1.7 kg
91301401 SPB140-01 140 mm 147 mm 1 1610 42 mm — 25 mm — — 25 mm — — 2.0 kg
91301501 SPB150-01 150 mm 157 mm 1 1610 42 mm — 25 mm — — 25 mm — — 2.4 kg
91301601 SPB160-01 160 mm 167 mm 1 1610 42 mm — 25 mm — — 25 mm — — 2.8 kg
91301701 SPB170-01 170 mm 177 mm 1 1610 42 mm — 25 mm — — 25 mm — — 3.2 kg
91301801 SPB180-01 180 mm 187 mm 6 1610 42 mm 12 mm 25 mm 132 mm — 25 mm — 90 mm 3.03 kg
91301901 SPB190-01 190 mm 197 mm 7 2012 50 mm 12 mm 25 mm 147 mm 3.5 mm 32 mm 3.5 mm 104 mm 3.45 kg
91302001 SPB200-01 200 mm 207 mm 4 2012 50 mm — 25 mm 157 mm 3.5 mm 32 mm 3.5 mm 104 mm 3.52 kg
91302121 SPB212-01 212 mm 219 mm 4 2012 50 mm — 25 mm 169 mm 3.5 mm 32 mm 3.5 mm 104 mm 3.75 kg
91302241 SPB224-01 224 mm 231 mm 4 2012 50 mm — 25 mm 181 mm 3.5 mm 32 mm 3.5 mm 104 mm 4.0 kg
91302361 SPB236-01 236 mm 243 mm 4 2012 50 mm — 25 mm 193 mm 3.5 mm 32 mm 3.5 mm 104 mm 4.1 kg
91302501 SPB250-01 250 mm 257 mm 4 2012 50 mm — 25 mm 207 mm 3.5 mm 32 mm 3.5 mm 104 mm 4.45 kg
91302801 SPB280-01 280 mm 287 mm 4 2012 50 mm — 25 mm 237 mm 3.5 mm 32 mm 3.5 mm 104 mm 5.17 kg
91303001 SPB300-01 300 mm 307 mm 4 2012 50 mm — 25 mm 258 mm 3.5 mm 32 mm 3.5 mm 104 mm 5.45 kg
91303151 SPB315-01 315 mm 322 mm 4 2012 50 mm — 25 mm 272 mm 3.5 mm 32 mm 3.5 mm 104 mm 6.05 kg

Product Information

Material
Cast iron
