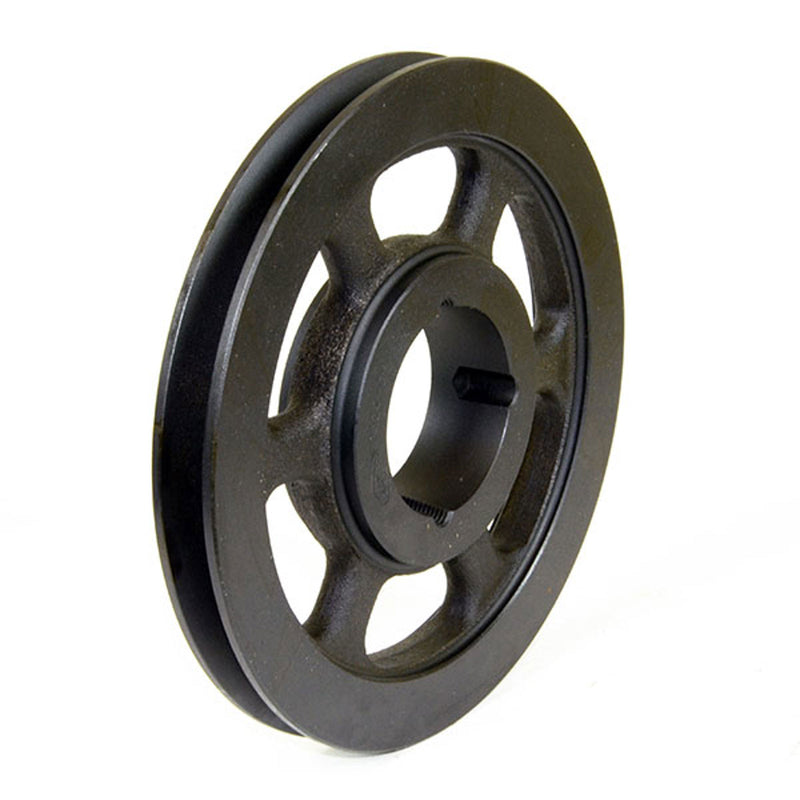

Chiaravalli V-Belt Pulley for Taper Bushes SPB 10 Grooves — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPB 10 Grooves

Cast-iron SPB V-belt pulley with 10 grooves, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91302210 SPB224-10 224 mm 231 mm 3 3535 90 mm — 196 mm 181 mm 53.5 mm 89 mm 53.5 mm — 23.1 kg —
91303510 SPB355-10 355 mm 362 mm 5 4040 100 mm — 196 mm 312 mm 47 mm 102 mm 47 mm 210 mm 43.0 kg —
91307010 SPB710-10 710 mm 717 mm 5 4545 110 mm — 196 mm 664 mm 41 mm 114 mm 41 mm 242 mm 95.7 kg —
91308010 SPB800-10 800 mm 807 mm 5 4545 110 mm — 196 mm 754 mm 41 mm 114 mm 41 mm 242 mm 112.0 kg
91310010 SPB1000-10 1000 mm 1007 mm 5 5050 125 mm — 196 mm 954 mm 34.5 mm 127 mm 34.5 mm 267 mm 150.0 kg
91312510 SPB1250-10 1250 mm 1257 mm 5 5050 125 mm — 196 mm 1204 mm 34.5 mm 127 mm 34.5 mm 267 mm 201.0 kg

Product Information

Material
Cast iron
