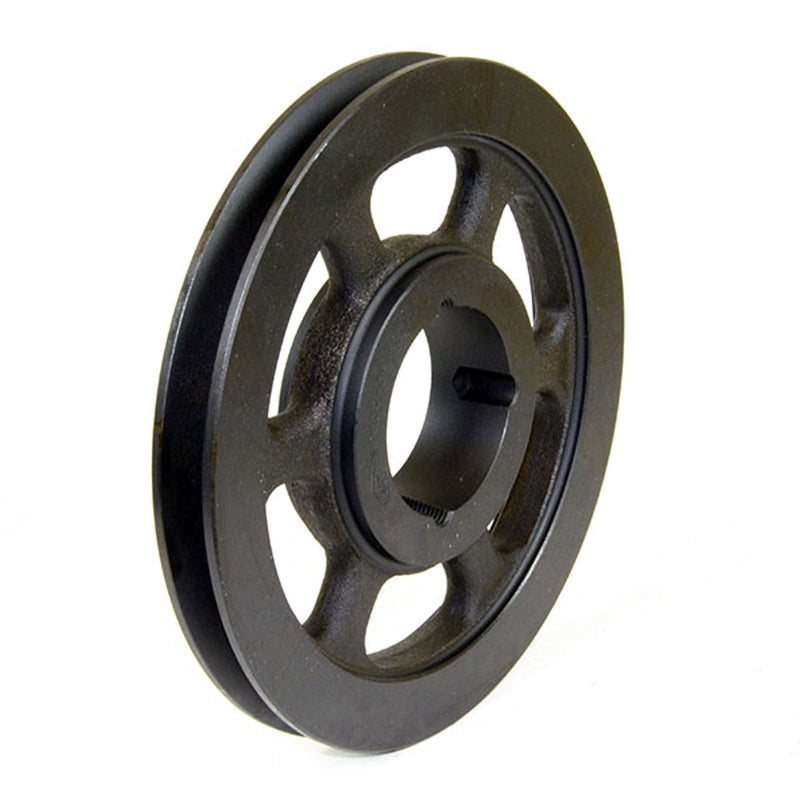

Chiaravalli V-Belt Pulley for Taper Bushes SPB 2 Grooves — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPB 2 Grooves

Cast-iron SPB V-belt pulley with 2 grooves, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91301002 SPB100-02 100 mm 107 mm 8 1610 42 mm — 44 mm 62 mm 19 mm 25 mm — — 1.16 kg
91301062 SPB106-02 106 mm 113 mm 8 1610 42 mm — 44 mm 67 mm 19 mm 25 mm — — 1.35 kg
91301122 SPB112-02 112 mm 119 mm 8 1610 42 mm — 44 mm 72 mm 19 mm 25 mm — — 1.6 kg
91301182 SPB118-02 118 mm 125 mm 2 1610 42 mm — 44 mm 78 mm — 25 mm 19 mm — 1.83 kg
91301252 SPB125-02 125 mm 132 mm 2 2012 50 mm — 44 mm 82 mm — 32 mm 12 mm — 2.2 kg
91301322 SPB132-02 132 mm 139 mm 2 2012 50 mm — 44 mm 89 mm — 32 mm 12 mm — 2.33 kg
91301402 SPB140-02 140 mm 147 mm 2 2012 50 mm — 44 mm 97 mm — 32 mm 12 mm — 2.71 kg
91301502 SPB150-02 150 mm 157 mm 2 2012 50 mm — 44 mm 107 mm — 32 mm 12 mm — 3.25 kg
91301602 SPB160-02 160 mm 167 mm 2 2012 50 mm — 44 mm 117 mm — 32 mm 12 mm — 3.8 kg
91301702 SPB170-02 170 mm 177 mm 2 2012 50 mm — 44 mm 127 mm — 32 mm 12 mm — 4.4 kg
91301802 SPB180-02 180 mm 187 mm 1 2517 60 mm — 44 mm — — 45 mm 1 mm 120 mm 5.45 kg
91301902 SPB190-02 190 mm 197 mm 1 2517 60 mm — 44 mm — — 45 mm 1 mm 120 mm 6.3 kg
91302002 SPB200-02 200 mm 207 mm 1 2517 60 mm — 44 mm — — 45 mm 1 mm 117 mm 7.3 kg
91302122 SPB212-02 212 mm 219 mm 7 2517 60 mm 15 mm 44 mm 169 mm — 45 mm 1 mm 117 mm 6.05 kg
91302242 SPB224-02 224 mm 231 mm 4 2517 60 mm — 44 mm 181 mm — 45 mm 1 mm 117 mm 5.84 kg
91302362 SPB236-02 236 mm 243 mm 4 2517 60 mm — 44 mm 193 mm — 45 mm 1 mm 117 mm 6.28 kg
91302502 SPB250-02 250 mm 257 mm 4 2517 60 mm — 44 mm 207 mm — 45 mm 1 mm 125 mm 7.0 kg
91302802 SPB280-02 280 mm 287 mm 4 2517 60 mm — 44 mm 237 mm — 45 mm 1 mm 125 mm 8.06 kg
91303002 SPB300-02 300 mm 307 mm 4 2517 60 mm — 44 mm 257 mm — 45 mm 1 mm 125 mm 8.67 kg
91303152 SPB315-02 315 mm 322 mm 4 2517 60 mm — 44 mm 272 mm — 45 mm 1 mm 125 mm 9.15 kg
91303352 SPB335-02 335 mm 342 mm 4 2517 60 mm — 44 mm 292 mm — 45 mm 1 mm 125 mm 9.82 kg
91303552 SPB355-02 355 mm 362 mm 4 3020 75 mm — 44 mm 312 mm 3.5 mm 51 mm 3.5 mm 144 mm 10.98 kg
91304002 SPB400-02 400 mm 407 mm 4 3020 75 mm — 44 mm 357 mm 3.5 mm 51 mm 3.5 mm 150 mm 13.6 kg
91304502 SPB450-02 450 mm 457 mm 4 3020 75 mm — 44 mm 407 mm 3.5 mm 51 mm 3.5 mm 150 mm 15.2 kg
91305002 SPB500-02 500 mm 507 mm 4 3020 75 mm — 44 mm 457 mm 3.5 mm 51 mm 3.5 mm 150 mm 17.14 kg
91305602 SPB560-02 560 mm 567 mm 4 3030 75 mm — 44 mm 517 mm 4 mm 76 mm 28 mm 150 mm 21.55 kg

Product Information

Material
Cast iron
