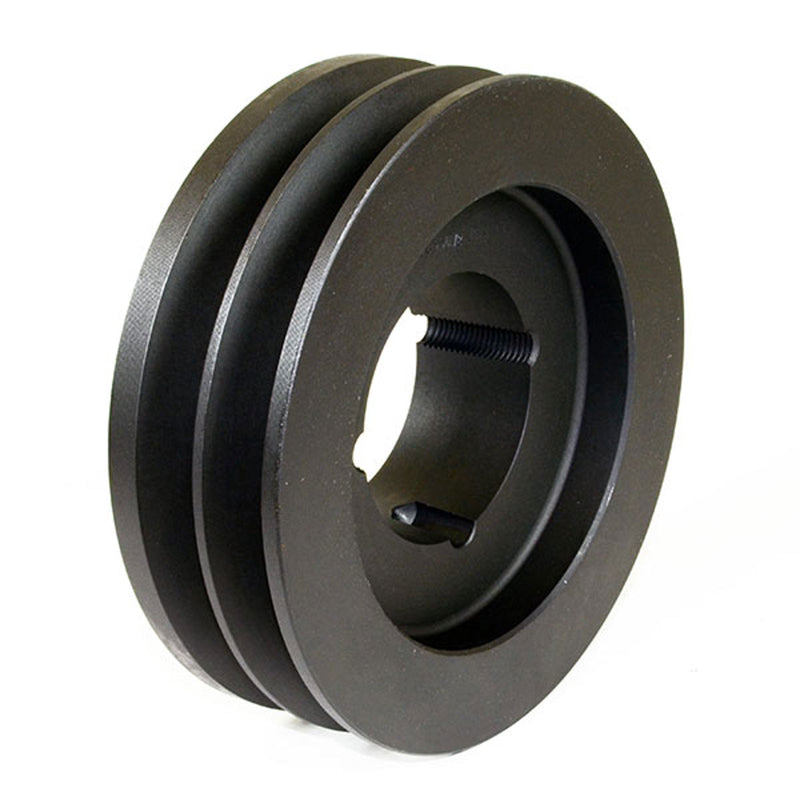

Chiaravalli V-Belt Pulley for Taper Bushes SPC 2 Grooves — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPC 2 Grooves

Cast-iron SPC V-belt pulley with 2 grooves, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91402002 SPC200-02 200 mm 209.6 mm 2 2517 60 mm — 59.5 mm 144 mm — 45 mm 14.5 mm — 8.23 kg
91402242 SPC224-02 224 mm 233.6 mm 2 3020 75 mm — 59.5 mm 168 mm — 51 mm 8.5 mm — 10.3 kg
91402502 SPC250-02 250 mm 259.6 mm 2 3020 75 mm — 59.5 mm 194 mm — 51 mm 8.5 mm — 13.75 kg
91402802 SPC280-02 280 mm 289.6 mm 2 3020 75 mm — 59.5 mm 224 mm — 51 mm 8.5 mm — 21.26 kg
91403002 SPC300-02 300 mm 309.6 mm 5 3020 75 mm — 59.5 mm 244 mm 4.25 mm 51 mm 4.25 mm 144 mm 12.9 kg
91403152 SPC315-02 315 mm 324.6 mm 5 3020 75 mm — 59.5 mm 259 mm 4.25 mm 51 mm 4.25 mm 144 mm 13.5 kg
91403352 SPC335-02 335 mm 344.6 mm 5 3020 75 mm — 59.5 mm 279 mm 4.25 mm 51 mm 4.25 mm 144 mm 15.42 kg
91403552 SPC355-02 355 mm 364.6 mm 4 3535 90 mm — 59.5 mm 299 mm 14.75 mm 89 mm 14.75 mm 175 mm 23.0 kg
91404002 SPC400-02 400 mm 409.6 mm 4 3535 90 mm — 59.5 mm 344 mm 14.75 mm 89 mm 14.75 mm 175 mm 25.0 kg
91404502 SPC450-02 450 mm 459.6 mm 4 3535 90 mm — 59.5 mm 394 mm 14.75 mm 89 mm 14.75 mm 175 mm 27.0 kg

Product Information

Material
Cast iron
