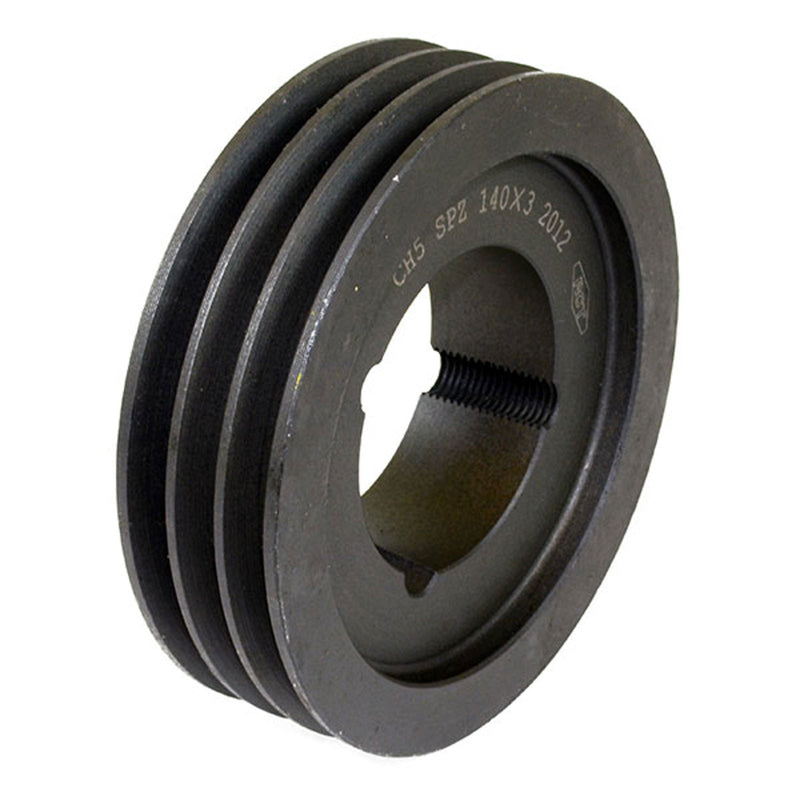

Chiaravalli V-Belt Pulley for Taper Bushes SPZ 3 Grooves — product photo
Chiaravalli

V-Belt Pulley for Taper Bushes SPZ 3 Grooves

Cast-iron SPZ V-belt pulley with 3 grooves, machined to take a Taper-Lock® bush (bush size and maximum bore per diameter in the table). Type is the hub form shown in the drawing.

Product Configuration

Select a row to add it to your quote

Code ModelPOTypeBushMax boreEFJKLMN Weight CAD
91100633 SPZ63-03 63 mm 67 mm 8 1108 28 mm — 40 mm 40 mm 18 mm 22 mm — — 0.41 kg
91100673 SPZ67-03 67 mm 71 mm 8 1108 28 mm — 40 mm 42 mm 18 mm 22 mm — — 0.5 kg
91100713 SPZ71-03 71 mm 75 mm 8 1108 28 mm — 40 mm 42 mm 18 mm 22 mm — — 0.53 kg
91100753 SPZ75-03 75 mm 79 mm 8 1210 32 mm — 40 mm 51 mm 15 mm 25 mm — — 0.56 kg
91100803 SPZ80-03 80 mm 84 mm 8 1210 32 mm — 40 mm 51 mm 15 mm 25 mm — — 0.7 kg
91100853 SPZ85-03 85 mm 89 mm 8 1610 42 mm — 40 mm 60 mm 15 mm 25 mm — — 0.65 kg
91100903 SPZ90-03 90 mm 94 mm 8 1610 42 mm — 40 mm 61 mm 15 mm 25 mm — — 0.84 kg
91100953 SPZ95-03 95 mm 99 mm 8 1610 42 mm — 40 mm 66 mm 15 mm 25 mm — — 0.99 kg
91101003 SPZ100-03 100 mm 104 mm 8 1610 42 mm — 40 mm 71 mm 15 mm 25 mm — — 1.12 kg
91101063 SPZ106-03 106 mm 110 mm 8 1610 42 mm — 40 mm 76 mm 15 mm 25 mm — — 1.35 kg
91101123 SPZ112-03 112 mm 116 mm 8 2012 50 mm — 40 mm 83 mm 8 mm 32 mm — — 1.37 kg
91101183 SPZ118-03 118 mm 122 mm 8 2012 50 mm — 40 mm 90 mm 8 mm 32 mm — — 1.65 kg
91101253 SPZ125-03 125 mm 129 mm 2 2012 50 mm — 40 mm 96 mm — 32 mm 8 mm — 1.9 kg
91101323 SPZ132-03 132 mm 136 mm 2 2012 50 mm — 40 mm 103 mm — 32 mm 8 mm — 2.27 kg
91101403 SPZ140-03 140 mm 144 mm 2 2012 50 mm — 40 mm 111 mm — 32 mm 8 mm — 2.7 kg
91101503 SPZ150-03 150 mm 154 mm 2 2012 50 mm — 40 mm 121 mm — 32 mm 8 mm — 3.16 kg
91101603 SPZ160-03 160 mm 164 mm 2 2012 50 mm — 40 mm 131 mm — 32 mm 8 mm — 3.77 kg
91101803 SPZ180-03 180 mm 184 mm 6 2012 50 mm 7 mm 40 mm 151 mm — 32 mm 8 mm 106 mm 3.36 kg
91101903 SPZ190-03 190 mm 194 mm 6 2012 50 mm 10 mm 40 mm 161 mm 4 mm 32 mm 4 mm 112 mm 3.95 kg
91102003 SPZ200-03 200 mm 204 mm 5 2012 50 mm — 40 mm 171 mm 4 mm 32 mm 4 mm 112 mm 4.15 kg
91102243 SPZ224-03 224 mm 228 mm 5 2012 50 mm — 40 mm 195 mm 4 mm 32 mm 4 mm 112 mm 4.68 kg
91102503 SPZ250-03 250 mm 254 mm 5 2012 60 mm — 40 mm 221 mm 4 mm 32 mm 4 mm 112 mm 5.35 kg
91102803 SPZ280-03 280 mm 284 mm 4 2517 60 mm — 40 mm 251 mm 2.5 mm 45 mm 2.5 mm 124 mm 6.53 kg
91103153 SPZ315-03 315 mm 319 mm 4 2517 60 mm — 40 mm 286 mm 2.5 mm 45 mm 2.5 mm 124 mm 7.3 kg
91103553 SPZ355-03 355 mm 359 mm 4 2517 60 mm — 40 mm 326 mm 2.5 mm 45 mm 2.5 mm 124 mm 8.86 kg
91104003 SPZ400-03 400 mm 404 mm 4 2517 60 mm — 40 mm 371 mm 2.5 mm 45 mm 2.5 mm 124 mm 10.5 kg
91104503 SPZ450-03 450 mm 454 mm 4 2517 60 mm — 40 mm 421 mm 2.5 mm 45 mm 2.5 mm 124 mm 11.6 kg
91105003 SPZ500-03 500 mm 504 mm 4 2517 60 mm — 40 mm 471 mm 2.5 mm 45 mm 2.5 mm 124 mm 13.3 kg

Product Information

Material
Cast iron
