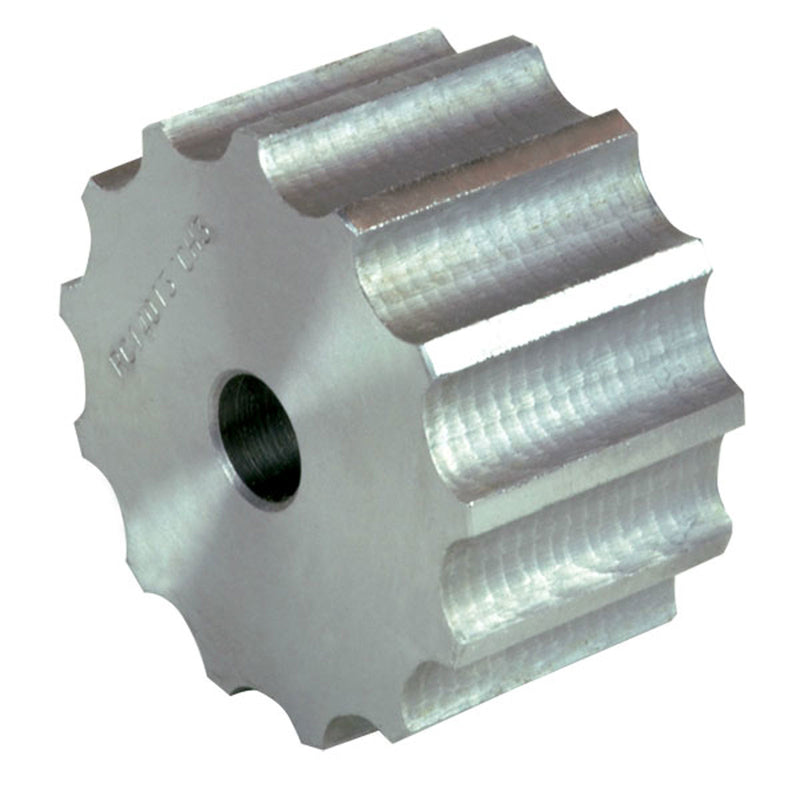

Wheel for Table-Top Chains P 1″ 1/2 (DIN 8153)

Name: Chiaravalli Wheel for Table-Top Chains P 1″ 1/2 (DIN 8153)
Brand: Chiaravalli

Wheel for 1″ 1/2 pitch table-top chains in compliance with DIN 8153.

Select a row to add it to your quote

Teeth

Code	Z	de	D1	L	Weight
`30038013`	`13`	`78.98` mm	`15` mm	`43.5` mm	`1.86` kg
`30038015`	`15`	`93.67` mm	`15` mm	`43.5` mm	`1.86` kg
`30038017`	`17`	`105.47` mm	`20` mm	`43.5` mm	`2.34` kg
`30038019`	`19`	`117.34` mm	`20` mm	`43.5` mm	`3.1` kg
`30038021`	`21`	`129.26` mm	`20` mm	`43.5` mm	`3.7` kg
`30038023`	`23`	`141.22` mm	`20` mm	`43.5` mm	`4.46` kg
`30038025`	`25`	`153.21` mm	`20` mm	`43.5` mm	`5.5` kg
`30038027`	`27`	`165.2` mm	`20` mm	`43.5` mm	`6.31` kg
`30038029`	`29`	`177.24` mm	`20` mm	`43.5` mm	`7.31` kg
`30038031`	`31`	`189.28` mm	`20` mm	`43.5` mm	`8.63` kg
