XRC Nickel-Plated Roller Chain NP08B-1 Simplex
Simplex XRC® nickel-plated roller chain NP08B-1 to ISO 606 - DIN 8187. Package of 5 m.
Connection links are not included in the chain package — order the coupling / offset link alongside.
- Certified quality — complies with and exceeds ISO 606 standards, validated through rigorous tensile tests.
- Shot-peened plates — enhances mechanical strength and fatigue resistance.
- Solid extruded and shot-peened rollers — avoids structural imperfections for superior impact resistance.
- Standard pre-tensioning — factory pre-tensioning exceeding the ISO 606 breaking-load standard minimises elongation in operation.
- High-quality lubrication — fully lubricated with Fuchs oil.
- Traceable batches — every production batch is traceable, with material certificates available.
Product Configuration
Select a row to add it to your quote

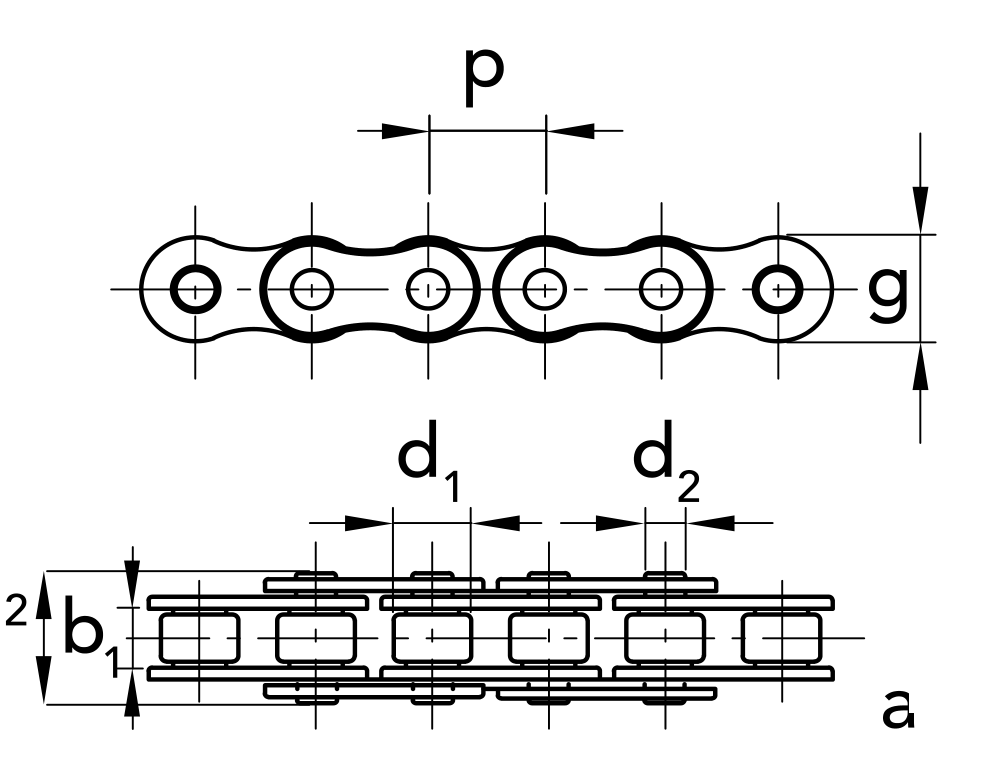

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
73112007X |
Chain
|
12.7 mm
|
1/2"
|
7.75 mm
|
4.45 mm
|
8.51 mm
|
17 mm
|
11.81 mm
|
0.5 cm²
|
18 kN
|
0.68 kg/m
|
73112057X |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
73112087X |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
NP08B-1- Chain Type
- XRC® eXtra performance roller chain — nickel plated
- Packaging
- Package of 5 m — connection links not included
- Material
- Nickel-plated
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
