Chiaravalli
XRC Nickel-Plated Roller Chain NP16B-2 Duplex
Duplex XRC® nickel-plated roller chain NP16B-2 to ISO 606 - DIN 8187. Package of 5 m.
Connection links are not included in the chain package — order the coupling / offset link alongside.
- Certified quality — complies with and exceeds ISO 606 standards, validated through rigorous tensile tests.
- Shot-peened plates — enhances mechanical strength and fatigue resistance.
- Solid extruded and shot-peened rollers — avoids structural imperfections for superior impact resistance.
- Standard pre-tensioning — factory pre-tensioning exceeding the ISO 606 breaking-load standard minimises elongation in operation.
- High-quality lubrication — fully lubricated with Fuchs oil.
- Traceable batches — every production batch is traceable, with material certificates available.
Product Configuration
Select a row to add it to your quote

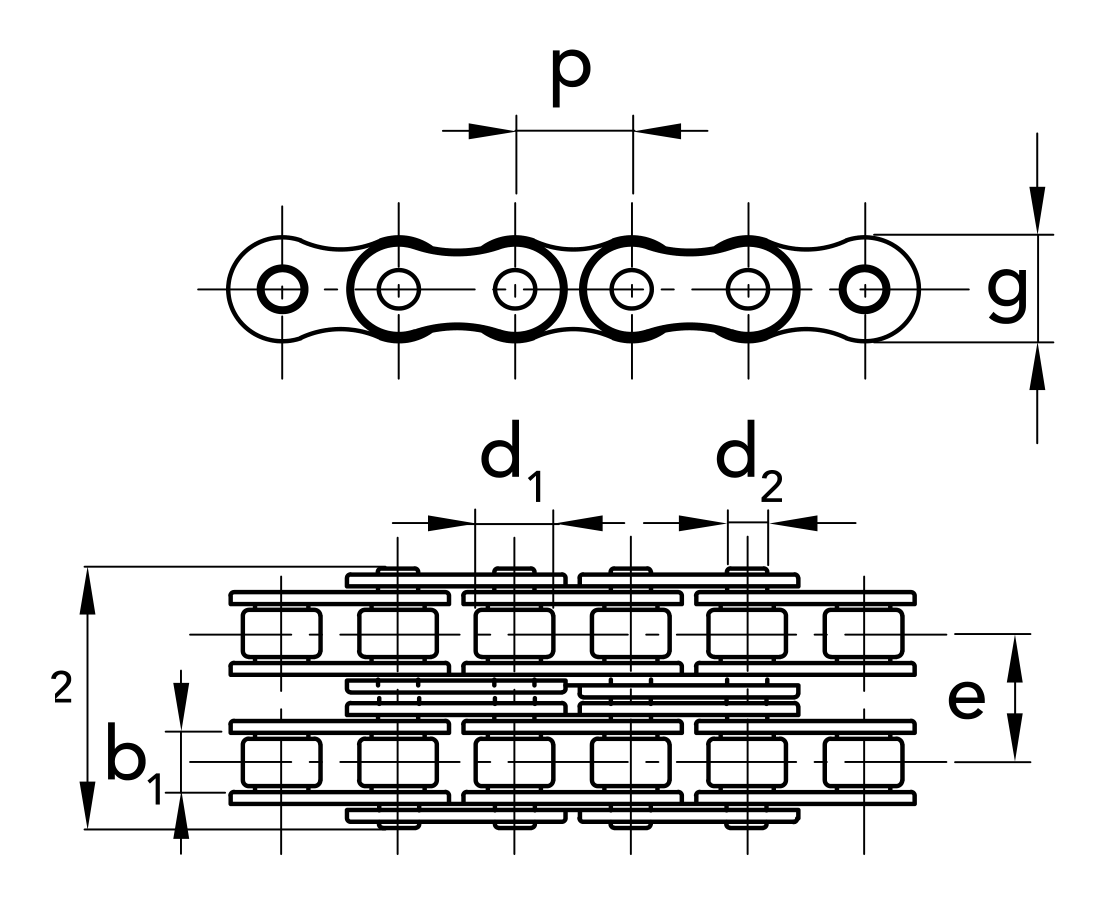

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
73225007X |
Chain
|
25.4 mm
|
1"
|
17.02 mm
|
8.27 mm
|
15.88 mm
|
68 mm
|
21 mm
|
31.88 mm
|
4.14 cm²
|
106 kN
|
5.03 kg/m
|
73225057X |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
73225087X |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
NP16B-2- Chain Type
- XRC® eXtra performance roller chain — nickel plated
- Packaging
- Package of 5 m — connection links not included
- Material
- Nickel-plated
