Chiaravalli
XRC Roller Chain 05B-2 Duplex
Duplex XRC® eXtra performance roller chain 05B-2 to ISO 606 - DIN 8187, pre-lubricated and pre-tensioned above the ISO 606 requirement. Packages of 2.5 m and 5 m.
Connection links are not included in the chain package — order the coupling / offset link alongside.
- Certified quality — complies with and exceeds ISO 606 standards, validated through rigorous tensile tests.
- Shot-peened plates — enhances mechanical strength and fatigue resistance.
- Solid extruded and shot-peened rollers — avoids structural imperfections for superior impact resistance.
- Standard pre-tensioning — factory pre-tensioning exceeding the ISO 606 breaking-load standard minimises elongation in operation.
- High-quality lubrication — fully lubricated with Fuchs oil.
- Traceable batches — every production batch is traceable, with material certificates available.
Product Configuration
Select a row to add it to your quote

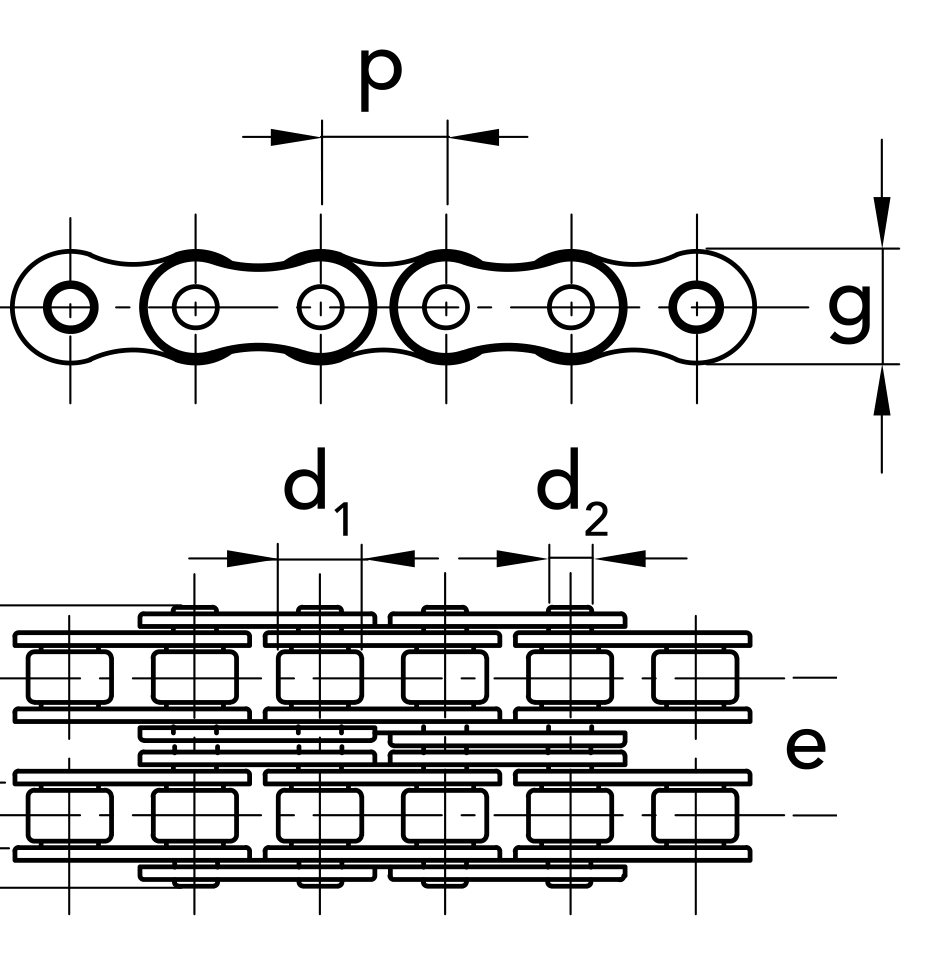

| Code | Item | p | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
70208007X |
Chain
|
8 mm
|
3 mm
|
2.31 mm
|
5 mm
|
14.3 mm
|
7.1 mm
|
5.64 mm
|
0.22 cm²
|
7.8 kN
|
0.32 kg/m
|
70208057X |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
70208087X |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
05B-2- Chain Type
- XRC® eXtra performance roller chain — ISO standard
- Packaging
- Packages of 2.5 m and 5 m — connection links not included
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
