Chiaravalli
XRC Roller Chain ASA 120-1 Simplex
Simplex XRC® American series "ANSI" ASA roller chain 120-1, pre-lubricated and pre-tensioned above the ISO 606 requirement. Packages of 2.5 m and 5 m.
Connection links are not included in the chain package — order the coupling / offset link alongside.
- Certified quality — complies with and exceeds ISO 606 standards, validated through rigorous tensile tests.
- Shot-peened plates — enhances mechanical strength and fatigue resistance.
- Solid extruded and shot-peened rollers — avoids structural imperfections for superior impact resistance.
- Standard pre-tensioning — factory pre-tensioning exceeding the ISO 606 breaking-load standard minimises elongation in operation.
- High-quality lubrication — fully lubricated with Fuchs oil.
- Traceable batches — every production batch is traceable, with material certificates available.
Product Configuration
Select a row to add it to your quote

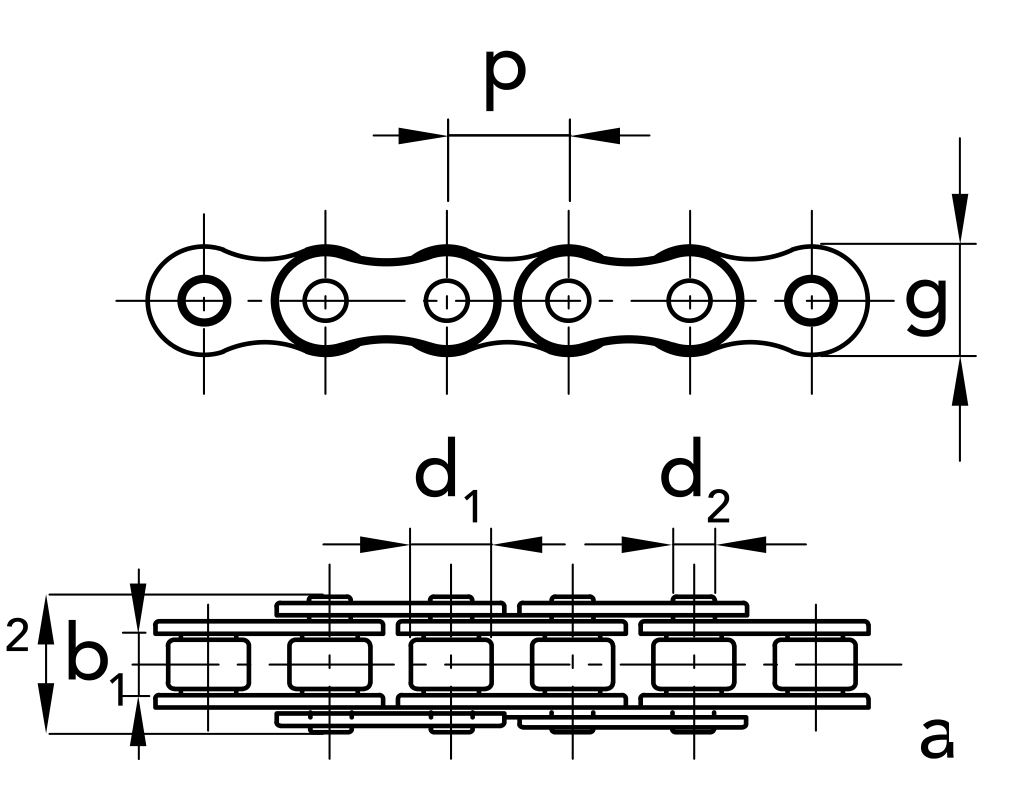

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g IP max | g OP max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71112007X |
Chain
|
38.1 mm
|
1 1/2"
|
25.22 mm
|
11.1 mm
|
22.23 mm
|
50.8 mm
|
36.2 mm
|
31.2 mm
|
3.9 cm²
|
127 kN
|
5.61 kg/m
|
71112157X |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71112087X |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
120-1- Chain Type
- XRC® eXtra performance roller chain — "ANSI" ASA
- Packaging
- Packages of 2.5 m and 5 m — connection links not included
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
