XRC Roller Chain ASA 60H-1 Reinforced
Reinforced simplex XRC® American series ASA roller chain 60H-1. Packages of 2.5 m and 5 m.
Connection links are not included in the chain package — order the coupling / offset link alongside.
- Certified quality — complies with and exceeds ISO 606 standards, validated through rigorous tensile tests.
- Shot-peened plates — enhances mechanical strength and fatigue resistance.
- Solid extruded and shot-peened rollers — avoids structural imperfections for superior impact resistance.
- Standard pre-tensioning — factory pre-tensioning exceeding the ISO 606 breaking-load standard minimises elongation in operation.
- High-quality lubrication — fully lubricated with Fuchs oil.
- Traceable batches — every production batch is traceable, with material certificates available.
Product Configuration
Select a row to add it to your quote

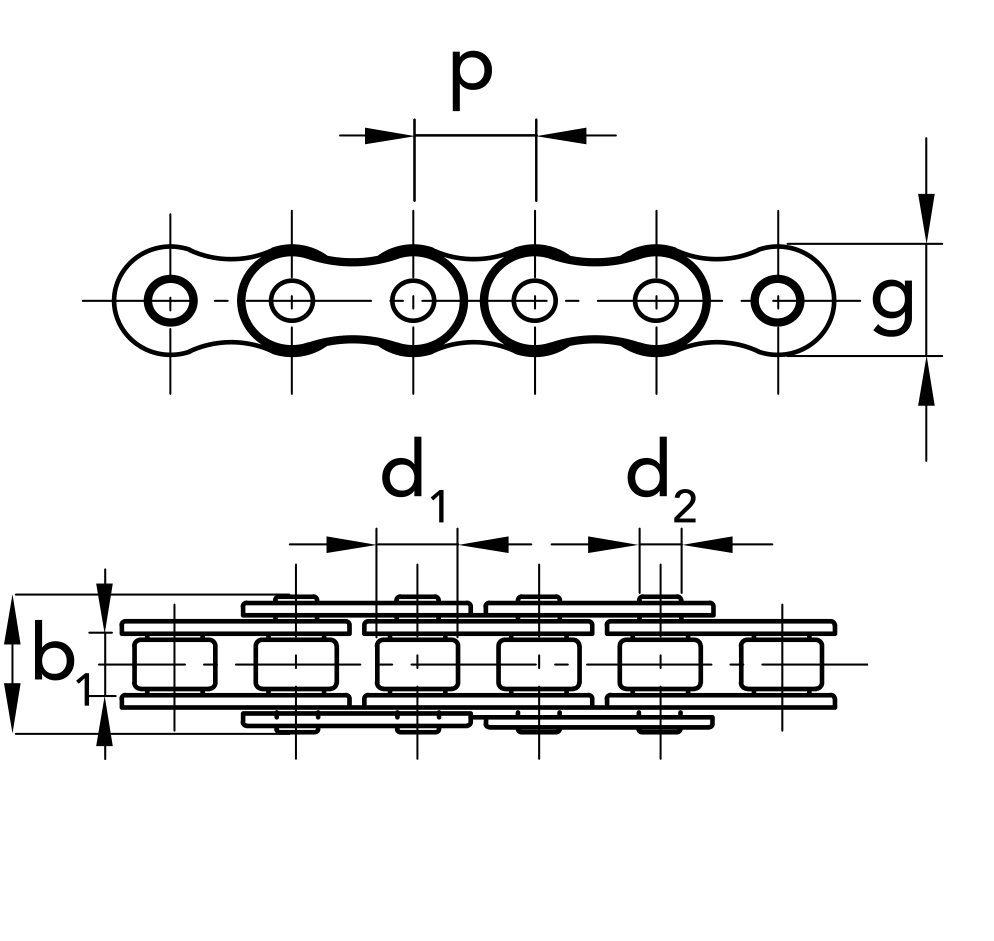

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g IP max | g OP max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
72906007X |
Chain
|
19.05 mm
|
3/4"
|
12.58 mm
|
5.94 mm
|
11.91 mm
|
31.2 mm
|
18 mm
|
16.6 mm
|
1.14 cm²
|
31.27 kN
|
1.81 kg/m
|
72906057X |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
72906087X |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
60H-1- Chain Type
- XRC® eXtra performance roller chain — ASA simple reinforced
- Packaging
- Packages of 2.5 m and 5 m — connection links not included
