XRC Stainless Roller Chain SS06B-1 Simplex

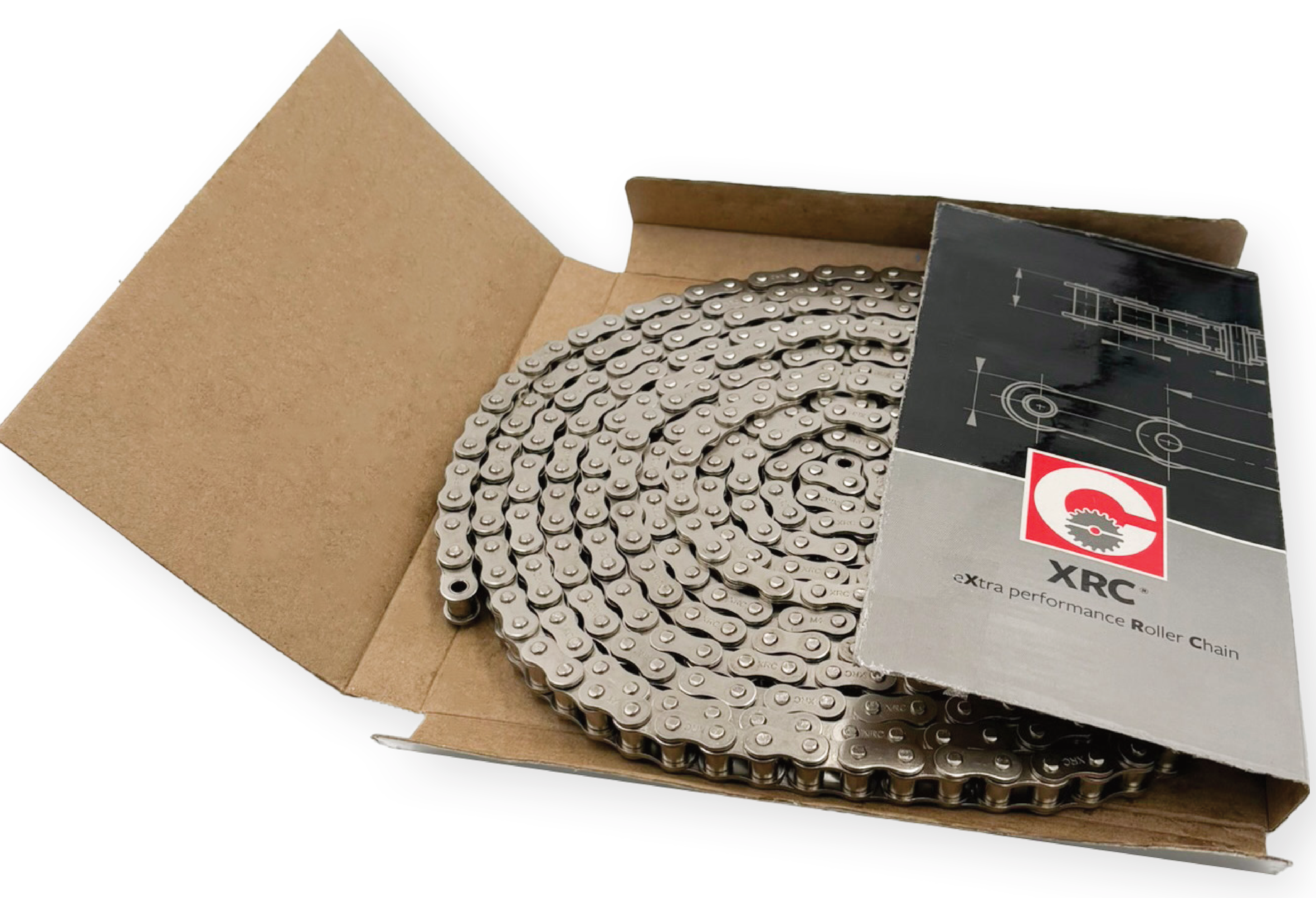

Simplex XRC® stainless steel AISI 304 roller chain SS06B-1 with solid rollers, to ISO 606 - DIN 8187. Package of 5 m.
Connection links are not included in the chain package — order the coupling / offset link alongside.
- Certified quality — complies with and exceeds ISO 606 standards, validated through rigorous tensile tests.
- Shot-peened plates — enhances mechanical strength and fatigue resistance.
- Solid extruded and shot-peened rollers — avoids structural imperfections for superior impact resistance.
- Standard pre-tensioning — factory pre-tensioning exceeding the ISO 606 breaking-load standard minimises elongation in operation.
- High-quality lubrication — fully lubricated with Fuchs oil.
- Traceable batches — every production batch is traceable, with material certificates available.
Product Configuration
Select a row to add it to your quote

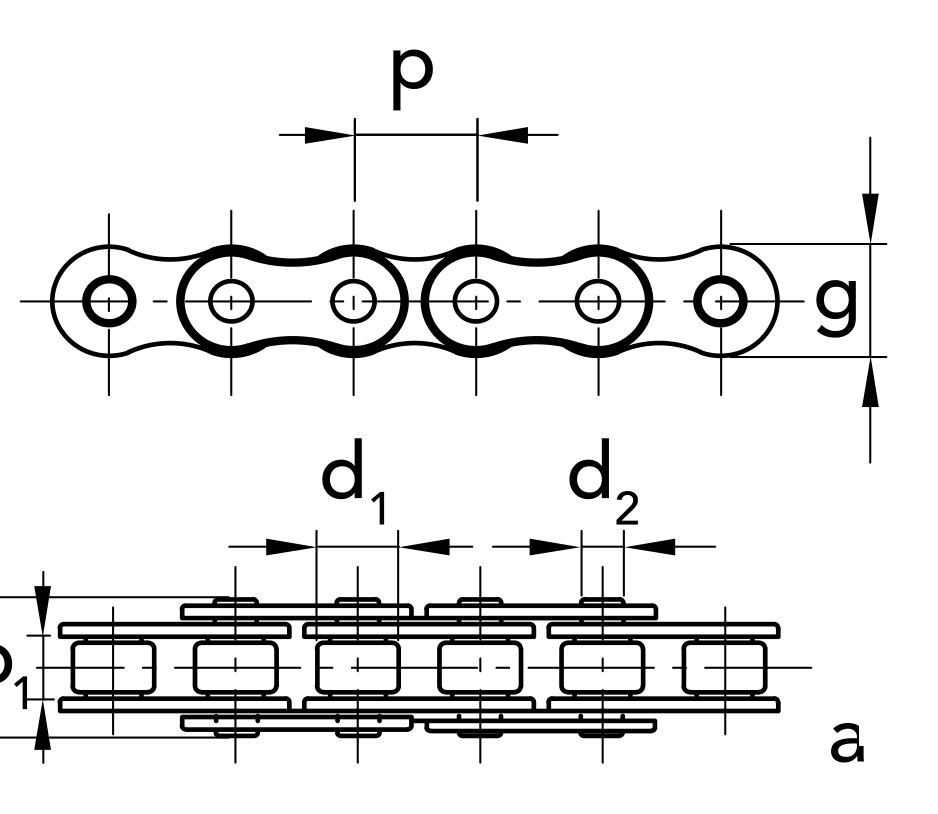

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
74109007X |
Chain
|
9.53 mm
|
3/8"
|
5.72 mm
|
3.28 mm
|
6.35 mm
|
13.5 mm
|
8.2 mm
|
0.28 cm²
|
6.65 kN
|
0.4 kg/m
|
74109057X |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
74109087X |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
SS06B-1- Chain Type
- XRC® eXtra performance roller chain — stainless steel AISI 304
- Packaging
- Package of 5 m — connection links not included
- Material
- Stainless steel AISI 304
